| Tractor PTO HP |
45-200 |
|---|---|
| Hitch Type |
Swivel clevis |
| Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
3 |
| Cutting Width (in) |
126 |
| Blade Tip Speed (fpm) |
15,000 at 540 rpm; 16,000 at 1,000 rpm |
| Weight (lbs) |
4,040 |
| Deck Thickness (in) |
.135 (10 ga) |
| Side Skirt Thickness (in) |
0.25 |
| Side Skirt Depth (in) |
13 |
| Transport Width (in) |
93 |
| Wing Flex Up/Down (degrees) |
90 up, 22 down |
| Driveline Rating |
CAT 6 CV, CAT 4 wing |
| Splitter/Wing Gearbox Rating (hp) |
210 / 200 *Gearbox horsepower ratings listed are based on field testing. |
| Output Shaft Diameter (in) |
2 |
| Tongue Weight (lbs) |
1,150 |
| Wheel Options |
15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft |
| Gearbox Warranty (yrs) |
10 |
| Options |
Double row chain shielding; dual wheels; LED lights |
| Suspension |
Single spring on center wheel yoke |
| Blade Overlap (in) |
6 |
| Blade Dimensions (in) |
.5 x 4 |
| Cutting Area Shielding |
Standard chain shielding |

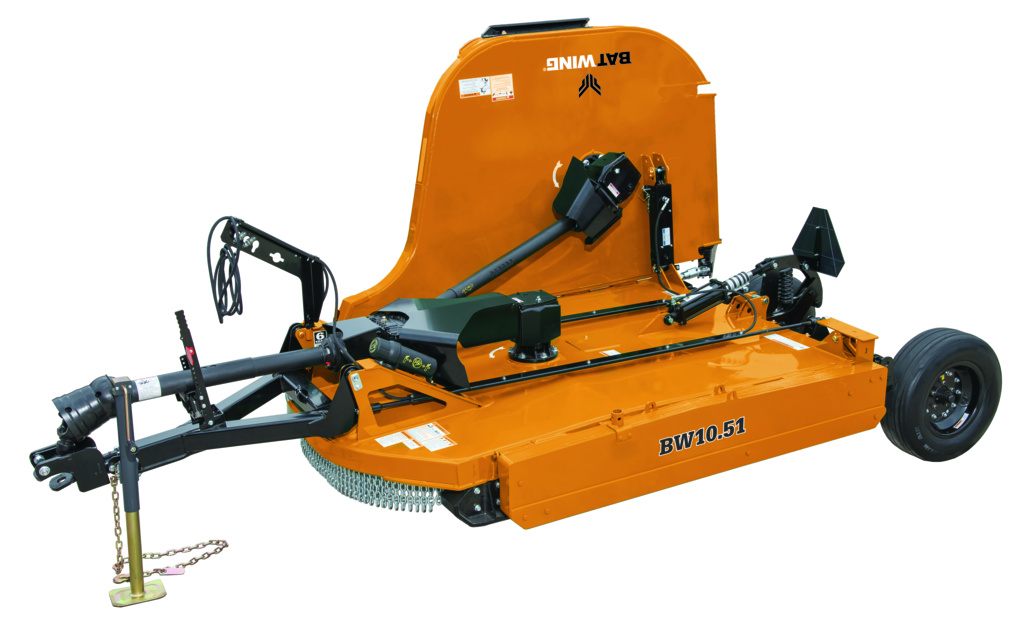

BW10.51
- Ideal for cutting tall grasses and saplings up to 3 inches in diameter
- Patented driveline lift assistance system makes it easy to hook up
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
- New gearbox seal technology reduces leaks and downtime
- A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine
- A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
- Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
- Strategically placed, welded baffles cut and distribute debris evenly
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing. Product may have slight variations from image shown.
