| Tractor PTO HP |
65-300 |
|---|---|
| Hitch Type |
Swivel clevis |
| Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
4.5 |
| Cutting Width (in) |
180 |
| Blade Tip Speed (fpm) |
15,700 at 540 rpm; 16,000 at 1,000 rpm |
| Weight (lbs) |
5,290 |
| Deck Thickness (in) |
0.25 |
| Side Skirt Thickness (in) |
0.25 |
| Side Skirt Depth (in) |
13 |
| Transport Width (in) |
96 |
| Wing Flex Up/Down (degrees) |
90 up, 22 down |
| Driveline Rating |
CAT 6 CV main, CAT 5 wing |
| Splitter/Wing Gearbox Rating (hp) |
275 / 225 *Gearbox horsepower ratings listed are based on field testing. |
| Output Shaft Diameter (in) |
3 |
| Tongue Weight (lbs) |
1,530 |
| Wheel Options |
15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft |
| Gearbox Warranty (yrs) |
6 |
| Options |
Double row chain shielding; dual wheels; LED lights; shredding kit; deck ring; spring axle; full walking tandem |
| Suspension |
Single spring on center wheel yoke or spring-loaded axles |
| Blade Overlap (in) |
6 |
| Blade Dimensions (in) |
.5 x 4 |
| Cutting Area Shielding |
Standard chain shielding |

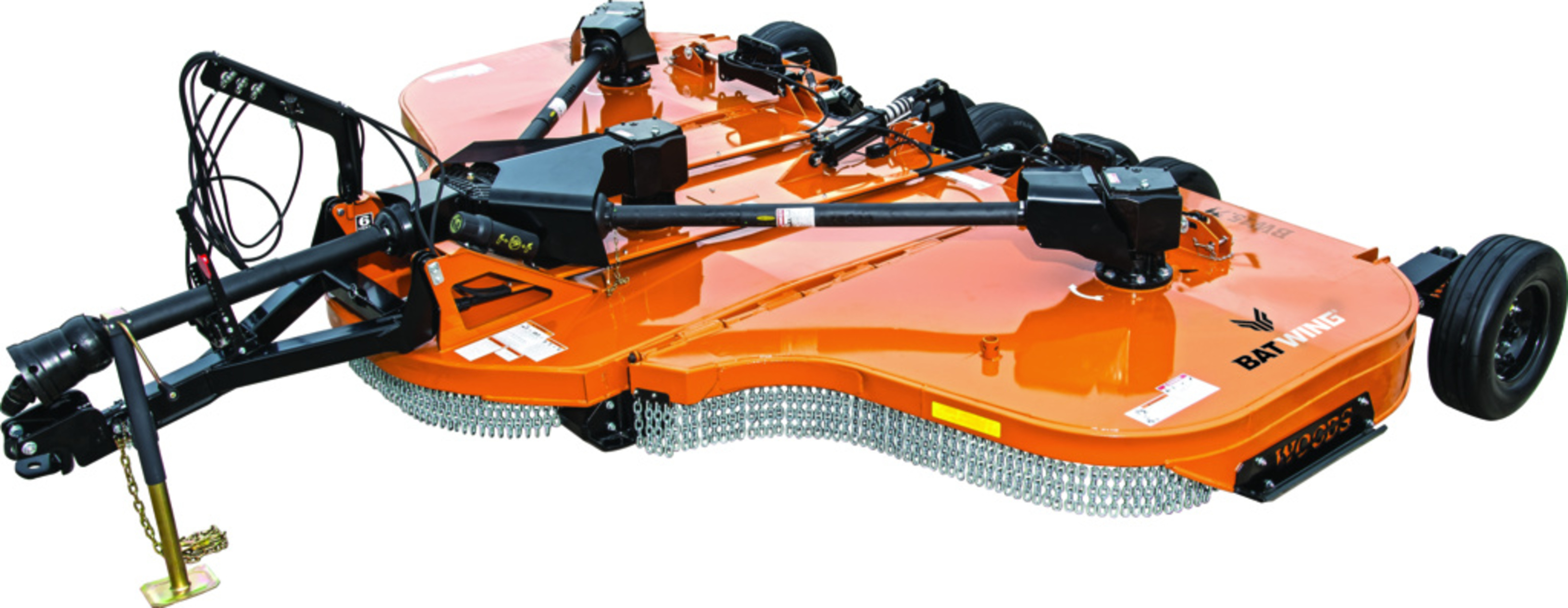

BW15.71
- Ideal for professional and contract cutting of heavy brush and trees up to 4-1/2 inches in diameter
- Woods Exclusive SmartLift™ System does the heavy lifting for you by holding the weight of the driveline on your BW15 as you connect and disconnect to the tractor.
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
- New gearbox seal technology reduces leaks and downtime
- A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine
- Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
- Strategically placed, welded baffles cut and distribute debris evenly
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
