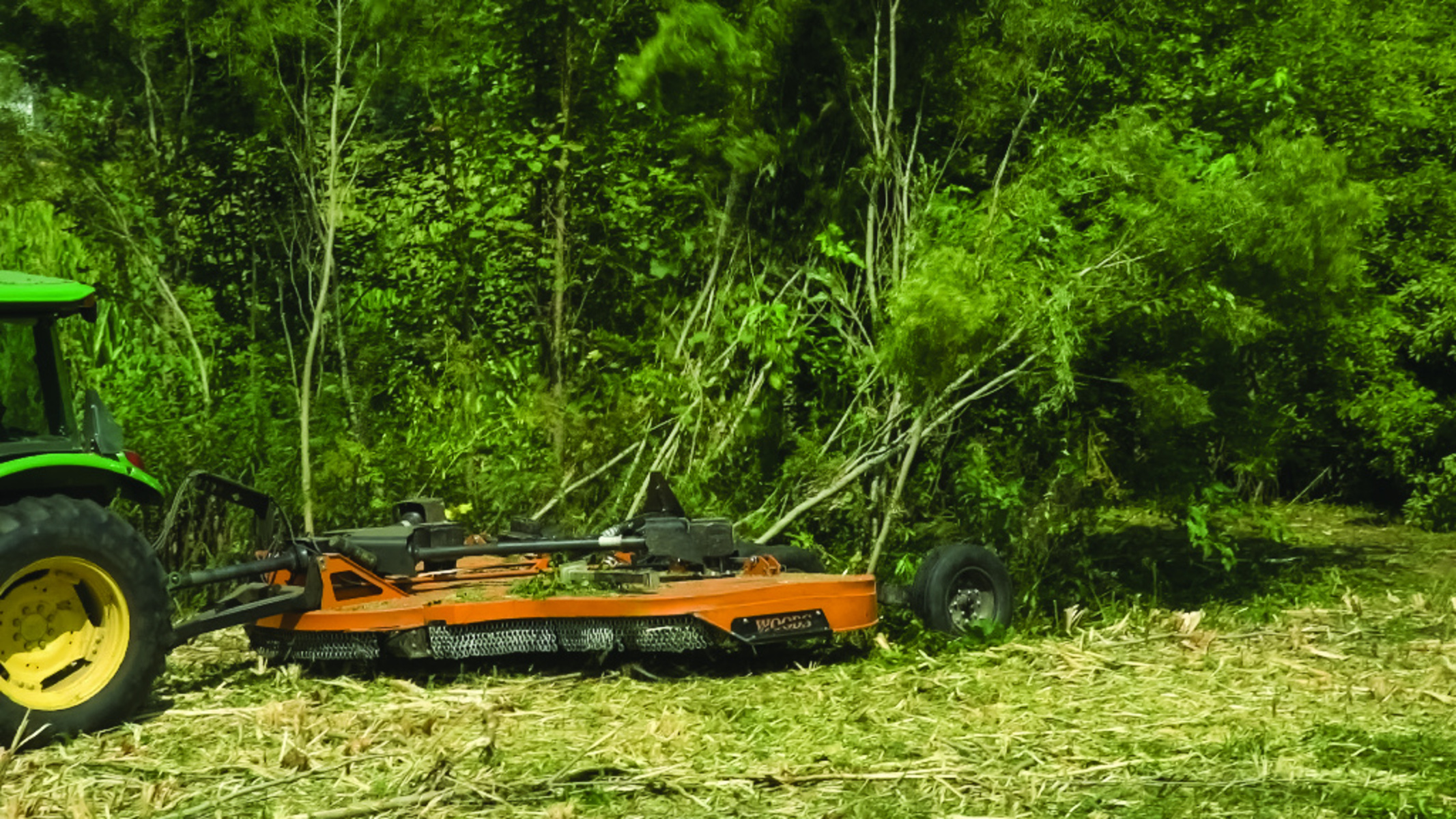

BW15.61
- Patented driveline lift assistance system makes it easy to hook up.
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact.
- Our gearbox seal technology reduces leaks and downtime and is backed by our six-year gearbox warranty, which includes the seals.
- A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine.
- Chain shielding is integrated with the frame to prevent damage.
- Patented greasable Quick-change blade pins are easy to remove.
- Strategically placed, welded baffles cut and distribute debris evenly.
Specifications
| Tractor PTO HP |
55-275 |
|---|---|
| Cutting Height (in) |
1 to 15 |
| Cutting Capacity Diameter (in) |
4 |
| Cutting Width (in) |
180 |
| Blade Tip Speed (fpm) |
15,700 at 540 rpm, 16,000 at 1,000 rpm |
| Blade Thickness (in) |
0.5 |
| Blade Width (in) |
4 |
| Blade Overlap (in) |
6 |
| Material Flow System |
Strategically placed, welded baffles |
| Weight (lbs) |
4,454 |
| Tongue Weight (lbs) |
1350 |
| Side Skirt (in) |
.25 thick x 13 deep |
| Transport Width (in) |
96 |
| Deck Type |
Smooth, sloped |
| Deck Thickness (in) |
0.179 |
| Number of Gearcases |
4 |
| Stump Jumper Type |
Round |
| Suspension |
Single spring on center wheel yolk or spring-loaded axles |
| Cutting Area Shielding |
Single or double chain |
| Wheel Type |
15 in. rims, 21 in. laminated severe-duty Ag, or 29 in. used aircraft |
| Hydraulics Wing Flex (degrees) |
90 up / 22 down |
| Driveline Rating |
CAT 6 CV main, CAT 4 wing |
| Gearbox Rating (hp) |
275 splitter / 225 wing |
| Output Shaft Size (in) |
3 dia |
| Gearbox Warranty (yrs) |
6-year limited |
| LED Light Kit |
Standard |
| Options |
Double row chain shielding, Dual wheels, Shredding Kit |
