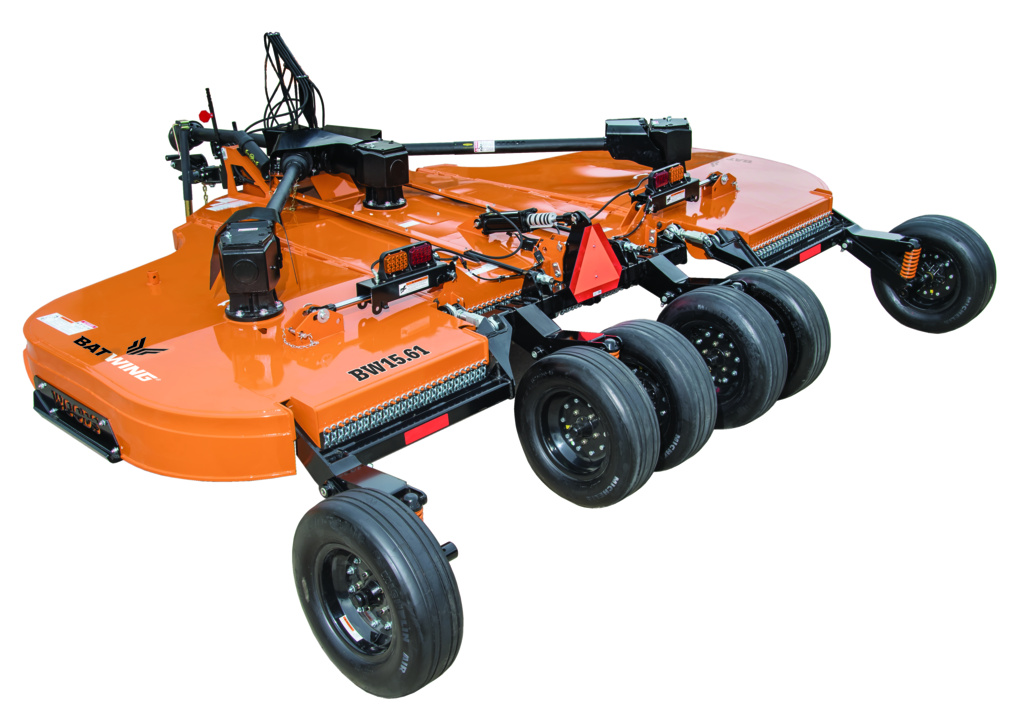

BW15.60
- New patent-pending driveline lift assistance system makes it easy to hook up.
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact.
- New gearbox seal technology reduces leaks and downtime and is backed by our six-year gearbox warranty, which includes the seals.
- A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine.
- Chain shielding is integrated with the frame to prevent damage.
- Greasable Quick-Change blade pins are easy to remove.
- Beefy, heavy-duty skid shoes prevent gouging and protect the deck.
- Strategically placed, welded baffles cut and distribute debris evenly.
- Center and wing decks feature high-strength 7 gauge steel (.60) or .25 inch thick steel (.70) for added durability.
- The side skirt is 13 inches deep and made of .25 inch thick steel for greater material capacity and the strength to manage it.
- For added toughness in extreme conditions, the .60 and .70 models have a 3-inch gearbox output shaft and optional deck ring.
- Other options include LED lights, double row chain shielding, dual wheels, and for the .60 and .70 models, a shredding kit for added versatility.
Specifications
| Tractor PTO HP |
55-275 |
|---|---|
| Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
4 |
| Cutting Width (in) |
126 to 180 |
| Blade Tip Speed (fpm) |
15,700 at 540 rpm, 16,000 at 1,000 rpm |
| Weight (lbs) |
4,600 |
| Tongue Weight (lbs) |
1350 |
| Center Deck / Wing Deck (in) |
7 gauge |
| Side Skirt (in) |
.25 thick x 13 deep |
| Transport Width (in) |
96 |
| Stump Jumper Type |
Round |
| Flex (degrees) |
90 up, 22 down |
| Driveline Rating |
CAT 6 CV main, CAT 4 wing |
| Gearbox Rating (hp) |
275 splitter / 225 wing |
| Output Shaft Size (in) |
3 dia |
| Gearbox Warranty (yrs) |
6 |
| Options |
Double row chain shielding, Dual wheels, LED Lights, Shredding Kit, Deck Ring, Spring Axle, Full Walking Tandem |
