Turf Batwing Mowers

Sold out
Click to enlarge
Home Products Finish Mowers Turf Batwing Mowers TBW180

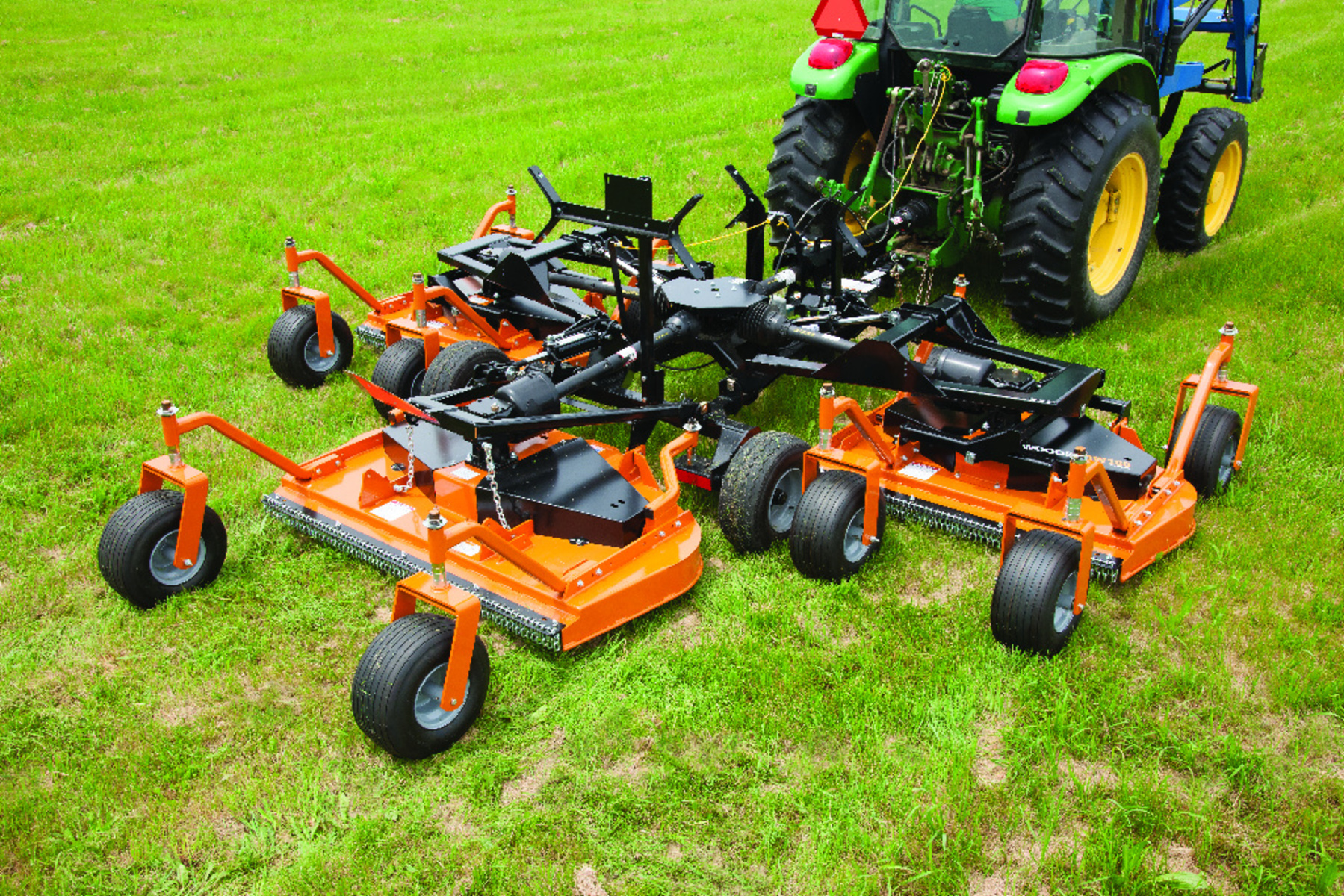

TBW180

  • Carrier bearing on the input driveline provides support, making it easier to attach to the tractor and allowing tighter turns
  • Superior cutting capabilities are combined with contoured wing decks to let you quickly cut large, uneven areas of turf without sacrificing cut quality
  • Rounded front, tapered rear deck design allows mowing close to objects without damage
  • Round skid rod glides deck bottom over roots and uneven turf – adding strength to the deck skirt
  • Standard six-year gearbox limited warranty and three-year spindle limited warranty
  • Tapered roller bearings in wheels and blade spindles
  • Floating hitch design flexes to allow the mower to follow the terrain with less stress and wear on the tractor drawbar. Adjustable to allow better fit on multiple tractor drawbar heights
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
  • Discontinued
Add to Compare
SKU: TBW180 Categories: Finish Mowers, Turf Batwing Mowers
Share:
  • Specifications
  • Downloads
Specifications
Tractor PTO Speed (rpm)

540

Tractor PTO HP

35-80

Cutting Width (in)

180

Belt

B-section, Kevlar®

Belt Adjustment

Spring-loaded idler

Blade Spindles / Bearings

Greasable tapered roller

Blade Tip Speed (fpm)

18,000

Caster Wheels (in)

(10) 18 x 9.5 – 8

Deck Thickness (ga)

8

Overall Width (in)

182

Weight (lbs)

3300 (shipping)

Blades (in)

(9) .25 x 2.5

Cutting Height (in)

1 to 5

Blade Spindles

(9) cast iron

Caster Wheel Bearings

Tapered roller bearings

Center Deck Lift Cylinders (in)

3 x 8 single acting

Chain Shielding

Standard

Cutting Height Adjustment

Spacer on caster

Deck Overlap (in)

6

Drive Type

Gearbox over v-belt

Hitch Adjustment

Floating clevis, multi-position

Input Driveline

CAT 4 CV (constant velocity)

Maximum Overall Length (in)

183

Splitter Gearbox HP

100

Trailer Frame Construction (in)

.25 wall tubing

Transport Length (in)

161

Transport Tires (in)

(2) 20.5 X 8-10

Transport Width (in)

100

Wing Deck Cutting Width (in)

60

Wing Deck Lift Cylinders (in)

3 x 10 single acting

Wing Drivelines

CAT 3

Mower Warranty

1 year

Gearbox Warranty

6-years limited

Spindle Warranty

3-years limted

Options

Options include highway light kit and anti-scalp roller kits

Downloads

Product Brochure Manual
