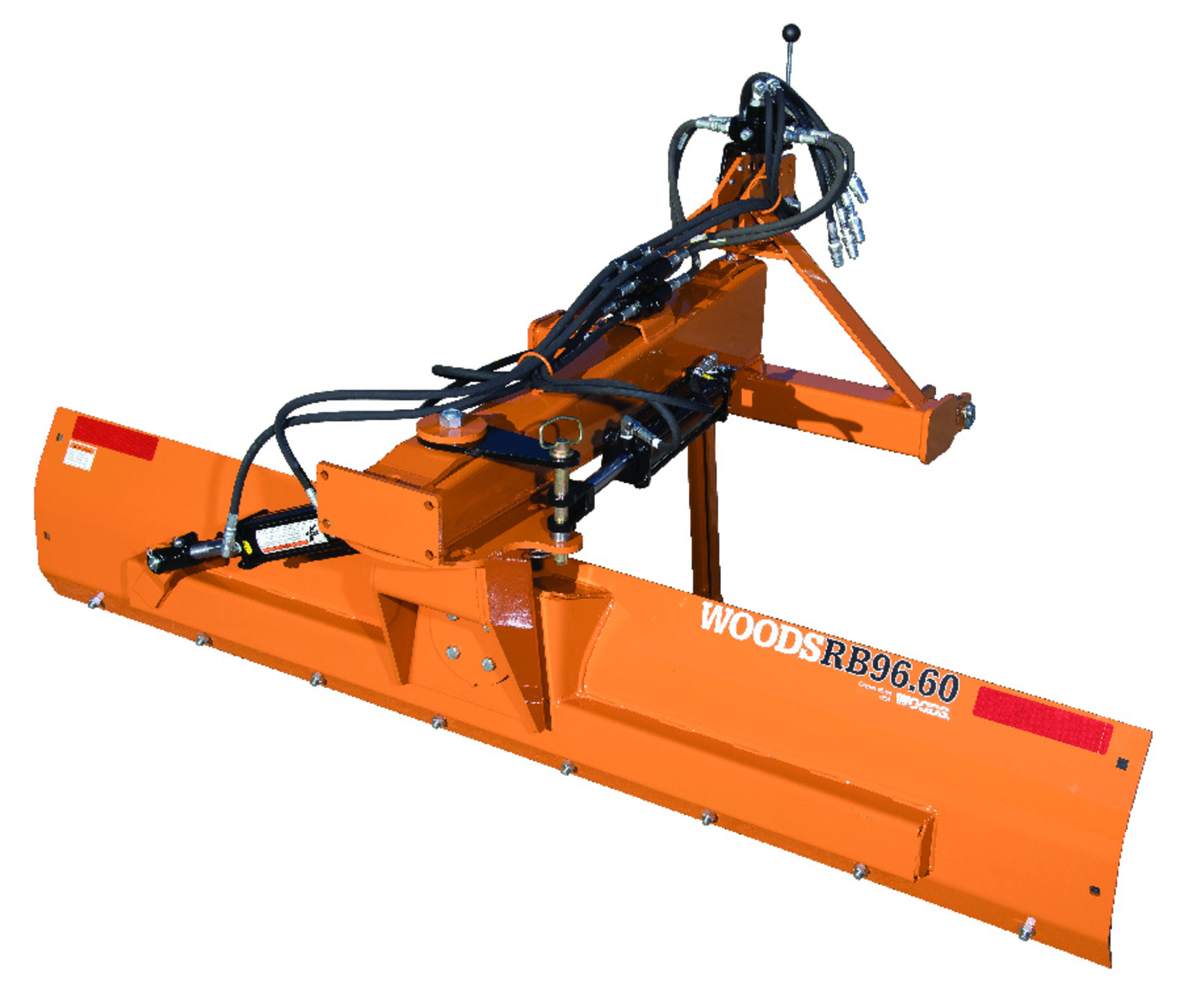

Rear Blades
RB96.60
- Move dirt, grade driveways, and clear snow
- 17-1/2 inch high, 5/16-inch thick moldboard
- Double-beveled, reversible, and hardened cutting edge for long life
- Choose manual or hydraulic, featuring angle, offset, and tilt adjustments
- Optional end plates, skid shoes, tail wheel, and selector valve
- Convenient parking stand is standard
Read More
Specifications
| Tractor Engine (HP) |
40-85 |
|---|---|
| Tractor Hitch |
CAT 1 and CAT 2 |
| Working Width (in) |
95 |
| Approximate Weight (lbs) |
730 |
| Moldboard Height (in) |
17.5 |
| Skid Shoes |
Optional |
| ASABE Quick-hitch Compatible |
Yes |
| Parking Stand |
Standard |
| Offset (in) |
up to 20” (mech or hyd) |
| End Plates |
Optional |
| Tailwheel |
Optional |
| Moldboard Thickness (in) |
.313 (grade 80 steel) |
| Angle Adjustment |
up to 45 degrees (mech or hyd) |
| Tilt Adjustment |
up to 23 degrees (mech or hyd) |
| Reversible Cutting Edge (in) |
.5 x 6 |
