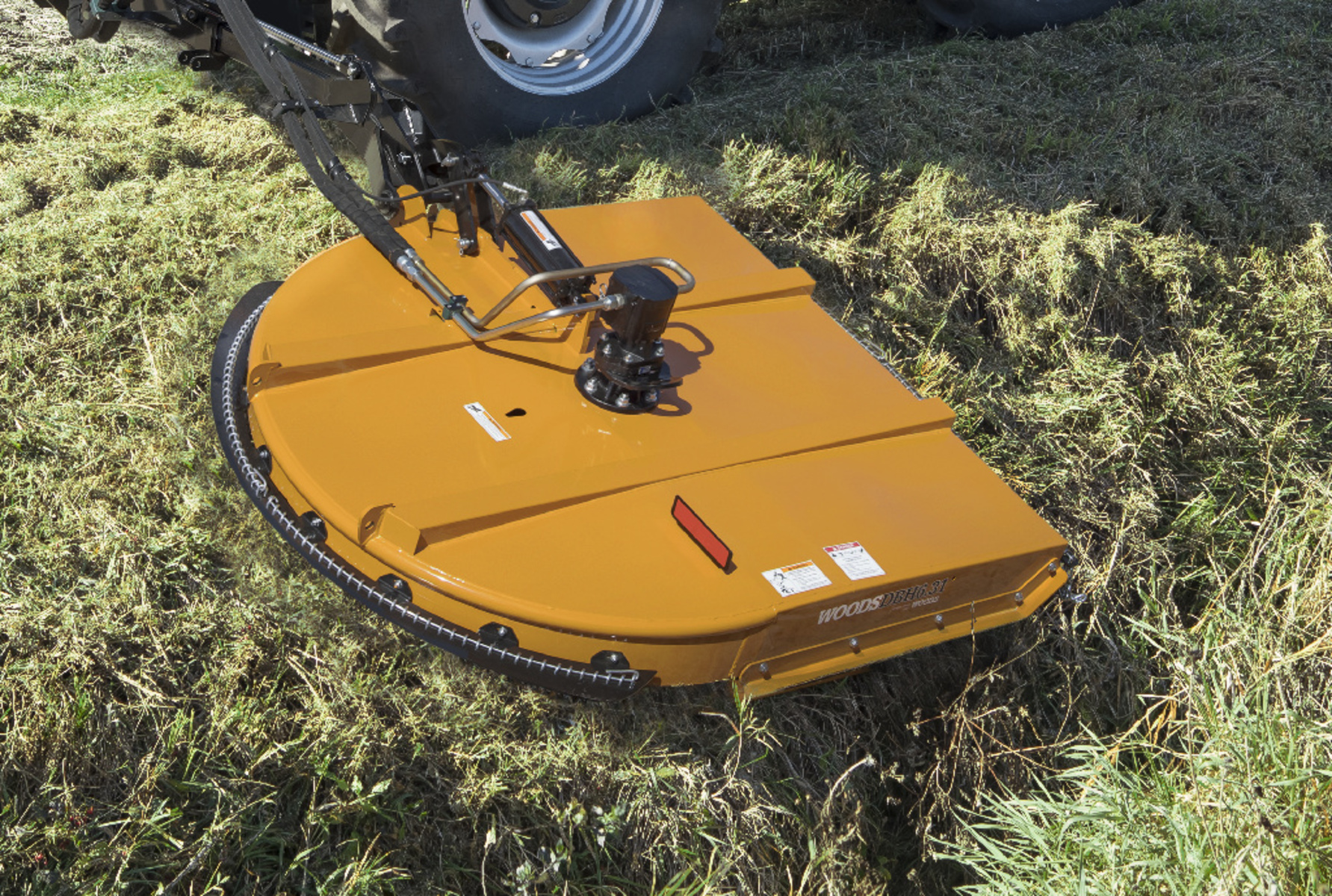

DBH5.31
- Highest-rated cutting horsepower in its class – full 40 hp at cutting head
- Only 6-foot model on the market – Choose 5′ or 6′ model
- Narrow 119 inches transport width – no frame overhang, even on 6′ units
- Cuts at almost any angle with +/- 90 degrees flex (90 degrees up, 90 degrees down)
- Optional hydraulic cooling system for extreme conditions
- Cuts vegetation up to 2 inch in diameter
- Quick-change blade system allows easy blade changes from top of the deck
- Discontinued
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Specifications
| Tractor PTO HP |
60-150 |
|---|---|
| Tractor Hitch |
CAT 2 and 3 |
| Cutting Height Range (in) |
2 to 10 |
| Cutting Capacity Diameter (in) |
2 |
| Cutting Width (in) |
60 |
| Blade Tip Speed (fpm) |
540 rpm: 15,800; 1,000 rpm: 16,000 |
| Weight (lbs) |
2,000 |
| Deck Thickness (in) |
.135 (10 ga) |
| Side Frame Thickness (in) |
.135 (10 ga) |
| Side Frame Depth (in) |
9.4 |
| Transport Width (in) |
119 |
| Overall Width /Length (in) |
191 (fully extended) x 72 |
| Blade Dimensions (in) |
.5 x 4 |
| Quick-hitch Compatible |
Yes |
| Flex Range Angles (degrees) |
90 up, 90 down |
