| Tractor PTO HP |
35-60 |
|---|---|
| Tractor PTO Speed (rpm) |
540 |
| Hitch Category |
CAT 1 and 2 |
| Working Width (in) |
84 |
| Transport Width (in) |
86 |
| Working Height |
26 |
| Approximate Operating Weight (lbs) |
632 |
| Driveline |
CAT 3 |
| Driveline Protection |
Shear bolt |
| Drive Type–Fan |
Gearbox |
| Drive Type–Auger |
Gearbox and chain |
| Number of Feeder Augers |
1 |
| Auger Flighting (in) |
.31 x 2 |
| Chute Rotation (degrees) |
270 |
| Hydraulic Chute Rotator |
Optional |
| Fan Diameter (in) |
24 |
| Fan Depth (in) |
8 |
| Replaceable Skids |
Yes |
| Adjustable Skids |
Yes |
| Bolt-on Cutting Edge |
No |
| Telescoping 3-point Hitch |
No |
| Woods C® |

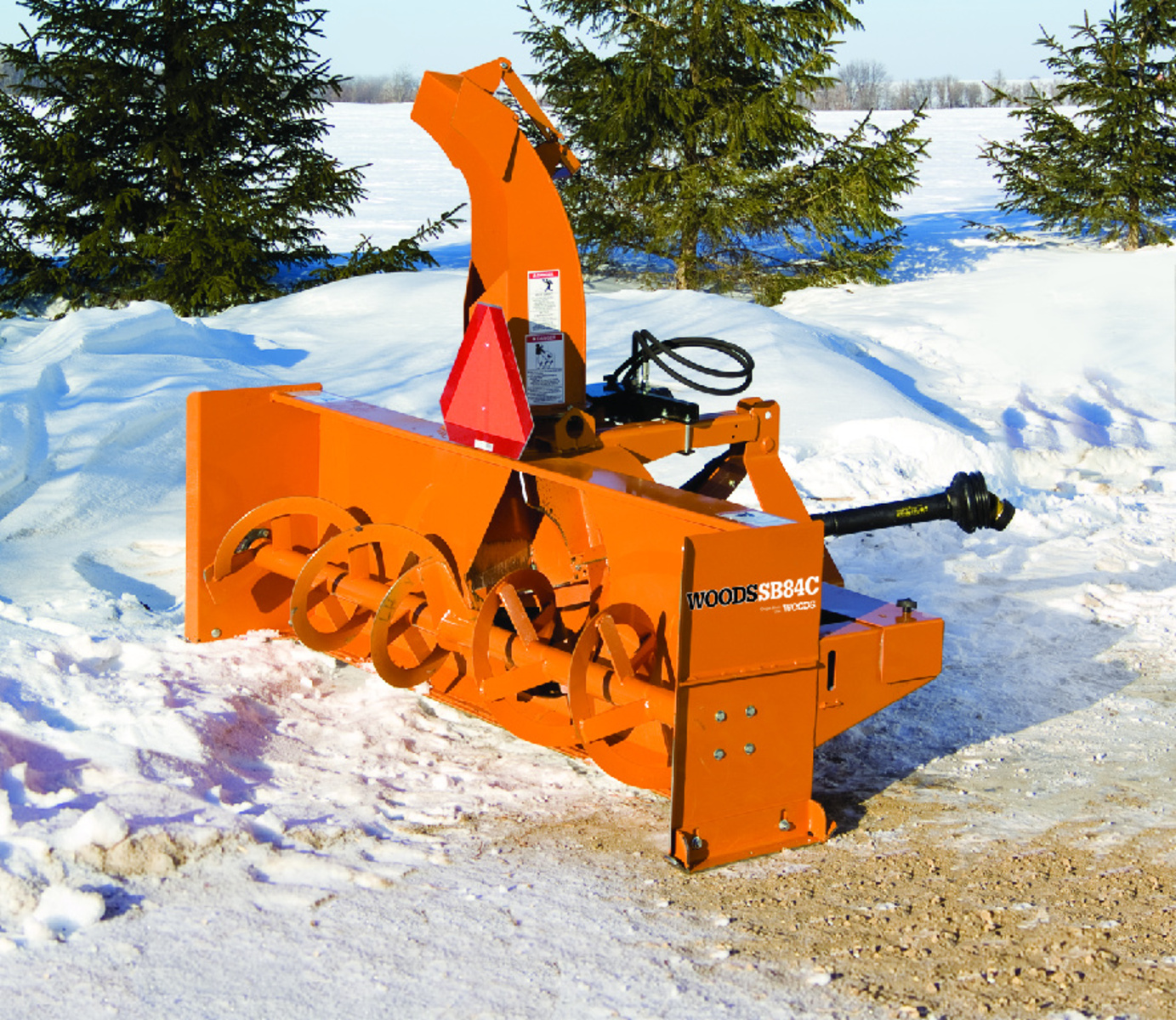

SB84C
- Designed specifically for subcompact and compact tractors
- Move large amounts of snow in a short time with working width of 84-inch
- Get more throwing force with less horsepower than single-stage snow blowers with Woods’ two-stage design
- Make quick and easy adjustments using the optional hydraulic or electric chute rotator
- Augers with optimized feed paddles and excellent feeding ability
- Superior discharge chute design resists plugging
- More efficient 4-blade fan design moves snow faster
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
| Tractor Make | Tractor Model | Tractor Wheel Width |
|---|---|---|
| Tractor Make | Tractor Model | Tractor Wheel Width |
| Ag Trac | AT3814 | 60 |
| AGCO | ST40 | 60.2 |
| AGCO | ST41A | 62 |
| Belarus | 5530 | 66.75 |
| Bobcat | CT335 | 62.6 |
| Branson | 3510 | 58.3 |
| Branson | 3510h | 55.2 |
| Branson | 3510i | 55 |
| Branson | 3520 | 60 |
| Branson | 3820 | 61 |
| Branson | 3820i | 56 |
| Branson | 4020 | 60 |
| Branson | 4720 | 61 |
| Branson | F3550 | 60.6 |
| Cabelas | LM35 | 62.25 |
| CaseIH | CS 52 | 74.8 |
| CaseIH | D40 | 61.3 |
| CaseIH | Farmall 40 | 66.6 |
| Century | 2535 | 59 |
| Century | 3035 | 61 |
| Century | C35 | 59 |
| Century | C38 | 61 |
| Cub Cadet | 7360 | 58.3 |
| Cub Cadet | 7530 | 53.5 |
| Cub Cadet | 7532 | 54 |
| Cub Cadet | 8354 | 57.1 |
| Cub Cadet | Ex2900 | 59.1 |
| Cub Cadet | Ex3200 | 59.1 |
| Cub Cadet | Sx3100 | 51.6 |
| Deutz-Fahr | Agrokid 210 | 49.3 |
| Deutz-Fahr | Agrokid 40 | 48 |
| Farm Pro | 4010 | 64 |
| Farm Pro | 4020 | 68.9 |
| Hurlimann | Prince 35 | 48 |
| Hurlimann | Prince 435 | 53.58 |
| Iseki | AT37 | 59.7 |
| Iseki | AT370 | 60.4 |
| Iseki | AT5330 | 57.3 |
| Iseki | AT5390 | 57.3 |
| Iseki | TA530 | 53.4 |
| Iseki | TA537 | 60 |
| Iseki | TG353 | 60 |
| Iseki | TG373 | 60 |
| Iseki | TG413 | 60 |
| Iseki | TG5390 | 59.1 |
| Iseki | TG6370 | 60.8 |
| Iseki | TG6400 | 60.8 |
| Iseki | TH4330 | 49.6 |
| Iseki | TK532 | 53.4 |
| Iseki | TK538 | 53.4 |
| John Deere | 5039D | 68.7 |
| KIOTI | DK4510 | 62.8 |
| KIOTI | DK5010 | 62.8 |
| KIOTI | DK5510 | 62.8 |
| KIOTI | NX4510 | 65.6 |
| KIOTI | NX5010 | 65.6 |
| KIOTI | NX5510 | 65.7 |
| KIOTI | NX6010 | 65.7 |
| KIOTI | RX6010 | 68.1 |
| KIOTI | RX6620 | 70.9 |
| Kubota | L5030 | 67 |
| Kubota | M5660SU | 73.2 |
| Mahindra | 2540 | 59.8 |
| Mahindra | 2555 | 71.1 |
| Mahindra | 2565 | 71.5 |
| Mahindra | 3540 | 75.4 |
| Mahindra | 3550 | 75.4 |
| Mahindra | 4035 | 73.7 |
| Mahindra | 4540 | 82.6 |
| Mahindra | 4550 | 82.6 |
| Mahindra | 4565 | 78 |
| Mahindra | 475 | 67 |
| Mahindra | 5545 | 72.5 |
| Mahindra | 5555 | 79 |
| Mahindra Gujarat | 353 | 69.5 |
| Mahindra Gujarat | 405 | 70.3 |
| McCormick Intl | CT36 | 66.5 |
| McCormick Intl | GX40 | 52 |
| Mitsubishi | GA36 | 59.8 |
| Mitsubishi | GA360 | 59.5 |
| Mitsubishi | GAK36 | 65.4 |
| Mitsubishi | GAK360 | 65.2 |
| Mitsubishi | GX3600 | 55.5 |
| Mitsubishi | GX37 | 59.5 |
| Mitsubishi | GX371 | 59.5 |
| Mitsubishi | GX40 | 61.2 |
| Mitsubishi | GX401 | 61.2 |
| Mitsubishi | MT3500 | 54.3 |
| Mitsubishi | MT36 | 55.1 |
| Mitsubishi | MT368 | 57.9 |
| Mitsubishi | MT408 | 61.2 |
| SAME | Solaris 35 | 40.19 |
| Shaktimaan | 35 | 69.3 |
| Sonalika | DI 735 | 67.7 |
| Sonalika | DI 740 | 67.7 |
| TYM | T350 | 60 |
| TYM | T353 | 53.5 |
| Ursus | 2812 | 71.7 |
| Wuzheng | WZ404 | 51.4 |
