Tractor Engine HP |
20-45 |
---|---|
Tractor Hitch |
CAT 1 |
Working Width (in) |
83 |
Approximate Weight (lbs) |
308 |
Moldboard Height (in) |
15 |
Moldboard Thickness (in) |
0.25 (grade 80 steel) |
Reversible Cutting Edge Dimensions (in) |
0.5 x 6 |
Skid Shoes |
Optional |
ASABE Quick-hitch Compatible |
Yes |
Parking Stand |
Optional |
Angle Adjustments |
5 positions up to 30 degrees |
Tilt |
up to 15 degrees |
Offset (in) |
up to 12 left or right |
End Plates |
Optional |

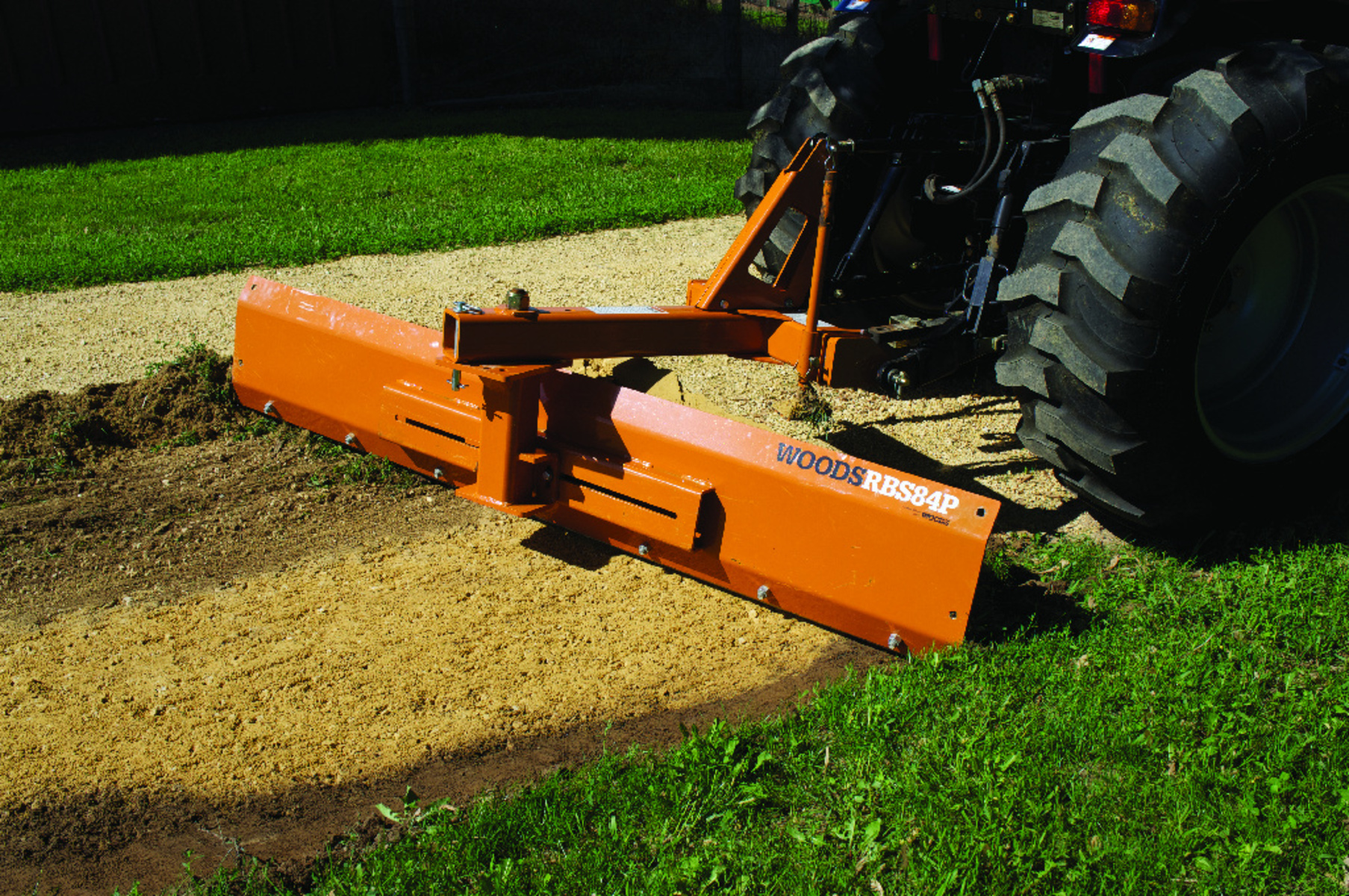

Woods C® |
RBS84P
-
- Move dirt, grade driveways, and clear snow
- Formed moldboard made from high-strength steel provides exceptional rigidity and pivots 360 degrees
- Reversible, bolt-on cutting edge adds to product life and enables easy replacement
- Tilt and offset functions for advanced grading applications
- Fast, easy, and safe hook-ups with ASABE Quick Hitch compatibility
- Optional skid shoes for depth control
- Optional parking stand for easier attachment
SKU:
RBS84P
Categories: Dirt Working, Rear Blades
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
Tractor Make | Tractor Model | Tractor Wheel Width |
---|---|---|
Tractor Make | Tractor Model | Tractor Wheel Width |
AGCO | ST34A | 62 |
AGCO | ST35 | 56.3 |
AGCO | ST40 | 60.2 |
AGCO | ST41A | 62 |
Belarus | 5530 | 66.75 |
Bobcat | CT235 | 55.4 |
Bobcat | CT335 | 62.6 |
Branson | 2810 | 59 |
Branson | 2910i | 59 |
Branson | 3110i | 55 |
Branson | 3510 | 58.3 |
Branson | 3510h | 55.2 |
Branson | 3510i | 55 |
Branson | 3520 | 60 |
Branson | 3820 | 61 |
Branson | 3820i | 56 |
Branson | 4020 | 60 |
Branson | 4720 | 61 |
Branson | F3550 | 60.6 |
Cabelas | LM35 | 62.25 |
CaseIH | DX34 | 54.3 |
CaseIH | DX35 | 66.6 |
CaseIH | DX40 | 66.6 |
CaseIH | Farmall 30C | 66.4 |
CaseIH | Farmall 35 | 54.3 |
CaseIH | Farmall 35C | 66.4 |
CaseIH | Farmall 40 | 66.6 |
CaseIH | Farmall 40C | 69.1 |
Century | 2028 | 59 |
Century | 2535 | 59 |
Century | 3035 | 61 |
Century | C29 | 59 |
Century | C35 | 59 |
Century | C38 | 61 |
Challenger | MT275 | 60.6 |
Challenger | MT275B | 62.2 |
Challenger | MT285 | 60.6 |
Cub Cadet | 7360 | 58.3 |
Cub Cadet | 7530 | 53.5 |
Cub Cadet | 7532 | 54 |
Cub Cadet | 8354 | 57.1 |
Cub Cadet | Ex2900 | 59.1 |
Cub Cadet | Ex3200 | 59.1 |
Cub Cadet | Sx3100 | 51.6 |
Deutz-Fahr | Agrokid 210 | 49.3 |
Deutz-Fahr | Agrokid 25 | 42.7 |
Deutz-Fahr | Agrokid 30 | 41 |
Deutz-Fahr | Agrokid 35 | 48.8 |
Deutz-Fahr | Agrokid 40 | 48 |
Farm Pro | 2010 | 48.6 |
Farm Pro | 2420 | 56 |
Farm Pro | 2425 | 56 |
Farm Pro | 2430 | 56.5 |
Farm Pro | 2510 | 50.8 |
Farm Pro | 3010 | 56.7 |
Farm Pro | 4010 | 64 |
Farm Pro | 4020 | 68.9 |
Hurlimann | Prince 325 | 50.43 |
Hurlimann | Prince 35 | 48 |
Hurlimann | Prince 435 | 53.58 |
Iseki | AT37 | 59.7 |
Iseki | AT370 | 60.4 |
Iseki | AT5330 | 57.3 |
Iseki | AT5390 | 57.3 |
Iseki | TA530 | 53.4 |
Iseki | TA537 | 60 |
Iseki | TF325 | 55.6 |
Iseki | TF327 | 47.2 |
Iseki | TF330 | 55.6 |
Iseki | TG313 | 56.1 |
Iseki | TG333 | 57.5 |
Iseki | TG353 | 60 |
Iseki | TG373 | 60 |
Iseki | TG413 | 60 |
Iseki | TG5330 | 58.3 |
Iseki | TG5390 | 59.1 |
Iseki | TG6370 | 60.8 |
Iseki | TG6400 | 60.8 |
Iseki | TH4260 | 49.6 |
Iseki | TH4290 | 49.6 |
Iseki | TH4330 | 49.6 |
Iseki | TK527 | 51.6 |
Iseki | TK532 | 53.4 |
Iseki | TK538 | 53.4 |
John Deere | 2036R | 50.4 |
John Deere | 2038R | 59.8 |
John Deere | 3038E | 56.5 |
John Deere | 3038R | 52.1 |
John Deere | 3039R | 53.1 |
John Deere | 3520 | 52.4 |
John Deere | 4410 | 50 |
John Deere | 4510 | 62 |
John Deere | 5036C | 68.5 |
John Deere | 5038D | 68.7 |
John Deere | 5039C | 68.5 |
John Deere | 5039D | 68.7 |
John Deere | 5103E | 65 |
KIOTI | DK4510 | 62.8 |
KIOTI | NX4510 | 65.6 |
KIOTI | NX5010 | 65.6 |
Kubota | L3430 | 59.8 |
Kubota | L3540 | 59.8 |
Kubota | L3560 | 59.8 |
Kubota | L3700SU | 51.4 |
Kubota | L3800 | 55.1 |
Kubota | L3830 | 66.5 |
Kubota | L3901 | 55.1 |
Kubota | L3940 | 66.5 |
Kubota | L5030 | 67 |
Kubota | STV40 | 48 |
Lenar | FS274 | 55.1 |
Lenar | JL254 | 53 |
Mahindra | 1533 | 63 |
Mahindra | 1538 | 62 |
Mahindra | 1635 | 63 |
Mahindra | 1640 | 62 |
Mahindra | 2540 | 59.8 |
Mahindra | 2555 | 71.1 |
Mahindra | 2615 | 59.4 |
Mahindra | 2638 | 63.2 |
Mahindra | 3325 | 69.4 |
Mahindra | 3525 | 69.4 |
Mahindra | 3535 | 69.4 |
Mahindra | 3540 | 75.4 |
Mahindra | 3550 | 75.4 |
Mahindra | 3616 | 62 |
Mahindra | 4035 | 73.7 |
Mahindra | 4540 | 82.6 |
Mahindra | 4550 | 82.6 |
Mahindra | 475 | 67 |
Mahindra | 5545 | 72.5 |
Mahindra | 5555 | 79 |
Mahindra Gujarat | 312 | 69.3 |
Mahindra Gujarat | 353 | 69.5 |
Mahindra Gujarat | 405 | 70.3 |
Massey Ferguson | 1440 | 60.2 |
Massey Ferguson | 1533 | 62 |
Massey Ferguson | 1540 | 62 |
Massey Ferguson | 1735M | 64.2 |
Massey Ferguson | 1736 | 64.2 |
Massey Ferguson | 1739E | 52.4 |
Massey Ferguson | 1740M | 64.2 |
Massey Ferguson | 2605 | 66 |
McCormick Intl | CT28 | 66.5 |
McCormick Intl | CT36 | 66.5 |
McCormick Intl | G25 | 34.25 |
McCormick Intl | G30R | 37.7 |
McCormick Intl | GX40 | 52 |
Minot | 20 | 56 |
Minot | 20 II | 48.6 |
Minot | 25 | 57 |
Minot | 30 | 56.5 |
Minot | 30 II | 56.7 |
Mitsubishi | GA28 | 59.8 |
Mitsubishi | GA30 | 59.8 |
Mitsubishi | GA300 | 59.5 |
Mitsubishi | GA32 | 59.8 |
Mitsubishi | GA330 | 59.5 |
Mitsubishi | GA36 | 59.8 |
Mitsubishi | GA360 | 59.5 |
Mitsubishi | GAK32 | 65.4 |
Mitsubishi | GAK330 | 65.2 |
Mitsubishi | GAK36 | 65.4 |
Mitsubishi | GAK360 | 65.2 |
Mitsubishi | GX34 | 59.5 |
Mitsubishi | GX3600 | 55.5 |
Mitsubishi | GX37 | 59.5 |
Mitsubishi | GX371 | 59.5 |
Mitsubishi | GX40 | 61.2 |
Mitsubishi | GX401 | 61.2 |
Mitsubishi | MT3500 | 54.3 |
Mitsubishi | MT36 | 55.1 |
Mitsubishi | MT368 | 57.9 |
Mitsubishi | MT408 | 61.2 |
New Holland | Boomer 2035 | 62 |
New Holland | Boomer 35 | 66.4 |
New Holland | T1520 | 62 |
New Holland | TC31DA | 54.3 |
New Holland | TC34DA | 54.3 |
New Holland | TC35 | 61.3 |
New Holland | TC35A | 66.6 |
New Holland | TC40 | 61.3 |
New Holland | TC40A | 66.6 |
New Holland | Workmaster 35 | 66.5 |
New Holland | Workmaster 37 | 66.5 |
New Holland | Workmaster 40 | 66.5 |
Shaktimaan | 30 | 66.5 |
Shaktimaan | 35 | 69.3 |
Sonalika | DI 730 III | 67.7 |
Sonalika | DI 732 III | 67.7 |
Sonalika | DI 735 | 67.7 |
Sonalika | DI 740 | 67.7 |
TYM | T290 | 52 |
TYM | T293 | 56.3 |
TYM | T300 | 53.5 |
TYM | T330 | 52 |
TYM | T350 | 60 |
TYM | T353 | 53.5 |
Ursus | 2812 | 71.7 |
Wuzheng | WZ250 | 57.1 |
Wuzheng | WZ300 | 57.1 |
Wuzheng | WZ350 | 57.1 |
Wuzheng | WZ354 | 57.1 |
Wuzheng | WZ404 | 51.4 |
