TurfWarrior™
New
TW990X
Heavy-Duty
Our Most Versatile Finish Mower
Move from rough, weedy farmland to commercial lawns and landscapes with a finish-cut quality.
Easy Connection
A unique combination of features add up to fast, easy, and hassle-free tractor hook-up.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Read More
The TurfWarrior™ includes brush cutting and finish mowing features.
See how it works.

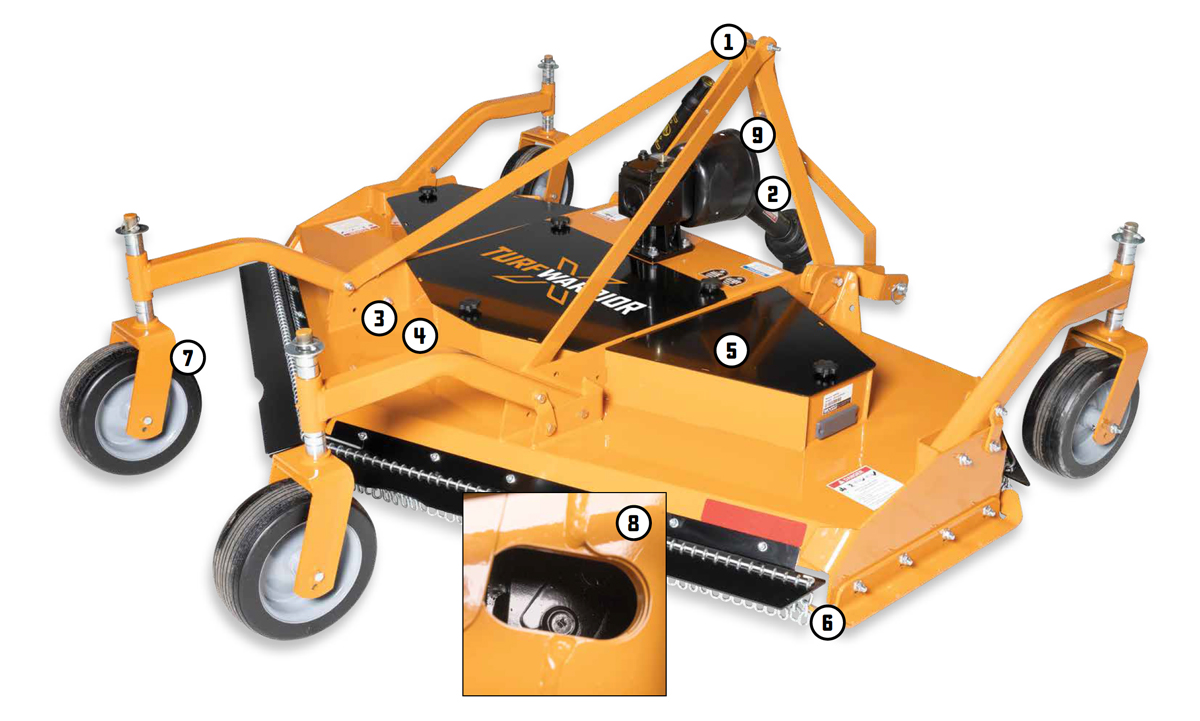

Additional Features
- Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
- CAT 1 / CAT 2 Hitch fits a wider range of tractors. Quick Hitch Ready.
- Free Swinging Blades for finish mowing and rough cutting.
- Standard Stump Jumper protects spindles from rocks, stumps, and other obstructions.
- Easy Shield Removal no tools needed to access belt sheaves, belt, and spring-loaded idler.
- Replaceable Skid Shoes for durability and long life.
- 5×13” Solid Wheel with Tapered Roller Bearing provide superior performance in rough conditions.
- Blade Access Window for quick and easy blade maintenance from the top of the deck.
- Driveline Holder holds the driveline as you prepare to connect and disconnect from the tractor.
Match the color of your attachment to your tractor.
Some colors only available on select models.
Backed by a 10-year warranty including parts, labor, and seals.
Specifications
| Product Tier | Heavy-Duty |
|---|---|
| Tractor PTO HP | 45-75 |
| Hitch | CAT 1 / CAT 2 |
| Tractor PTO Speed (rpm) | 540 |
| Cutting Width (in) | 90 |
| Weight (lbs) | 1,200 |
| Adjustable Cutting Height (in) | 1.5-7 |
| Overall Width (in) | 97 |
| Deck Material Thickness (in) | .188 |
| Side Skirt | .31 x 8.5 in with skid shoes |
| Gearbox Rating (HP) | 75 |
| Blade Tip Speed (fpm) | 17,000 |
| Blade Overlap (in) | 2 |
| Blade Spindles/Bearings | 3 cast iron housings / greasable tapered roller bearings |
| Driveline Size | CAT 4 |
| Belt | Powerband with double B-section |
| Belt Adjustment | Spring-loaded idler |
| Caster Wheels (in) | 13 x 5-10 solid |
| Chain Shielding | Standard |
| Structure Warranty | 2 years |
