Discontinued

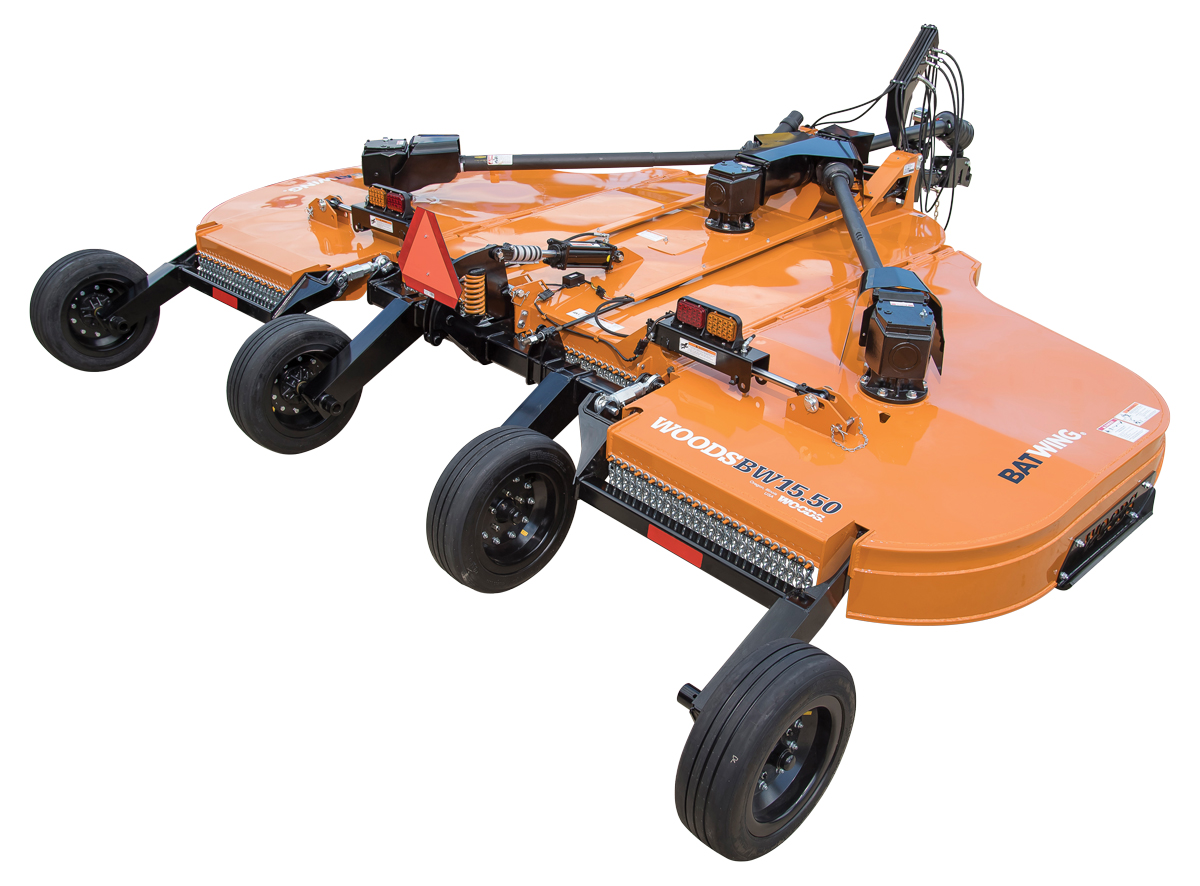

BW15.50
The BW15.50 is ideal for cutting tall grasses and saplings up to 3 inches in diameter.
Here are just a few features exclusive to Woods that rotary cutter users like you told us were important in our 15-foot series.
- Patented driveline lift assistance system makes it easy to hook up. Standard on all models.
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact.
- Our gearbox seal technology reduces leaks and downtime and is backed by our six-year gearbox warranty, which includes the seals.
- A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine.
- Chain shielding is integrated with the frame to prevent damage.
- Patented greasable Quick-change blade pins are easy to remove.
- Patented regressive spring design reduces shock transfer and wear to cutter body.
Specifications
| Tractor PTO HP |
45-200 |
|---|---|
| Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
3 |
| Cutting Width (in) |
180 |
| Blade Tip Speed (fpm) |
16,000 at 1,000 rpm |
| Weight (lbs) |
4,340 |
| Tongue Weight (lbs) |
1,200 |
| Center Deck / Wing Deck |
10 gauge |
| Side Skirt (in) |
.25 thick x 13 deep |
| Transport Width (in) |
96 |
| Stump Jumper Type |
Round |
| Hydraulics Wing Flex (degrees) |
90 up / 22 down |
| Driveline Rating |
CAT 6 CV main, CAT 4 wing |
| Gearbox Rating (hp) |
210 splitter / 200 wing |
| Output Shaft Size (in) |
2 dia |
| Gearbox Warranty (yrs) |
6-year limited |
| Options |
Double row chain shielding, Dual wheels, LED lights |
