Discontinued
Discontinued

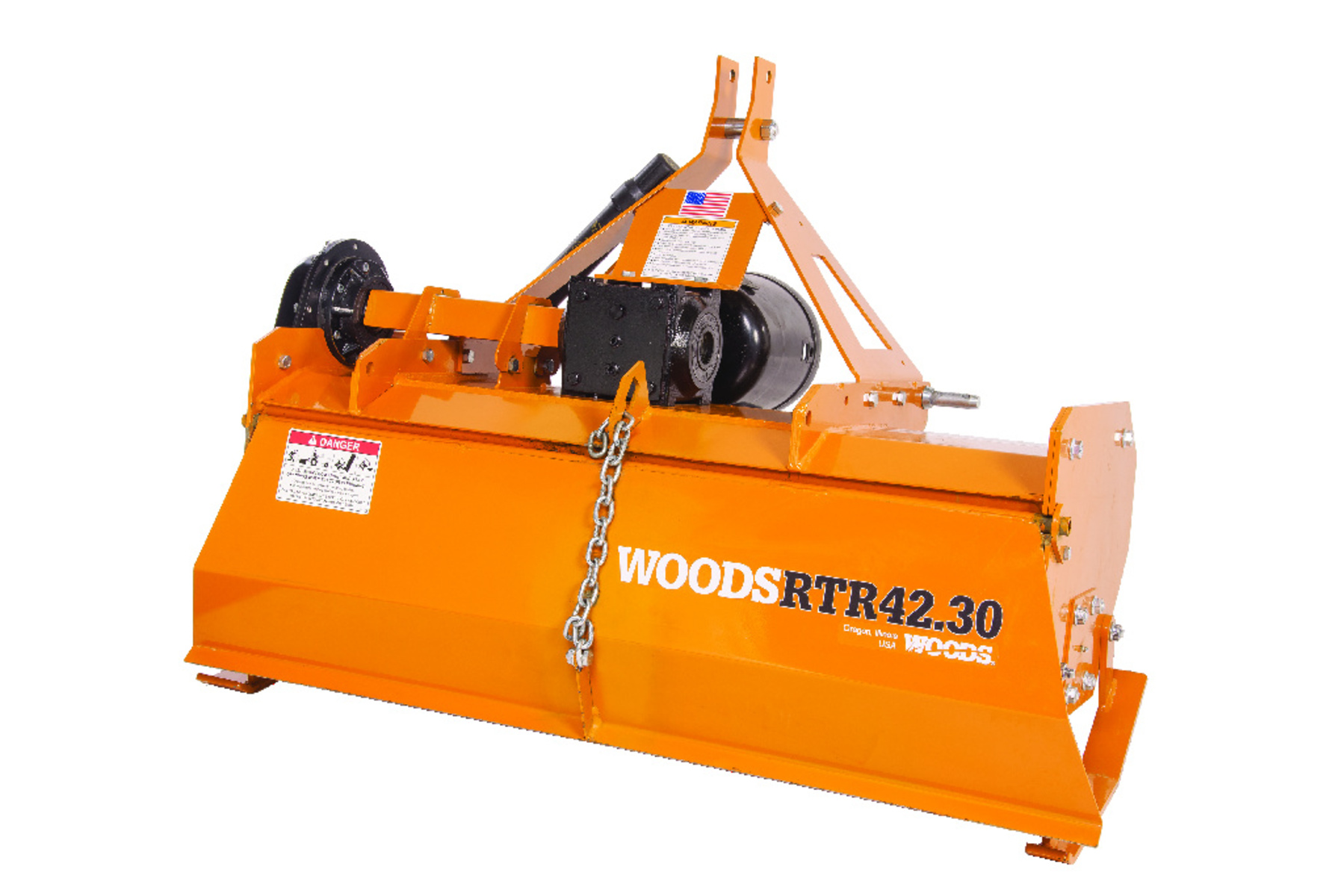

RTR42.30
- Available in forward or reverse rotation
- Tapered tailgate removes furrow for a finished seedbed
- Adjustable skid shoes for easy depth control
- Innovative double-flange blade support
- Robust gear-driven side drive provides years of reliable service and requires far less maintenance than chain-driven units
- Fixed offset tiller width covers tire tracks with each pass
- 3-year warranty on input gearbox (includes seals)
Specifications
| Overall Width (in) |
51 |
|---|---|
| Working Width (in) |
41 |
| Weight / Shipping Weight (lbs) |
478 / 484 |
| Tractor Hitch |
Limited CAT 1 and CAT 1 |
| Quick-hitch Compatible |
Yes |
| Drive Type |
Gearbox |
| Gearbox Drain Plug |
Yes |
| Gearbox Housing |
Heavy-duty cast iron |
| Number of Tines per Flange |
4 C-type |
| Number of Tines / Number of Flanges |
20 / 5 |
| PTO Driveline Protection |
Slip clutch |
| Rotor Speed (rpm) |
210 |
| Tractor PTO HP |
30-Dec |
| Tractor PTO Speed (rpm) |
540 |
| Woods C® |
