Tractor PTO HP |
15-25 |
---|---|
Tractor PTO Speed (rpm) |
540 |
Hitch Category |
CAT 1 |
Working Width (in) |
54 |
Transport Width (in) |
56 |
Working Height (in) |
24 |
Approximate Weight (lbs) |
415 |
Driveline |
CAT 3 |
Driveline Protection |
Shear bolt |
Drive Type–Fan |
Gearbox |
Drive Type–Auger |
Gearbox and chain |
Number of Feeder Augers |
1 |
Auger Flighting (in) |
.31 x 2 |
Chute Rotation (degrees) |
270 |
Hydraulic Chute Rotator |
Optional |
Fan Diameter (in) |
22 |
Fan Depth (in) |
6 |
Replaceable Skids |
Yes |
Adjustable Skids |
Yes |
Bolt-on Cutting Edge |
No |
Telescoping 3-point Hitch |
No |
Woods C® |
Compact/Subcompact |
Discontinued

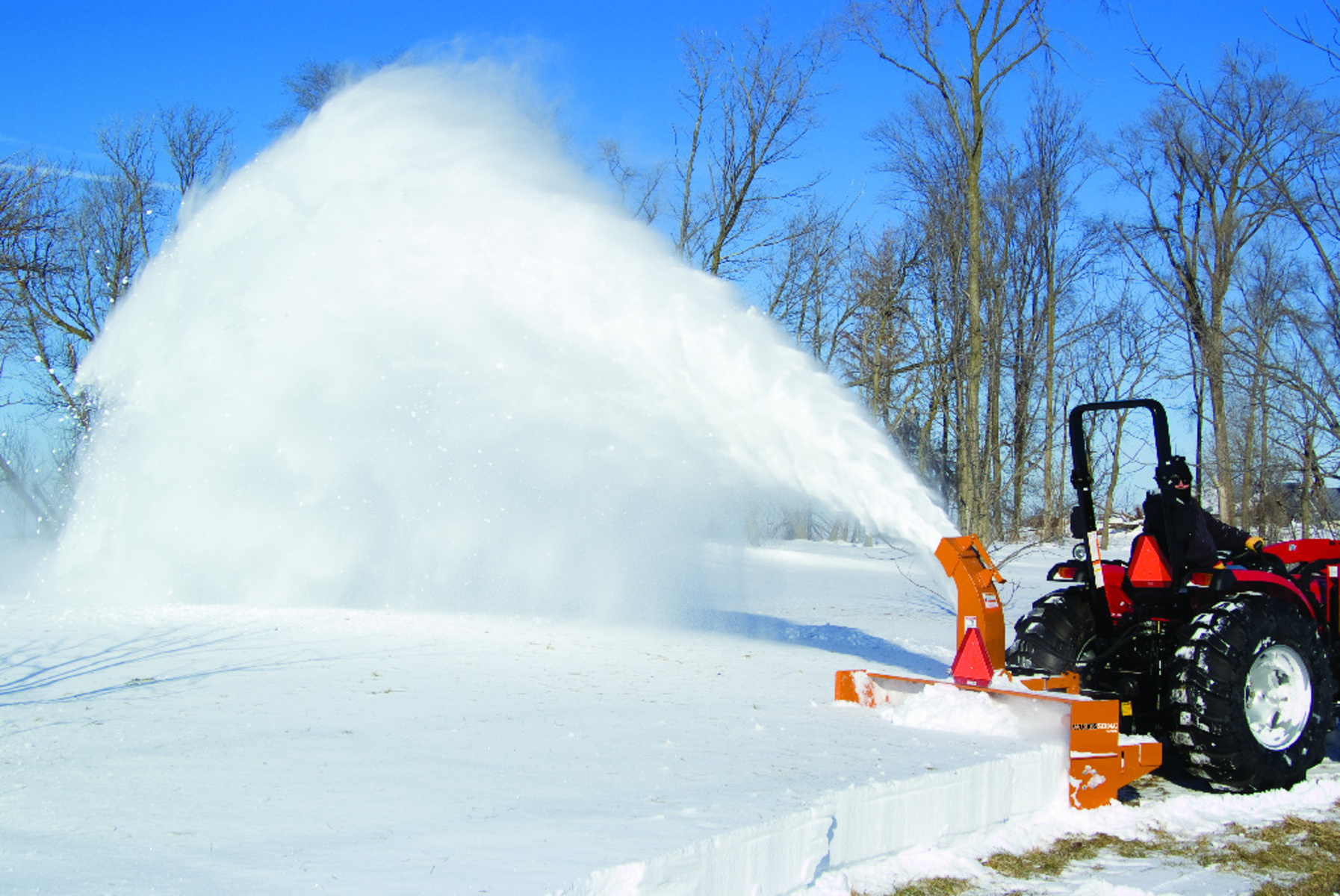

SB54S
- Designed specifically for subcompact and compact tractors
- Move large amounts of snow in a short time with working width of 54-inch
- Get more throwing force with less horsepower than single-stage snow blowers with Woods’ two-stage design
- Make quick and easy adjustments using the optional hydraulic or electric chute rotator
- Augers with optimized feed paddles and excellent feeding ability
- Superior discharge chute design resists plugging
- More efficient 4-blade fan design moves snow faster
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
Tractor Make | Tractor Model | Tractor Wheel Width |
---|---|---|
Tractor Make | Tractor Model | Tractor Wheel Width |
*John Deere | 1023E | 47.2 |
*John Deere | 1025R | 47.2 |
*John Deere | 1026R | 47.2 |
*John Deere | 2025R | 37 |
*John Deere | 2026R | 47.2 |
*John Deere | 2032R | 47.1 |
*John Deere | 2210 | 47.9 |
*John Deere | 2305 | 44.9 |
*John Deere | 2320 | 37.1 |
*John Deere | 2520 | 39.2 |
*John Deere | 2720 | 39.2 |
*John Deere | 3005 | 54 |
*John Deere | 3033R | 52.1 |
*John Deere | 3203 | 53.1 |
*John Deere | 3320 | 52.4 |
*John Deere | 4110 | 47 |
*John Deere | 4115 | 47 |
*John Deere | 4210 | 53 |
*Kubota | B2050 | 40.2 |
*Kubota | B2201 | 40.2 |
*Kubota | B2230 | 43.5 |
*Kubota | B2231 | 48.6 |
*Kubota | B2261 | 49.2 |
*Kubota | B2301 | 45.3 |
*Kubota | B2311 | 53.7 |
*Kubota | B2320 | 45.1 |
*Kubota | B2350 | 48.6 |
*Kubota | B2410 | 46.3 |
*Kubota | B2530 | 43.5 |
*Kubota | B2601 | 49 |
*Kubota | B2620 | 49 |
*Kubota | B2630 | 53.7 |
*Kubota | B2650 | 53.7 |
*Kubota | B2920 | 49 |
*Kubota | B3000 | 53.7 |
*Kubota | B3030 | 53.7 |
*Kubota | B3150 | 53.7 |
*Kubota | B3200 | 53.8 |
*Kubota | B3300SU | 53.7 |
*Kubota | B7410 | 42.4 |
*Kubota | B7500 | 42.4 |
*Kubota | B7510 | 42.4 |
*Kubota | B7610 | 46.3 |
*Kubota | BX2200 | 45.1 |
*Kubota | BX2230 | 45.1 |
*Kubota | BX2350 | 44.5 |
*Kubota | BX2360 | 44.5 |
*Kubota | BX2370 | 44.5 |
*Kubota | BX2370-1 | 44.5 |
*Kubota | BX2380 | 45.1 |
*Kubota | BX2660 | 44.5 |
*Kubota | BX2670 | 44.5 |
*Kubota | BX2670-1 | 44.5 |
*Kubota | BX2680 | 45.1 |
*Kubota | L2600 | 50.9 |
*Kubota | L2800 | 51.4 |
*Kubota | STV32 | 48 |
*Kubota | STW34 | 46.7 |
*Mahindra | 2015 | 53.5 |
*Mahindra | 2216 | 53.5 |
*Mahindra | 2310 | 52 |
*Mahindra | 2810 | 52 |
*Mahindra | 3015 | 53.7 |
*Mahindra | eMax 22 | 47.2 |
*Mahindra | eMax 25 | 47.2 |
*Mahindra | eMax 25S | 50.8 |
*Mahindra | Max 22 | 50.7 |
*Mahindra | Max 24 | 50.7 |
*Mahindra | Max 25 | 50.7 |
*Massey Ferguson | 1423 | 41 |
*Massey Ferguson | 1523 | 42.3 |
*Massey Ferguson | 1526 | 49.2 |
*Massey Ferguson | 1528 | 53.5 |
*Massey Ferguson | 1531 | 53.5 |
*Massey Ferguson | 1726E | 52.4 |
*Massey Ferguson | GC1705 | 47.25 |
*Massey Ferguson | GC1715 | 47.25 |
*Massey Ferguson | GC2300 | 45.8 |
*Massey Ferguson | GC2400 | 46.9 |
*Massey Ferguson | GC2600 | 46.9 |
*New Holland | Boomer 1020 | 46.4 |
*New Holland | Boomer 1025 | 46.4 |
*New Holland | Boomer 1030 | 52 |
*New Holland | Boomer 24 | 43.8 |
*New Holland | TC23DA | 44.7 |
*New Holland | TC26DA | 44.7 |
*New Holland | TZ25DA | 45.9 |
AGCO | ST22A | 45.8 |
AGCO | ST24A | 39.4 |
AGCO | ST25 | 41 |
Bobcat | CT120 | 46.5 |
Bobcat | CT122 | 46.5 |
Branson | 2100 | 44.3 |
Branson | 2400 | 44.3 |
Cabelas | LM25 | 45.8 |
Challenger | MT225 | 41 |
Challenger | MT225B | 39.4 |
Challenger | MT255 | 51 |
Challenger | MT255B | 50.6 |
Cub Cadet | 5234D | 45 |
Cub Cadet | 5252 | 45 |
Cub Cadet | 5254 | 45 |
Cub Cadet | 5264 | 45 |
Cub Cadet | 7000 | 46.3 |
Cub Cadet | 7200 | 46.3 |
Cub Cadet | 7205 | 46.3 |
Cub Cadet | Sc2400 | 44.5 |
Deutz-Fahr | Agrokid 25 | 42.7 |
Farm Pro | 2010 | 48.6 |
Farm Pro | 2510 | 50.8 |
Hurlimann | Prince 325 | 50.43 |
Iseki | AT23 | 49.8 |
Iseki | AT240 | 50.4 |
Iseki | AT25 | 52.8 |
Iseki | TF15F | 40.9 |
Iseki | TF17F | 42.9 |
Iseki | TF19F | 42.9 |
Iseki | TF21F | 45.3 |
Iseki | TF23F | 45.3 |
Iseki | TF26F | 45.3 |
Iseki | TF317 | 44.3 |
Iseki | TF321 | 44.3 |
Iseki | TH4260 | 49.6 |
Iseki | TM150 | 39 |
Iseki | TM16 | 40.6 |
Iseki | TM165 | 40.2 |
Iseki | TM17 | 41.7 |
Iseki | TM170 | 39 |
Iseki | TM18 | 40.6 |
Iseki | TM185 | 40.2 |
Iseki | TM217 | 46.9 |
Iseki | TM223 | 47.8 |
Iseki | TM3200 | 47.6 |
Iseki | TM3215 | 43.7 |
Iseki | TM3240 | 48.4 |
Iseki | TM3245 | 43.7 |
Iseki | TXG23 | 46.9 |
KIOTI | CK20 | 44.1 |
KIOTI | CK20S | 44.1 |
KIOTI | CK2510 | 49.2 |
KIOTI | CK2810 | 49.2 |
KIOTI | CS2210 | 46.7 |
KIOTI | CS2410 | 46.5 |
KIOTI | CS2510 | 46.7 |
KIOTI | CS2610 | 46.5 |
KIOTI | LB1914 | 46.5 |
KIOTI | LK2554 | 50.9 |
KIOTI | LK30 | 51.4 |
KIOTI | LK3054 | 51.7 |
Lenar | FS180 | 45.5 |
Lenar | JL254 | 53 |
LS | J2020H | 44.9 |
McCormick Intl | G25 | 34.25 |
McCormick Intl | G30R | 37.7 |
Minot | 20 II | 48.6 |
Mitsubishi | MT1800 | 41.5 |
Mitsubishi | MT200 | 46 |
Mitsubishi | MT2000 | 46.3 |
Montana | T2334 | 49 |
SAME | Solaris 25 | 44.13 |
TYM | T233 | 49 |
Wuzheng | WZ200 | 46.1 |
