Rear Blades

Watch video

Click to enlarge

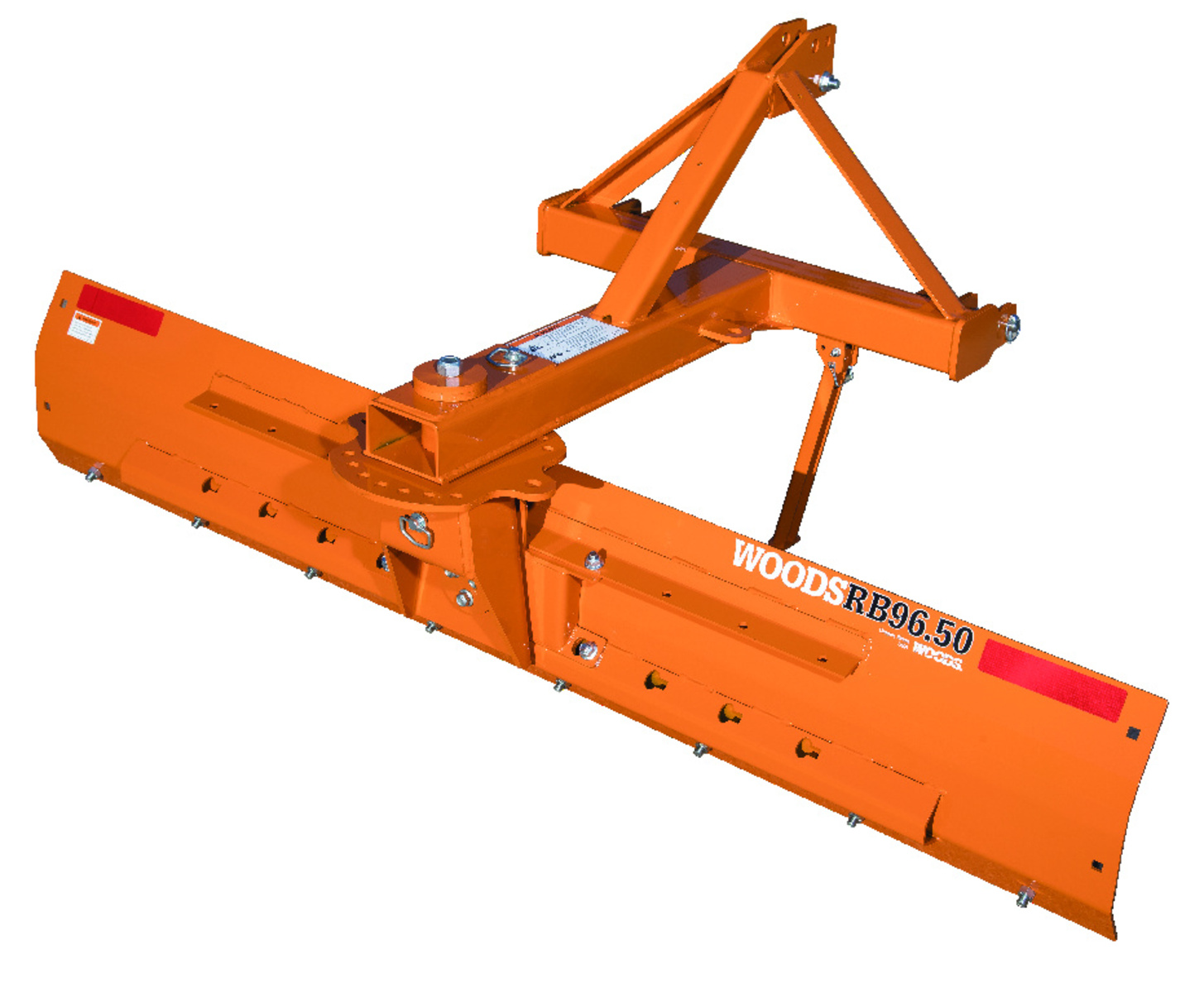

RB96.50

Heavy-Duty

Durability

Double-Beveled, Reversible, and Hardened Cutting Edges for added durability and longevity.

Versatility

Choose optional manual or hydraulic angle, offset, and tilt adjustments to maneuver easily in the field.

Easy Connection

Parking stand featured on Heavy-Duty and Extra Heavy-Duty units for added convenience. Holds the unit upright and level to allow for an easier connection.

Read More
Specifications

Available Colors

Match the color of your attachment to your tractor.

Additional Features

Double-Beveled, Reversible, and Hardened Cutting Edges for added durability and longevity.
Parking stand featured on Heavy-Duty and Extra Heavy-Duty units for added convenience. Holds the unit upright and level to allow for an easier connection.
Formed Moldboard Made From High-Strength Steel provides exceptional rigidity and pivots 360°.
Optional End Plates and Skid Shoes are available for all models for added durability.

Download Product Brochure
Download User Manual

Specifications

Product Tier	Heavy-Duty
Tractor Engine (HP)	30-65
Tractor Hitch	CAT 1 and CAT 2
Working Width (in)	95
Moldboard Height (in)	17
Moldboard Thickness	.25 (grade 80 steel)
Approximate Weight (lbs)	495
Angle Adjustments (degrees)	7 positions up to 45
Offset Adjustments (in)	Up to 18 left or right
Tilt Adjustments (degrees)	up to 23
Cutting Edge (in)	.50 x 6
Skid Shoes	Optional
ASABE Quick-hitch Compatible	Yes
Parking Stand	Standard
End Plates	Optional
