- Impact Resistant Trip moldboard protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.
- Easy Connection Skid steer quick-attach mounting allows operators to easily hook-up to the tractor for compact and sub-compact tractors only, not to be used with skid steers or track loaders.
- Rotating Skid Shoes Prevent Ground Gouging Steel skid shoe helps protect the cutting edge and prevents damage to textured surfaces. Offered as standard adjustable or optional Urethane.
- Reversible/Replaceable Cutting-Edges Improves overall performance on textured surfaces and extends the working life of the attachment.
- Optional Plow Guide Kit offers a visual guide for the location of the blade’s edge. Helps the operator prevent curb and wall strikes.
- Optional Rubber Deflector helps prevent snow from going over the top of the moldboard.
- Optional Hydraulic Angle Kit control the angle of the blade with the hydraulics of the tractor.

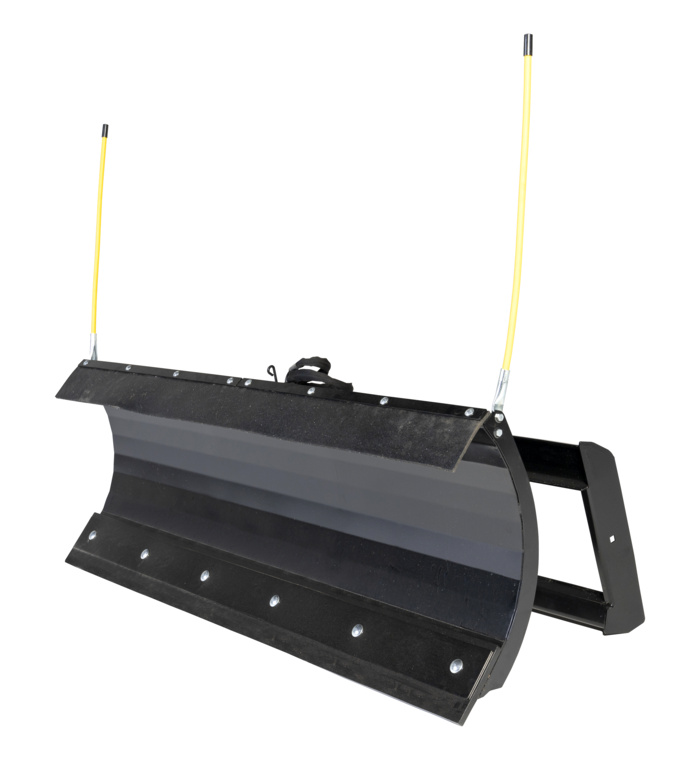

Loader Front Blades
New
LFB60.20
Standard
Impact Resistant
The trip moldboard protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.
Process Heavy Snow
Our Loader Front Blade is built with advanced-grade steel which is stronger and more durable than standard steel. This feature allows the blade to be lighter, so the tractor can lift and move more snow per square foot than heavier competitive model attachments.
Easy Adjustment
The lighter blade makes for easy manual angle adjustments. Select from five adjustments for a 60-degree overall rotation. Optional hydraulic angle adjustment is also available.
Easy Connection
Skid steer quick-attach mounting allows operators to easily hook-up to the tractor for compact and sub-compact tractors only, not to be used with skid steers or track loaders.
Read More
Additional Features
Specifications
| Product Tier |
Standard |
|---|---|
| PTO Power Requirements (HP) |
Up to 35 |
| Coupler System |
Skid Steer Quick-Attach (For compact and sub-compact tractors only, not to be used with skid steers or track loaders) |
| Maximum Tractor Weight (lbs) |
2800 |
| Weight (lbs) |
201 |
| Moldboard Height (in) |
21 |
| Moldboard Width (in) |
59 1/4 |
| Moldboard Thickness (in) |
.105" (12 gauge) |
| Moldboard Material |
Grade 80 High-Strength Steel |
| Moldboard |
Standard Spring Loaded Trip can be locked in position |
| Cutting Edge Dimensions (in) |
.25 x 6 |
| Cutting Edge Reverseable and Replaceable |
Yes |
| Blade Angle |
0°, 15° and 30° positions in either direction |
| Blade Angle Adjustment |
Standard Manual Blade Angle or Optional Hydraulic |
| Skid Shoe |
Standard Adjustable or Optional Urethane Kit |
| Additional Options |
Reversible Urethane Cutting Edge Plow Guide Kit, Rubber Deflector, Urethane Skid Shoe Kit, Hydraulic Angle Kit |
