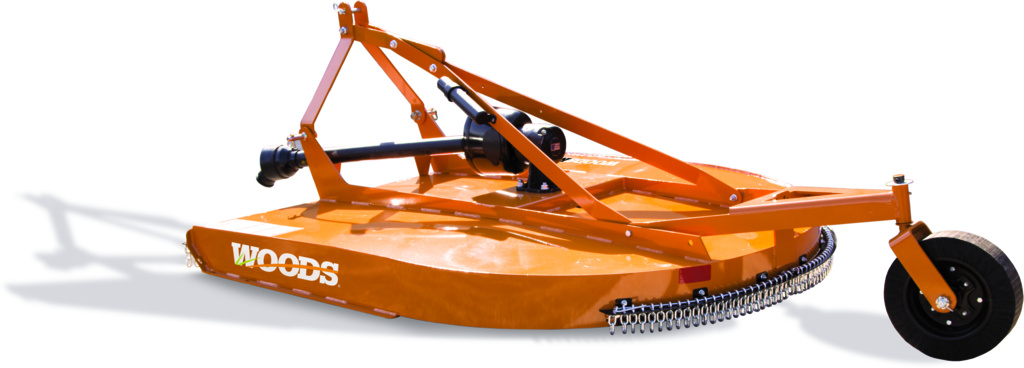

RC48.20
- Unique smooth, sloped decks are easy to clean and reduce build-up of water and debris
- Stump jumpers are standard on all models for added driveline protection
- High-strength steel and quality parts provide dependable service year-after-year
- A 6-year gearbox warranty including labor and seals under the Woods Cut Above™ Warranty program for confidence in your purchase decision
- Replaced model RC4
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing. Product image shown with chain shielding. Front rubber with rear steel band shielding or chain shielding available.
Specifications
| Tractor PTO HP |
15 minimum |
|---|---|
| Tractor Hitch |
CAT 1 / cantilevered |
| Cutting Height Range (in) |
2 to 9 |
| Cutting Capacity Diameter (in) |
1 |
| Cutting Width (in) |
48 |
| Blade Tip Speed (fpm) |
13,100 |
| Weight (lbs) |
410 |
| Side Frame Depth (in) |
7 |
| Gearbox Warranty |
6 years |
| Blade Dimensions (in) |
.5 x 3 |
| Frame and Deck Support (in) |
3/8 rails |
| Tractor PTO Speed (rpm) |
540 |
| Quick-hitch Compatible |
Yes |
| Blade Carrier |
Oval stump jumper |
| Driveline Protection |
Shear-bolt or slip-clutch |
| Tailwheel (in) |
4 x 16 laminated |
| Options |
Belt standard / chain shielding optional |
| Woods C® |
