Discontinued

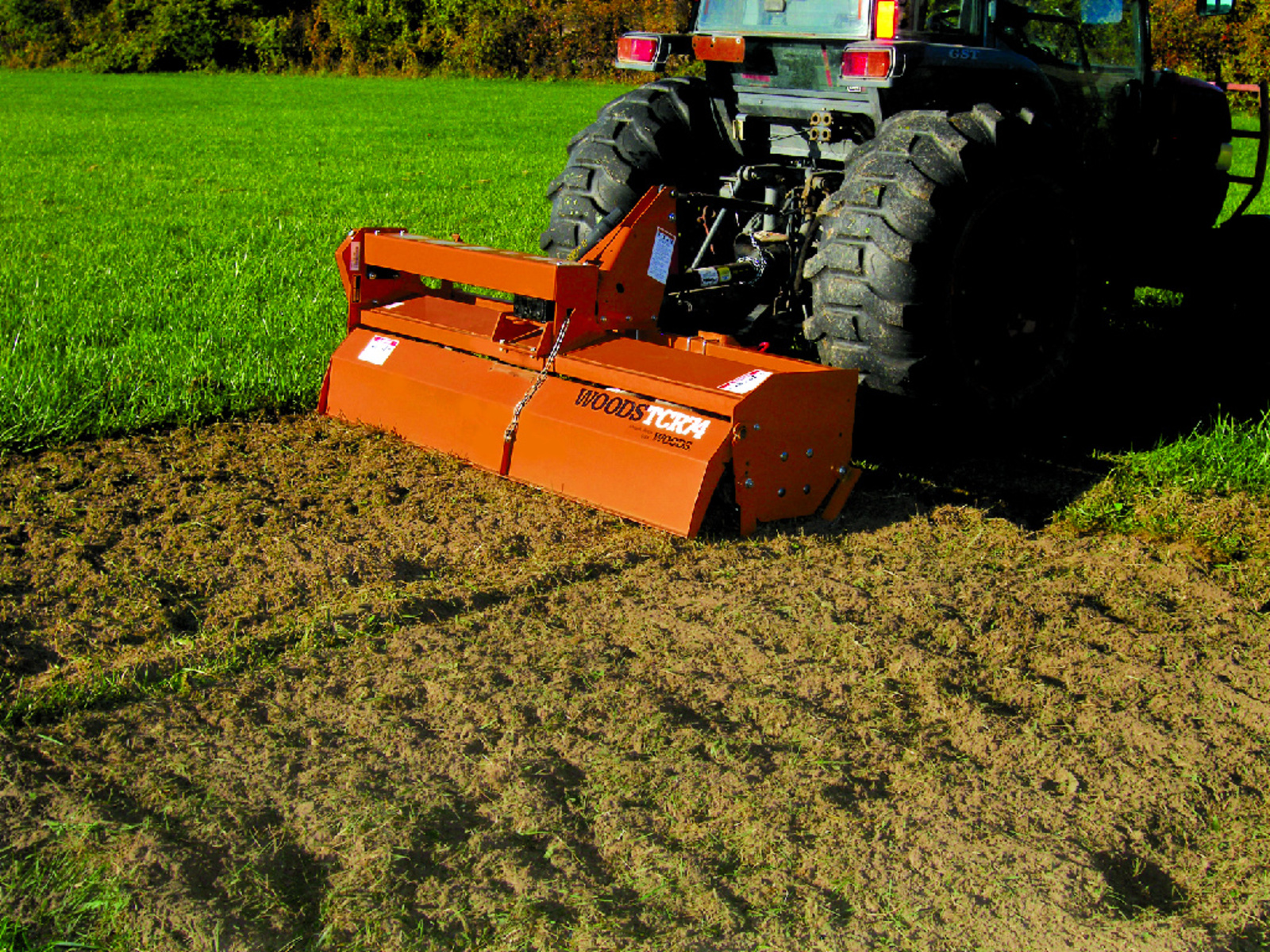

TC/TCR74
- Specifically designed for compact tractors
- Sturdy rear tailgate evenly distributes dirt, leaving a smooth, flat seed bed
- Strong, cast-iron gearbox withstands rugged use
- Available as either forward or reverse rotation
- Standard slip clutch driveline protection
Specifications
| Tractor Engine (HP) |
20-45 |
|---|---|
| Overall Width (in) |
81 |
| Working Width (in) |
74 |
| Weight / Shipping Weight (lbs) |
665 / 672 |
| Tractor Hitch |
Limited CAT 1 and CAT 1 |
| Quick-hitch Compatible |
Yes |
| Drive Type |
#80 Chain |
| Gearbox Drain Plug |
Yes |
| Gearbox Housing |
Heavy-duty cast iron |
| Max. Tilling Depth (in) |
7.5 |
| Number of Tines per Flange |
6 C-type |
| Number of Tines / Number of Flanges |
54 / 9 |
| PTO Driveline Protection |
Slip clutch |
| Rotor Speed (rpm) |
240 |
| Tractor PTO HP |
20-45 |
| Tractor PTO Speed (rpm) |
540 |
| Convertible Side Shift (right) |
22.5 |
