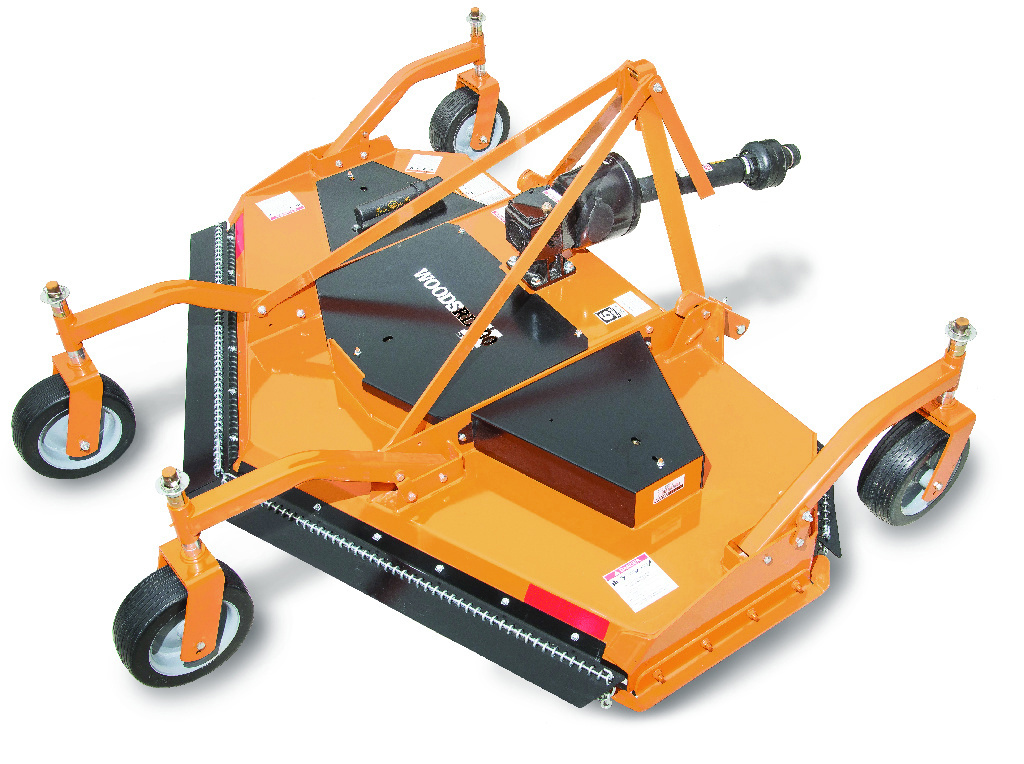

RD990X Rough Cut & Finish
RD990X
Heavy-Duty
Your Most Versatile Finish Mower
Move from rough, weedy farmland to commercial lawns and landscapes with a finish-cut quality.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals.
Read More
The RD990X includes brush cutting and finish mowing features.
See how it works.
Additional Features
- CAT 1 / CAT 2 Hitch fits a wider range of tractors.
- Free Swinging Blades for finish mowing and rough cutting.
- Standard Stump Jumper protects spindles from rocks, stumps, and other obstructions.
- Replaceable Skid Shoes for durability and long life.
- Tapered Roller Bearings provide superior performance in rough conditions.
Match the color of your attachment to your tractor.
Some colors only available on select models.
Backed by a 10-year warranty including parts, labor, and seals.
Specifications
| Product Tier | Heavy-Duty |
|---|---|
| Tractor PTO HP | 45-75 |
| Tractor PTO Speed (rpm) | 540 |
| Hitch/Quick-hitch Capable | CAT 1 & CAT 2/Quick-hitch Capable |
| Cutting Width (in) | 90 |
| Weight (lbs) | 1,200 |
| Adjustable Cutting Height (in) | 1.5-7 |
| Overall Width (in) | 97 |
| Deck Material Thickness (in) | 0.188 |
| Side Skirt | .31 x 8.5 in with skid shoes |
| Gearbox Rating (HP) | 75 |
| Blade Tip Speed (fpm) | 17,000 |
| Blade Overlap (in) | 2 |
| Blade Spindles/Bearings | 3 cast iron housing, greasable tapered roller bearings |
| Driveline Size | CAT 4 |
| Belt | Powerband with double B-section |
| Belt Adjustment | Spring-loaded idler |
| Caster Wheels (in) | 13 x 5-10 solid |
| Chain Shielding | Standard |
| Structure Warranty | 2 years |
Cecil Tomlinson –
This is my 2nd Woods 90 inch finish / rough cut mower. Like others have said, the wheel spindles need to be much thicker or the whole caster arm and spindle needs redesigned similar to the old RM990 style. I have bent multiple caster yokes since purchasing and I cut almost as low as one can with the mower so the problem is in the design. I like the 3 pt hitch design better than the older model, from a 3pt pin sticking out that always made you readjust the tractor 3pt arms to the current sleeve is a much easier design for hookup. Other than the caster yoke assemblies, it has been a great piece of equipment. My favorite part is the 2 blade per spindle design which saves so much trouble over a standard blade when keeping less than ideal grounds finished. the quality of cut is great, I get complements on the fields I cut. It was a replacement for a RM990 which I wore out after 20 years but I never had caster problems with. Even with its problems, I would purchase the RD990X again.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
keb tucker –
Why doesn’t Woods make the wheel shafts thicker??? I know MANY people that have bent their wheel shafts, especially when mowing higher, which means more shims underneath and more shaft with no support. Think of the weight…there’s about 300 pounds on EACH one. When in sandier or rough terrain, they will not caster around when changing directions…so they just BEND! I’m not abusing mine at all, but have had this issue on every wheel, on multiple mowers. I just looked at a slightly used 990 and ALL the wheels were bent. BEEF up the wheel shafts, and this thing would be truly rugged. Instead, it’s nice, only if one is really careful all the time.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
John Martin –
It’s a nice operating attachment.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Raymond Seebold –
The Rd990x produces a great cut and is built to last, we are very happy with our purchase.
