| Tractor PTO HP |
45-75 |
|---|---|
| Tractor PTO Speed (rpm) |
540 |
| Cutting Width (in) |
90 |
| Hitch/Quick-hitch Capable |
CAT 1 & CAT 2/Quick-hitch Capable |
| Belt |
Powerband with double B-section |
| Belt Adjustment |
Spring-loaded idler |
| Blade Overlap (in) |
2 |
| Blade Spindles/Bearings |
3 cast iron housing, greasable tapered roller bearings |
| Blade Tip Speed (fpm) |
17,000 |
| Caster Wheels (in) |
13 x 5-10 solid or 13 x 5-6 pneumatic |
| Deck Thickness |
7 gauge |
| Driveline |
CAT 4 |
| Gearbox HP |
75 *Gearbox horsepower ratings listed are based on field testing. |
| Overall Width (in) |
97 |
| Side Skirt |
.31 x 8.5 in with skid shoes |
| Weight (lbs) |
1,333 |
| Cutting Height (in) |
1.5-7 |
| Chain Shielding |
Standard |
| Mower Warranty |
1 year |
| Gearbox Warranty |
10 years limited |
| Spindle Warranty |
3 years limited |

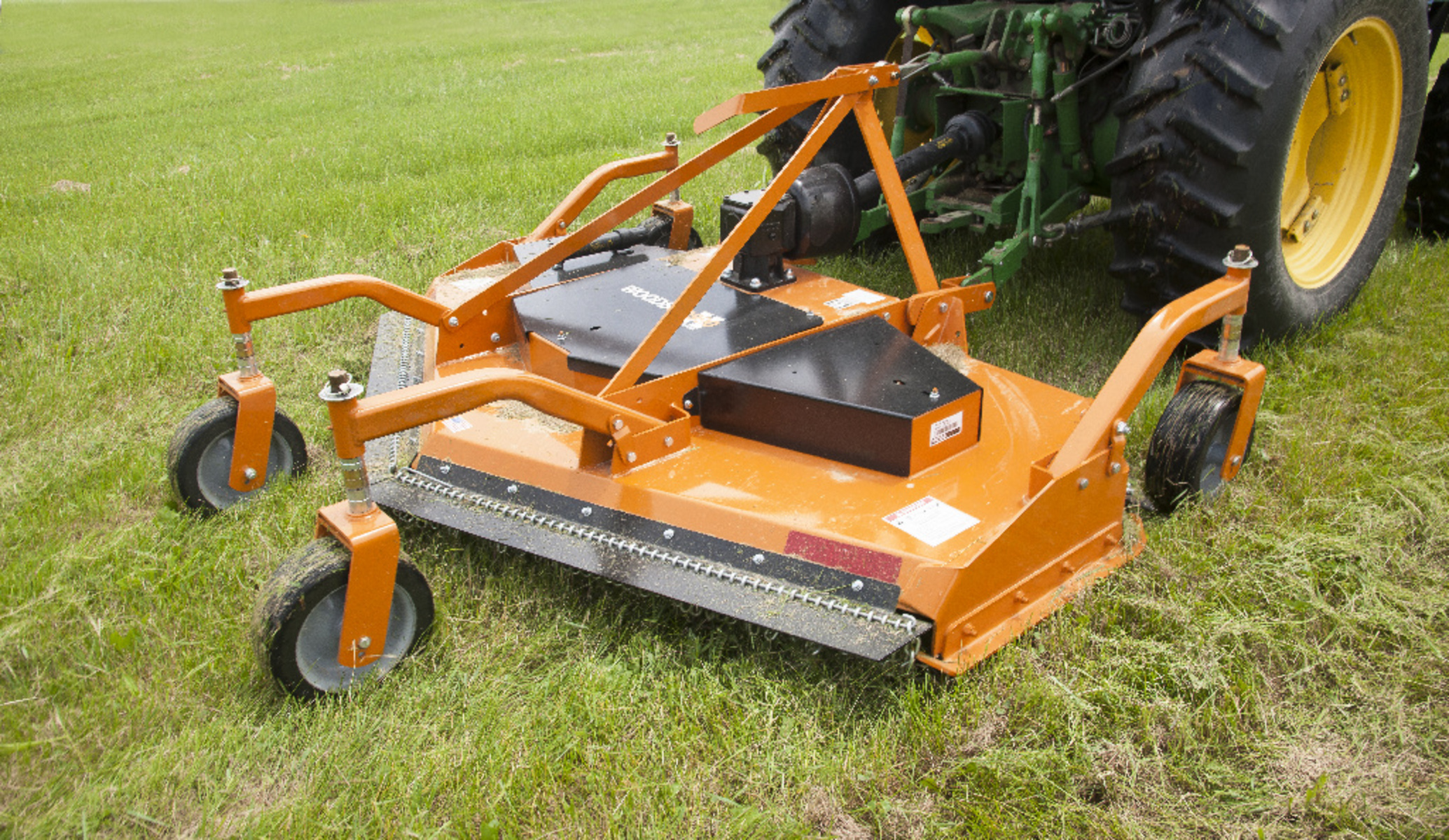

RD990-X
- Tapered roller bearings in caster wheels provide superior performance and longevity in rough conditions
- Replaceable side skids attach to heavy side frames for durability and long life
- Takes down grass and light weeds, and leaves a high grade finish cut behind
- Features a Quick-Change blade system, an extra strong double B-section belt, and anti-wrap bars that prevent damage caused by material wrapped around lower spindle
- Deep deck and stump jumper blade carrier with free-swinging blades ideal for rough grass
- Floating lower hitch points allow the mower to follow uneven terrain
- Chain shielding standard
- A 10-year gearbox warranty including labor and seals in addition to 3-year spindle protection under the Woods Cut Above™ Warranty program for confidence in your purchase decision
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
