| Tractor PTO HP |
15-35 |
|---|---|
| Approximate Operating Weight (lbs) |
480 |
| Hitch Category |
CAT 1 & Ltd CAT 1 |
| Quick-hitch Ready |
Yes |
| Cutting Width (in) |
60 |
| Overall Width (in) |
61 |
| Cutting Height (in) |
1.5-5 |
| Gearbox HP |
35 |
| Driveline Category |
CAT 2 |
| Spindle Type |
Lubed for Life |
| Spindle Housing/Bearings |
Ductile Iron/Ball |
| Sheave Type |
Cast-iron |
| Belt |
B-section Kevlar |
| Belt Adjustment |
Spring-loaded idler |
| Blade Size (in) |
.25 x 2.5 x 21 |
| Blade Overlap (in) |
1.25 |
| Blade Tip Speed (fpm) |
17,900 |
| Deck Material Thickness (ga) |
10 |
| Side Skirt |
7 ga x 4.8 deep |
| Rear Chain Shielding Option |
Yes |
| Anti-scalp Roller Options (front and rear) |
Yes |
| Blade Options |
Hi-lift/Low-lift |
| Mower Warranty |
1 year |
| Gearbox & Seal Warranty |
6 year |
| Spindle Warranty |
1 year |
| Woods C® |

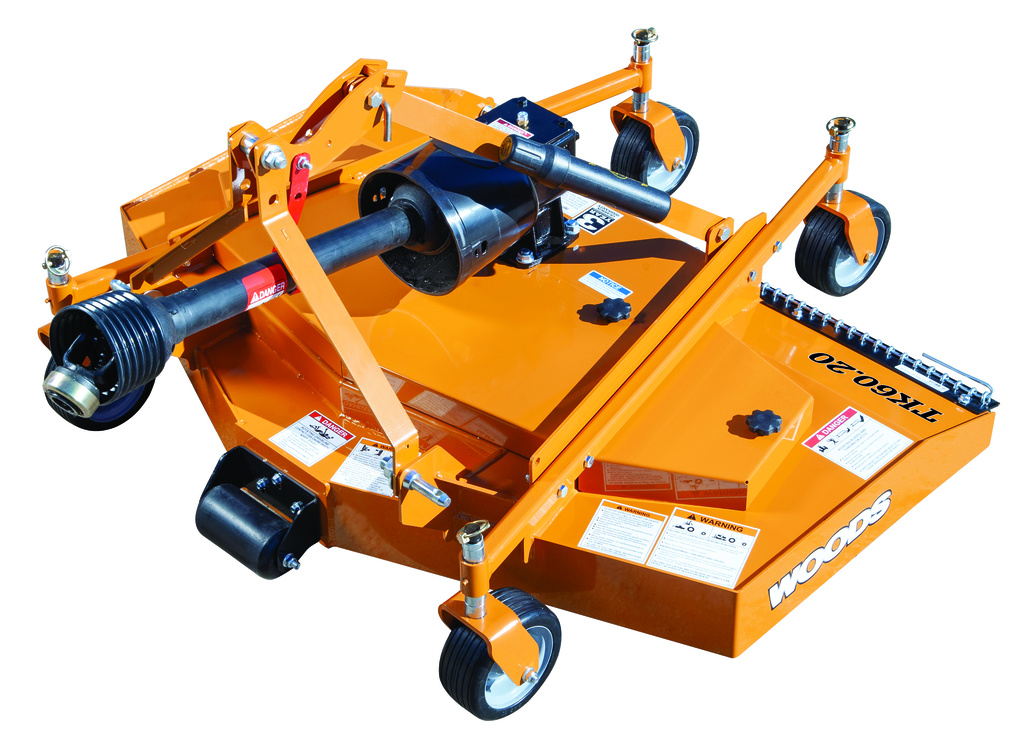

TK60.20
- Research study conducted by a leading university in turfgrass management ranks Woods® Turfkeeper and Turfkeeper Pro #1 in overall cut quality. Both models consistently outperformed three top brands of rear-mount, rear-discharge, tractor-mounted finish mowers. Read the full study.
- Completely quick-hitch ready from the factory – makes attachment to your tractor easy and no additional hardware to purchase
- High-lift blades for best in class lifting and cutting of green material for evenness of cut
- Parallel frame deck sides spread material from edge to edge for even material distribution
- High blade tip speeds enhance productivity with improved mowing at higher speeds for less time on the job
- Limited CAT 1/CAT 1 – Compatible with subcompact and compact tractors up to 35 hp
- Driveline holder – Keep the drive out of the dirt, even when attaching
- Easy shield removal – no tools needed to access belt sheaves, belt, spring-loaded idler
- Cast iron sheaves – better belt grip for extended belt life
- A 6-year gearbox warranty including labor and seals under the Woods Cut Above™ Warranty program for confidence in your purchase decision
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing. Product image shown with optional roller kit and chain shielding.
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
| Tractor Make | Tractor Model | Tractor Wheel Width |
|---|---|---|
| Tractor Make | Tractor Model | Tractor Wheel Width |
| *CaseIH | DX31 | 54.3 |
| *CaseIH | DX34 | 54.3 |
| *CaseIH | Farmall 31 | 54.3 |
| *CaseIH | Farmall 35 | 54.3 |
| *John Deere | 1023E | 47.2 |
| *John Deere | 1025R | 47.2 |
| *John Deere | 1026R | 47.2 |
| *John Deere | 2025R | 37 |
| *John Deere | 2026R | 47.2 |
| *John Deere | 2032R | 47.1 |
| *John Deere | 2036R | 50.4 |
| *John Deere | 2038R | 59.8 |
| *John Deere | 2210 | 47.9 |
| *John Deere | 2305 | 44.9 |
| *John Deere | 2320 | 37.1 |
| *John Deere | 2520 | 39.2 |
| *John Deere | 2720 | 39.2 |
| *John Deere | 3005 | 54 |
| *John Deere | 3025E | 58 |
| *John Deere | 3032E | 56.5 |
| *John Deere | 3033R | 52.1 |
| *John Deere | 3038E | 56.5 |
| *John Deere | 3038R | 52.1 |
| *John Deere | 3039R | 53.1 |
| *John Deere | 3203 | 53.1 |
| *John Deere | 3320 | 52.4 |
| *John Deere | 3520 | 52.4 |
| *John Deere | 4110 | 47 |
| *John Deere | 4115 | 47 |
| *John Deere | 4310 | 50 |
| *John Deere | 4410 | 50 |
| *Kubota | B2050 | 40.2 |
| *Kubota | B2201 | 40.2 |
| *Kubota | B2230 | 43.5 |
| *Kubota | B2231 | 48.6 |
| *Kubota | B2261 | 49.2 |
| *Kubota | B2301 | 45.3 |
| *Kubota | B2311 | 53.7 |
| *Kubota | B2320 | 45.1 |
| *Kubota | B2350 | 48.6 |
| *Kubota | B2410 | 46.3 |
| *Kubota | B2530 | 43.5 |
| *Kubota | B2601 | 49 |
| *Kubota | B2620 | 49 |
| *Kubota | B2920 | 49 |
| *Kubota | B3000 | 53.7 |
| *Kubota | B3030 | 53.7 |
| *Kubota | B3150 | 53.7 |
| *Kubota | B3200 | 53.8 |
| *Kubota | B3300SU | 53.7 |
| *Kubota | B3350 | 53.7 |
| *Kubota | B7410 | 42.4 |
| *Kubota | B7500 | 42.4 |
| *Kubota | B7510 | 42.4 |
| *Kubota | B7610 | 46.3 |
| *Kubota | BX2200 | 45.1 |
| *Kubota | BX2230 | 45.1 |
| *Kubota | BX2350 | 44.5 |
| *Kubota | BX2360 | 44.5 |
| *Kubota | BX2370 | 44.5 |
| *Kubota | BX2370-1 | 44.5 |
| *Kubota | BX2380 | 45.1 |
| *Kubota | BX2660 | 44.5 |
| *Kubota | BX2670 | 44.5 |
| *Kubota | BX2670-1 | 44.5 |
| *Kubota | BX2680 | 45.1 |
| *Kubota | L2501 | 55.1 |
| *Kubota | L2600 | 50.9 |
| *Kubota | L2800 | 51.4 |
| *Kubota | L3000 | 50.9 |
| *Kubota | L3130 | 59.8 |
| *Kubota | L3200 | 55.1 |
| *Kubota | L3240 | 59.8 |
| *Kubota | L3301 | 55.1 |
| *Kubota | L3400 | 51.4 |
| *Kubota | L3430 | 59.8 |
| *Kubota | L3540 | 59.8 |
| *Kubota | L3560 | 59.8 |
| *Kubota | L3700SU | 51.4 |
| *Kubota | L3800 | 55.1 |
| *Kubota | L3901 | 55.1 |
| *Kubota | STV32 | 48 |
| *Kubota | STV36 | 48 |
| *Kubota | STV40 | 48 |
| *Kubota | STW34 | 46.7 |
| *Kubota | STW40 | 46.7 |
| *Mahindra | 2015 | 53.5 |
| *Mahindra | 2216 | 53.5 |
| *Mahindra | 2310 | 52 |
| *Mahindra | 2415 | 54.3 |
| *Mahindra | 2516 | 54.3 |
| *Mahindra | 2615 | 59.4 |
| *Mahindra | 2810 | 52 |
| *Mahindra | 2815 | 59.8 |
| *Mahindra | 2816 | 59.4 |
| *Mahindra | 3015 | 53.7 |
| *Mahindra | 3016 | 59.8 |
| *Mahindra | 3215 | 59.8 |
| *Mahindra | 3316 | 59.8 |
| *Mahindra | 3510 | 52 |
| *Mahindra | 4010 | 59.8 |
| *Mahindra | C27 | 53.8 |
| *Mahindra | C35 | 58.1 |
| *Mahindra | eMax 22 | 47.2 |
| *Mahindra | eMax 25 | 47.2 |
| *Mahindra | eMax 25S | 50.8 |
| *Mahindra | Max 22 | 50.7 |
| *Mahindra | Max 24 | 50.7 |
| *Mahindra | Max 25 | 50.7 |
| *Mahindra | Max 26XL | 54.3 |
| *Mahindra | Max 28 XL | 54.3 |
| *Massey Ferguson | 1423 | 41 |
| *Massey Ferguson | 1428 | 55 |
| *Massey Ferguson | 1429 | 54.9 |
| *Massey Ferguson | 1431 | 51 |
| *Massey Ferguson | 1433 | 55.5 |
| *Massey Ferguson | 1523 | 42.3 |
| *Massey Ferguson | 1526 | 49.2 |
| *Massey Ferguson | 1529 | 58.1 |
| *Massey Ferguson | 1531 | 53.5 |
| *Massey Ferguson | 1532 | 58.1 |
| *Massey Ferguson | 1533 | 62 |
| *Massey Ferguson | 1726E | 52.4 |
| *Massey Ferguson | 1734E | 52.4 |
| *Massey Ferguson | 1739E | 52.4 |
| *Massey Ferguson | GC1705 | 47.25 |
| *Massey Ferguson | GC1715 | 47.25 |
| *Massey Ferguson | GC2300 | 45.8 |
| *Massey Ferguson | GC2400 | 46.9 |
| *Massey Ferguson | GC2600 | 46.9 |
| *New Holland | Boomer 1020 | 46.4 |
| *New Holland | Boomer 1025 | 46.4 |
| *New Holland | Boomer 1030 | 52 |
| *New Holland | Boomer 24 | 43.8 |
| *New Holland | TC23DA | 44.7 |
| *New Holland | TC26DA | 44.7 |
| *New Holland | TC29DA | 54.3 |
| *New Holland | TC31DA | 54.3 |
| *New Holland | TC33DA | 54.3 |
| *New Holland | TC34DA | 54.3 |
| *New Holland | TZ25DA | 45.9 |
| *New Holland | Workmaster 25S | 56.1 |
| Ag Trac | AT2514 | 62.2 |
| Ag Trac | AT3024 | 62 |
| Ag Trac | AT3814 | 60 |
| AGCO | ST22A | 45.8 |
| AGCO | ST24A | 39.4 |
| AGCO | ST25 | 41 |
| AGCO | ST28A | 49.6 |
| AGCO | ST30 | 55.5 |
| AGCO | ST32 | 51 |
| AGCO | ST33A | 49.6 |
| AGCO | ST35 | 56.3 |
| Bobcat | CT120 | 46.5 |
| Bobcat | CT122 | 46.5 |
| Bobcat | CT225 | 55.9 |
| Bobcat | CT230 | 55.9 |
| Bobcat | CT235 | 55.4 |
| Branson | 2100 | 44.3 |
| Branson | 2400 | 44.3 |
| Branson | 2800 | 44.3 |
| Branson | 2810 | 59 |
| Branson | 2910i | 59 |
| Branson | 3110i | 55 |
| Branson | 3510 | 58.3 |
| Branson | 3510h | 55.2 |
| Branson | 3510i | 55 |
| Branson | 3520 | 60 |
| Cabelas | LM25 | 45.8 |
| Century | 2028 | 59 |
| Century | C29 | 59 |
| Century | C35 | 59 |
| Challenger | MT225 | 41 |
| Challenger | MT225B | 39.4 |
| Challenger | MT255 | 51 |
| Challenger | MT255B | 50.6 |
| Cub Cadet | 6284D | 50 |
| Cub Cadet | 7000 | 46.3 |
| Cub Cadet | 7200 | 46.3 |
| Cub Cadet | 7205 | 46.3 |
| Cub Cadet | 7260 | 51.8 |
| Cub Cadet | 7264 | 48 |
| Cub Cadet | 7265 | 51.8 |
| Cub Cadet | 7300 | 54 |
| Cub Cadet | 7304 | 48 |
| Cub Cadet | 7305 | 54 |
| Cub Cadet | 7530 | 53.5 |
| Cub Cadet | 7532 | 54 |
| Cub Cadet | 8354 | 57.1 |
| Cub Cadet | Ex2900 | 59.1 |
| Cub Cadet | Ex3200 | 59.1 |
| Cub Cadet | Sc2400 | 44.5 |
| Cub Cadet | Sx3100 | 51.6 |
| Deutz-Fahr | Agrokid 25 | 42.7 |
| Deutz-Fahr | Agrokid 30 | 41 |
| Deutz-Fahr | Agrokid 35 | 48.8 |
| Farm Pro | 2010 | 48.6 |
| Farm Pro | 2420 | 56 |
| Farm Pro | 2425 | 56 |
| Farm Pro | 2430 | 56.5 |
| Farm Pro | 2510 | 50.8 |
| Farm Pro | 3010 | 56.7 |
| Ford | 1720 | 55.2 |
| Ford | 1920 | 58.5 |
| Hurlimann | Prince 325 | 50.43 |
| Hurlimann | Prince 435 | 53.58 |
| Iseki | AT23 | 49.8 |
| Iseki | AT240 | 50.4 |
| Iseki | AT25 | 52.8 |
| Iseki | AT260 | 54 |
| Iseki | AT27 | 53.7 |
| Iseki | AT280 | 54.3 |
| Iseki | AT30 | 55.7 |
| Iseki | AT310 | 55.7 |
| Iseki | AT33 | 57.3 |
| Iseki | AT340 | 55.7 |
| Iseki | AT37 | 59.7 |
| Iseki | AT370 | 60.4 |
| Iseki | AT5330 | 57.3 |
| Iseki | AT5390 | 57.3 |
| Iseki | TA530 | 53.4 |
| Iseki | TA537 | 60 |
| Iseki | TF15F | 40.9 |
| Iseki | TF17F | 42.9 |
| Iseki | TF19F | 42.9 |
| Iseki | TF21F | 45.3 |
| Iseki | TF23F | 45.3 |
| Iseki | TF26F | 45.3 |
| Iseki | TF317 | 44.3 |
| Iseki | TF321 | 44.3 |
| Iseki | TF325 | 55.6 |
| Iseki | TF327 | 47.2 |
| Iseki | TF330 | 55.6 |
| Iseki | TG313 | 56.1 |
| Iseki | TG333 | 57.5 |
| Iseki | TG353 | 60 |
| Iseki | TG5330 | 58.3 |
| Iseki | TH4260 | 49.6 |
| Iseki | TH4290 | 49.6 |
| Iseki | TH4330 | 49.6 |
| Iseki | TK527 | 51.6 |
| Iseki | TK532 | 53.4 |
| Iseki | TM170 | 39 |
| Iseki | TM18 | 40.6 |
| Iseki | TM185 | 40.2 |
| Iseki | TM217 | 46.9 |
| Iseki | TM223 | 47.8 |
| Iseki | TM3200 | 47.6 |
| Iseki | TM3215 | 43.7 |
| Iseki | TM3240 | 48.4 |
| Iseki | TM3245 | 43.7 |
| Iseki | TM3265 | 43.7 |
| Iseki | TXG23 | 46.9 |
| KIOTI | CK20 | 44.1 |
| KIOTI | CK20S | 44.1 |
| KIOTI | CK25 | 54.6 |
| KIOTI | CK2510 | 49.2 |
| KIOTI | CK2610 | 55.1 |
| KIOTI | CK27 | 54.6 |
| KIOTI | CK2810 | 49.2 |
| KIOTI | CK30 | 54.6 |
| KIOTI | CK35 | 54.6 |
| KIOTI | CK3510 | 55.1 |
| KIOTI | CK4010 | 55.1 |
| KIOTI | CS2210 | 46.7 |
| KIOTI | CS2410 | 46.5 |
| KIOTI | CS2510 | 46.7 |
| KIOTI | CS2610 | 46.5 |
| KIOTI | DK35 | 57.1 |
| KIOTI | DK40 | 59.3 |
| KIOTI | DS3510 | 51.7 |
| KIOTI | LB1914 | 46.5 |
| KIOTI | LK2554 | 50.9 |
| KIOTI | LK30 | 51.4 |
| KIOTI | LK3054 | 51.7 |
| KIOTI | LK3504 | 52.9 |
| Lenar | FS180 | 45.5 |
| Lenar | FS274 | 55.1 |
| Lenar | JL254 | 53 |
| LS | J2020H | 44.9 |
| LS | J2030H | 44.9 |
| LS | S3010 | 49.7 |
| Mahindra Gujarat | 312 | 69.3 |
| McCormick Intl | CT28 | 66.5 |
| McCormick Intl | G25 | 34.25 |
| McCormick Intl | G30R | 37.7 |
| Minot | 20 | 56 |
| Minot | 20 II | 48.6 |
| Minot | 25 | 57 |
| Minot | 30 | 56.5 |
| Minot | 30 II | 56.7 |
| Mitsubishi | GA28 | 59.8 |
| Mitsubishi | GA30 | 59.8 |
| Mitsubishi | GA300 | 59.5 |
| Mitsubishi | GA32 | 59.8 |
| Mitsubishi | GA330 | 59.5 |
| Mitsubishi | GX34 | 59.5 |
| Mitsubishi | MT1800 | 41.5 |
| Mitsubishi | MT200 | 46 |
| Mitsubishi | MT2000 | 46.3 |
| Mitsubishi | MT25 | 54.3 |
| Mitsubishi | MT260 | 52 |
| Mitsubishi | MT2600 | 55.1 |
| Mitsubishi | MT28 | 55.1 |
| Mitsubishi | MT3000 | 54.3 |
| Mitsubishi | MT301 | 54 |
| Mitsubishi | MT338 | 57.9 |
| Mitsubishi | MT3500 | 54.3 |
| Montana | 2840 | 49.8 |
| Montana | T2334 | 49 |
| Montana | T2734 | 52.8 |
| SAME | Solaris 25 | 44.13 |
| SAME | Solaris 35 | 40.19 |
| Shaktimaan | 30 | 66.5 |
| Shibaura | SE2540 | 59.3 |
| Sonalika | DI 730 III | 67.7 |
| Sonalika | DI 732 III | 67.7 |
| TYM | T233 | 49 |
| TYM | T273 | 49 |
| TYM | T280 | 50 |
| TYM | T290 | 52 |
| TYM | T293 | 56.3 |
| TYM | T300 | 53.5 |
| TYM | T330 | 52 |
| TYM | T350 | 60 |
| TYM | T353 | 53.5 |
| Wuzheng | WZ180 | 59.5 |
| Wuzheng | WZ200 | 46.1 |
| Wuzheng | WZ250 | 57.1 |
| Wuzheng | WZ300 | 57.1 |
| Wuzheng | WZ350 | 57.1 |
| Wuzheng | WZ354 | 57.1 |
| Yanmar | SA425 | 54.1 |
| Yanmar | SA425DHX | 54.1 |
