Finish Mowers

New
Click to enlarge
Home Products Finish Mowers Rear-mount Mowers TKP72.40
Compact/Subcompact

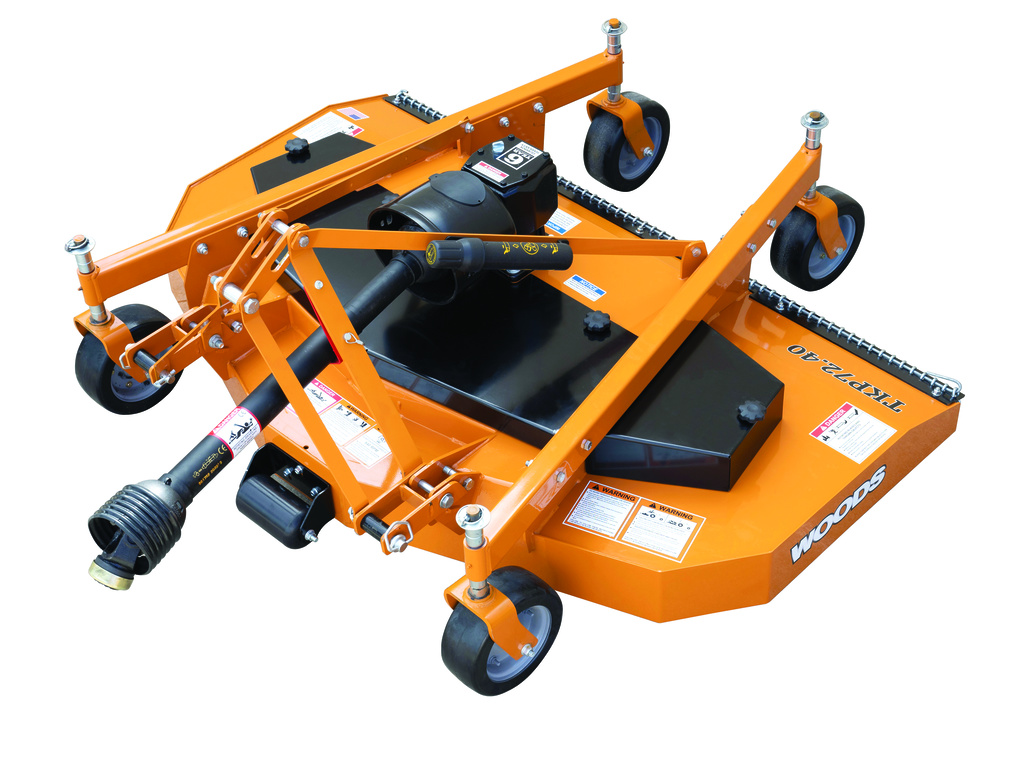

TKP72.40

  • Research study conducted by a leading university in turfgrass management ranks Woods® Turfkeeper and Turfkeeper Pro #1 in overall cut quality. Both models consistently outperformed three top brands of rear-mount, rear-discharge, tractor-mounted finish mowers. Read the full study.
  • Heavy duty construction provides maximum durability for commercial and residential use
  • Completely quick-hitch ready from the factory – makes attachment to your tractor easy and no additional hardware to purchase
  • High-lift blades for best in class lifting and cutting of green material for evenness of cut
  • Parallel frame deck sides spread material from edge to edge for even material distribution
  • High blade tip speeds enhance productivity with improved mowing at higher speeds for less time on the job
  • Limited CAT 1 (TKP60.40 only) and CAT 1 – Compatible with subcompact and compact tractors up to 50 PTO hp
  • Driveline holder – Keep the drive out of the dirt, even when attaching
  • Easy shield removal – no tools needed to access belt sheaves, belt, spring-loaded idler
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Add to Compare
Add to Quote
This product is already in quote request list.
View Quote Request
SKU: TKP72.40 Categories: Finish Mowers, Rear-mount Mowers
Share:
  • Specifications
  • Downloads
  • TRACTOR COMPATIBILITY
Specifications
Tractor PTO HP

20-50

Product Weight (lbs)

686

Shipping Weight (lbs)

779

Hitch Category

CAT 1

Quick-hitch Ready

Yes

Floating Lower Hitch

Yes

Cutting Width (in)

72

Overall Width (in)

73

Cutting Height (in)

1.5-5

Gearbox HP

60

Driveline Category

CAT 3

Spindle Housing

Ductile iron

Spindle Bearings

Triple ball bearings

Greasable Spindle

Yes

Spindle Sheave Type

Cast-iron

Belt

B-section Aramid

Belt Adjustment

Spring-loaded with bearing pivot

Blade Size (in)

.25 x 2.5 x 25

Blade Overlap (in)

1.5

Blade Tip Speed (fpm)

18,100

Deck Thickness (ga)

7

Deck Depth (in)

5.38

Lower Hitch Type

Clevis

Caster Pivot Bushings

Yes

Belt Cover

Yes

Rear Chain Shielding Option

Yes

Blade Options

Hi-lift, low-lift, mulch

Gearbox Warranty

6 year

Mower Warranty

1 year

Spindle Warranty

3 year

Woods C®

Compact/Subcompact

Downloads

Product Brochure Manual Cut Quality Study

TRACTOR COMPATIBILITY

This attachment fits the following tractors.

Please consult your local dealer for more information and assistance making the best choice for your situation.

Tractor Make Tractor Model Tractor Wheel Width
Tractor Make Tractor Model Tractor Wheel Width
Ag Trac AT2514 62.2
Ag Trac AT3024 62
Ag Trac AT3814 60
AGCO ST28A 49.6
AGCO ST30 55.5
AGCO ST32 51
AGCO ST33A 49.6
AGCO ST34A 62
AGCO ST35 56.3
AGCO ST40 60.2
AGCO ST41A 62
Belarus 5530 66.75
Bobcat CT120 46.5
Bobcat CT122 46.5
Bobcat CT225 55.9
Bobcat CT230 55.9
Bobcat CT235 55.4
Bobcat CT335 62.6
Branson 2100 44.3
Branson 2400 44.3
Branson 2800 44.3
Branson 2810 59
Branson 2910i 59
Branson 3110i 55
Branson 3510 58.3
Branson 3510h 55.2
Branson 3510i 55
Branson 3520 60
Branson 3820 61
Branson 3820i 56
Branson 4020 60
Branson 4720 61
Branson F3550 60.6
Cabelas LM25 45.8
Cabelas LM35 62.25
CaseIH D35 61.3
CaseIH D40 61.3
CaseIH DX31 54.3
CaseIH DX34 54.3
CaseIH DX35 66.6
CaseIH DX40 66.6
CaseIH Farmall 30C 66.4
CaseIH Farmall 31 54.3
CaseIH Farmall 35 54.3
CaseIH Farmall 35C 66.4
CaseIH Farmall 40 66.6
CaseIH Farmall 40C 69.1
Century 2028 59
Century 2535 59
Century 3035 61
Century C29 59
Century C35 59
Century C38 61
Challenger MT255 51
Challenger MT255B 50.6
Challenger MT265 60.6
Challenger MT265B 62.2
Challenger MT275 60.6
Challenger MT275B 62.2
Challenger MT285 60.6
Cub Cadet 6284D 50
Cub Cadet 7260 51.8
Cub Cadet 7264 48
Cub Cadet 7265 51.8
Cub Cadet 7300 54
Cub Cadet 7304 48
Cub Cadet 7305 54
Cub Cadet 7360 58.3
Cub Cadet 7530 53.5
Cub Cadet 7532 54
Cub Cadet 8354 57.1
Cub Cadet Ex2900 59.1
Cub Cadet Ex3200 59.1
Cub Cadet Sx3100 51.6
Deutz-Fahr Agrokid 210 49.3
Deutz-Fahr Agrokid 25 42.7
Deutz-Fahr Agrokid 30 41
Deutz-Fahr Agrokid 35 48.8
Deutz-Fahr Agrokid 40 48
Farm Pro 2010 48.6
Farm Pro 2420 56
Farm Pro 2425 56
Farm Pro 2430 56.5
Farm Pro 2510 50.8
Farm Pro 3010 56.7
Farm Pro 4010 64
Farm Pro 4020 68.9
Ford 1720 55.2
Ford 1920 58.5
Hurlimann Prince 325 50.43
Hurlimann Prince 35 48
Hurlimann Prince 435 53.58
Iseki AT23 49.8
Iseki AT240 50.4
Iseki AT25 52.8
Iseki AT260 54
Iseki AT27 53.7
Iseki AT280 54.3
Iseki AT30 55.7
Iseki AT310 55.7
Iseki AT33 57.3
Iseki AT340 55.7
Iseki AT37 59.7
Iseki AT370 60.4
Iseki AT5330 57.3
Iseki AT5390 57.3
Iseki TA530 53.4
Iseki TA537 60
Iseki TF21F 45.3
Iseki TF23F 45.3
Iseki TF325 55.6
Iseki TF327 47.2
Iseki TF330 55.6
Iseki TG313 56.1
Iseki TG333 57.5
Iseki TG353 60
Iseki TG373 60
Iseki TG5330 58.3
Iseki TG5390 59.1
Iseki TG6370 60.8
Iseki TG6400 60.8
Iseki TH4260 49.6
Iseki TH4290 49.6
Iseki TH4330 49.6
Iseki TK527 51.6
Iseki TK532 53.4
Iseki TM223 47.8
Iseki TM3240 48.4
Iseki TM3245 43.7
Iseki TM3265 43.7
Iseki TXG23 46.9
John Deere 2036R 50.4
John Deere 2038R 59.8
John Deere 3038E 56.5
John Deere 3038R 52.1
John Deere 3039R 53.1
John Deere 3520 52.4
John Deere 4210 53
John Deere 4310 50
John Deere 4410 50
John Deere 4510 62
John Deere 5036C 68.5
John Deere 5038D 68.7
John Deere 5039C 68.5
John Deere 5039D 68.7
John Deere 5103E 65
KIOTI CK25 54.6
KIOTI CK2610 55.1
KIOTI CK27 54.6
KIOTI CK2810 49.2
KIOTI CK30 54.6
KIOTI CK35 54.6
KIOTI CK3510 55.1
KIOTI CK4010 55.1
KIOTI DK35 57.1
KIOTI DK35SE 61.6
KIOTI DK40 59.3
KIOTI DK4510 62.8
KIOTI DK5010 62.8
KIOTI DK5510 62.8
KIOTI DS3510 51.7
KIOTI EX35 63.6
KIOTI LK2554 50.9
KIOTI LK30 51.4
KIOTI LK3054 51.7
KIOTI LK3504 52.9
KIOTI NX4510 65.6
KIOTI NX5010 65.6
KIOTI NX5510 65.7
KIOTI NX6010 65.7
KIOTI RX6010 68.1
Kubota B2311 53.7
Kubota B2630 53.7
Kubota B2650 53.7
Kubota B2710 53.8
Kubota B2910 53.8
Kubota B3150 53.7
Kubota B3350 53.7
Kubota B7800 53.8
Kubota L3130 59.8
Kubota L3240 59.8
Kubota L3301 55.1
Kubota L3430 59.8
Kubota L3540 59.8
Kubota L3560 59.8
Kubota L3700SU 51.4
Kubota L3800 55.1
Kubota L3830 66.5
Kubota L3901 55.1
Kubota L3940 66.5
Kubota L5030 67
Kubota STV40 48
Lenar FS274 55.1
Lenar JL254 53
LS J2020H 44.9
LS J2030H 44.9
LS S3010 49.7
Mahindra 1526 63
Mahindra 1533 63
Mahindra 1538 62
Mahindra 1626 63
Mahindra 1635 63
Mahindra 1640 62
Mahindra 2525 57.5
Mahindra 2538 59.8
Mahindra 2540 59.8
Mahindra 2555 71.1
Mahindra 2565 71.5
Mahindra 2615 59.4
Mahindra 2638 63.2
Mahindra 2810 52
Mahindra 2815 59.8
Mahindra 2816 59.4
Mahindra 3015 53.7
Mahindra 3016 59.8
Mahindra 3215 59.8
Mahindra 3316 59.8
Mahindra 3325 69.4
Mahindra 3510 52
Mahindra 3525 69.4
Mahindra 3535 69.4
Mahindra 3616 62
Mahindra 4010 59.8
Mahindra 475 67
Mahindra C27 53.8
Mahindra C35 58.1
Mahindra Max 25 50.7
Mahindra Max 26XL 54.3
Mahindra Max 28 XL 54.3
Mahindra Gujarat 312 69.3
Mahindra Gujarat 353 69.5
Mahindra Gujarat 405 70.3
Massey Ferguson 1433 55.5
Massey Ferguson 1440 60.2
Massey Ferguson 1528 53.5
Massey Ferguson 1529 58.1
Massey Ferguson 1532 58.1
Massey Ferguson 1533 62
Massey Ferguson 1540 62
Massey Ferguson 1635 64.5
Massey Ferguson 1734E 52.4
Massey Ferguson 1735M 64.2
Massey Ferguson 1736 64.2
Massey Ferguson 1739E 52.4
Massey Ferguson 1740M 64.2
Massey Ferguson 2605 66
McCormick Intl CT28 66.5
McCormick Intl CT36 66.5
McCormick Intl G25 34.25
McCormick Intl G30R 37.7
McCormick Intl GX40 52
Minot 20 56
Minot 20 II 48.6
Minot 25 57
Minot 30 56.5
Minot 30 II 56.7
Mitsubishi GA28 59.8
Mitsubishi GA30 59.8
Mitsubishi GA300 59.5
Mitsubishi GA32 59.8
Mitsubishi GA330 59.5
Mitsubishi GA36 59.8
Mitsubishi GA360 59.5
Mitsubishi GAK32 65.4
Mitsubishi GAK330 65.2
Mitsubishi GAK36 65.4
Mitsubishi GAK360 65.2
Mitsubishi GX34 59.5
Mitsubishi GX3600 55.5
Mitsubishi GX37 59.5
Mitsubishi GX371 59.5
Mitsubishi GX40 61.2
Mitsubishi GX401 61.2
Mitsubishi MT25 54.3
Mitsubishi MT260 52
Mitsubishi MT2600 55.1
Mitsubishi MT28 55.1
Mitsubishi MT3000 54.3
Mitsubishi MT301 54
Mitsubishi MT338 57.9
Mitsubishi MT3500 54.3
Mitsubishi MT36 55.1
Mitsubishi MT368 57.9
Mitsubishi MT408 61.2
Montana 2840 49.8
Montana T2334 49
Montana T2734 52.8
New Holland Boomer 2030 62
New Holland Boomer 2035 62
New Holland Boomer 35 66.4
New Holland T1510 62
New Holland T1520 62
New Holland TC31DA 54.3
New Holland TC33DA 54.3
New Holland TC34DA 54.3
New Holland TC35 61.3
New Holland TC35A 66.6
New Holland TC40 61.3
New Holland TC40A 66.6
New Holland Workmaster 33 66.5
New Holland Workmaster 35 66.5
New Holland Workmaster 37 66.5
New Holland Workmaster 40 66.5
SAME Solaris 25 44.13
SAME Solaris 35 40.19
Shaktimaan 30 66.5
Shaktimaan 35 69.3
Shibaura SE2540 59.3
Sonalika DI 730 III 67.7
Sonalika DI 732 III 67.7
Sonalika DI 735 67.7
Sonalika DI 740 67.7
TYM T233 49
TYM T273 49
TYM T280 50
TYM T290 52
TYM T293 56.3
TYM T300 53.5
TYM T330 52
TYM T350 60
TYM T353 53.5
Ursus 2812 71.7
Wuzheng WZ250 57.1
Wuzheng WZ300 57.1
Wuzheng WZ350 57.1
Wuzheng WZ354 57.1
Wuzheng WZ404 51.4

Related products

Sold out

TBW204

New

TK72.20

Close
All Product Categories
  • Batwing® Cutters
  • Rigid Rotary Cutters
    • Single-spindle Cutters
      • BrushBull™ Premium Cutters
      • RC-series Standard Cutters
    • Ditch Bank Cutters
    • Dual Spindle Cutters
  • Finish Mowers
    • Rear-mount Mowers
    • Turf Batwing Mowers
  • Seeders
    • Precision Super Seeders
    • Compact Super Seeders
    • Food Plot Seeders
  • Groundbreaker® Backhoes
  • Tillage
    • Disc Harrows
    • Rotary Tillers
  • Dirt Working
    • Box Scrapers
    • Grading Scrapers
    • Landscape Rakes
    • Post Hole Diggers
    • Rear Blades
  • Snow Blowers
  • Flail Shredders
  • Stump Grinders
  • Hitches
  • Loader Attachments
    • Bale Spears
    • Pallet Forks
Compare List
No products to compare
Quote List

No products in the list

Rely On Your Woods Dealer

to help you choose the right equipment to get the job done.

Find A Dealer

WARNING! Some images may show safety shields removed to provide a better view. Equipment should never be operated with any safety shield removed. Some machines may be shown with optional equipment. Always operate machines in accordance with supplied operator’s manuals. ©2022 Woods Equipment Company. All rights reserved. WOODS and Woods logo are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company are the property of their respective companies or mark holders. Specifications subject to change without notice.

  • CONTACT
  • CAREERS
Products
  • Batwing® Cutters
  • Rigid Rotary Cutters
  • Finish Mowers
  • Seeders
  • Groundbreaker® Backhoes
  • Tillage
  • Dirt Working
  • Snow Blowers
  • Flail Shredders
  • Hitches
  • Loader Attachments
Parts & Support
  • Find Manuals
  • Where To Buy
  • Match My Tractor
  • Tech Tips
News
  • News
  • Events
Company
  • Our Story
  • Our Innovations
  • Our Partnerships
  • Government Programs
  • Woods Financing
  • Join Power Team
  • DEALER LOCATOR
  • DEALER LOGIN
  • WOODS GEAR




  • Privacy
  • |
  • Cookie Notice
  • |
  • Terms Of Use
  • |
  • Opt-Out
© 2022 All Rights Reserved.
Close
×
  • Home
  • Products
  • Parts & Support
  • News
  • Company
    • Our Story
      • Our Innovations
      • Our Partnerships
    • Government Programs
    • Woods Financing
  • Contact
  • Dealer Locator
  • Request a Quote
  • Dealer Login
  • Woods Gear
  • Careers
Facebook Twitter Email linkedin
Sidebar
