Tractor PTO HP |
25-50 |
---|---|
Product Weight (lbs) |
790 |
Shipping Weight (lbs) |
898 |
Hitch Category |
CAT 1 |
Quick-hitch Ready |
Yes |
Floating Lower Hitch |
Yes |
Cutting Width (in) |
84 |
Overall Width (in) |
85 |
Cutting Height (in) |
1.5-5 |
Gearbox HP |
60 |
Driveline Category |
CAT 3 |
Spindle Housing |
Ductile iron |
Spindle Bearings |
Triple ball bearings |
Greasable Spindle |
Yes |
Spindle Sheave Type |
Cast-iron |
Belt |
B-section Aramid |
Belt Adjustment |
Spring-loaded with bearing pivot |
Blade Size (in) |
.313 x 2.5 x 29 |
Blade Overlap (in) |
1.5 |
Blade Tip Speed (fpm) |
18,100 |
Deck Thickness (ga) |
7 |
Deck Depth (in) |
5.38 |
Lower Hitch Type |
Clevis |
Caster Pivot Bushings |
Yes |
Belt Cover |
Yes |
Rear Chain Shielding Option |
Yes |
Blade Options |
Hi-lift, low-lift, mulch |
Gearbox Warranty |
10 year |
Mower Warranty |
1 year |
Spindle Warranty |
3 year |
Woods C® |
TKP84.40
- Research study conducted by a leading university in turfgrass management ranks Woods® Turfkeeper and Turfkeeper Pro #1 in overall cut quality. Both models consistently outperformed three top brands of rear-mount, rear-discharge, tractor-mounted finish mowers. Read the full study.
- Heavy duty construction provides maximum durability for commercial and residential use
- Completely quick-hitch ready from the factory – makes attachment to your tractor easy and no additional hardware to purchase
- High-lift blades for best in class lifting and cutting of green material for evenness of cut
- Parallel frame deck sides spread material from edge to edge for even material distribution
- High blade tip speeds enhance productivity with improved mowing at higher speeds for less time on the job
- Limited CAT 1 (TKP60.40 only) and CAT 1 – Compatible with subcompact and compact tractors up to 50 PTO hp
- Driveline holder – Keep the drive out of the dirt, even when attaching
- Easy shield removal – no tools needed to access belt sheaves, belt, spring-loaded idler
- A 10-year gearbox warranty including labor and seals in addition to 3-year spindle protection under the Woods Cut Above™ Warranty program for confidence in your purchase decision.

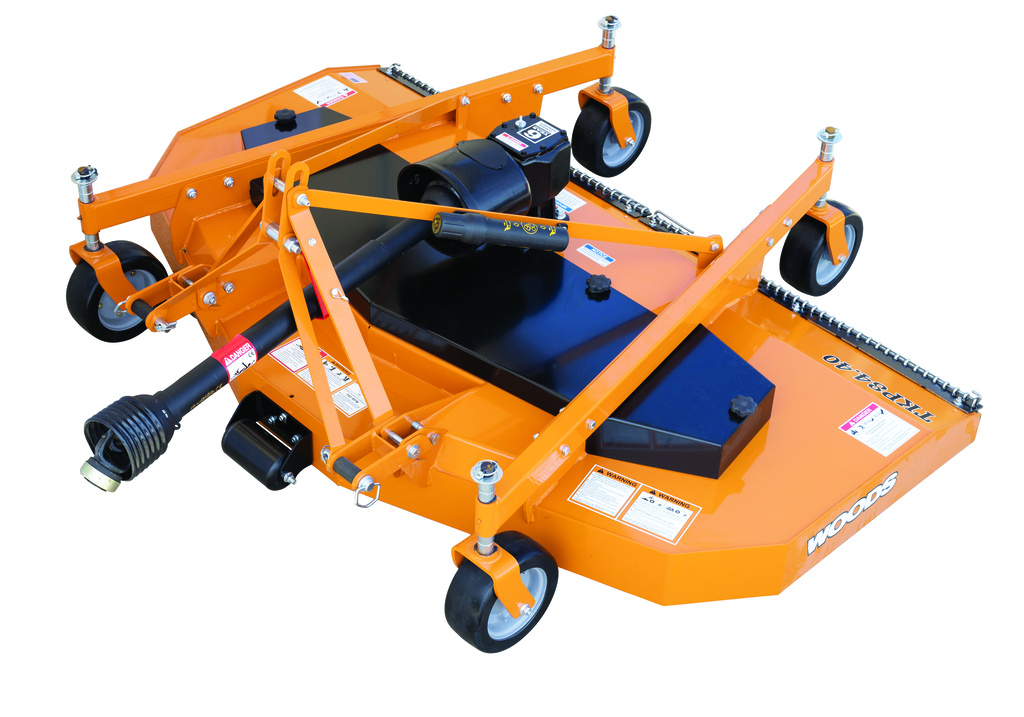

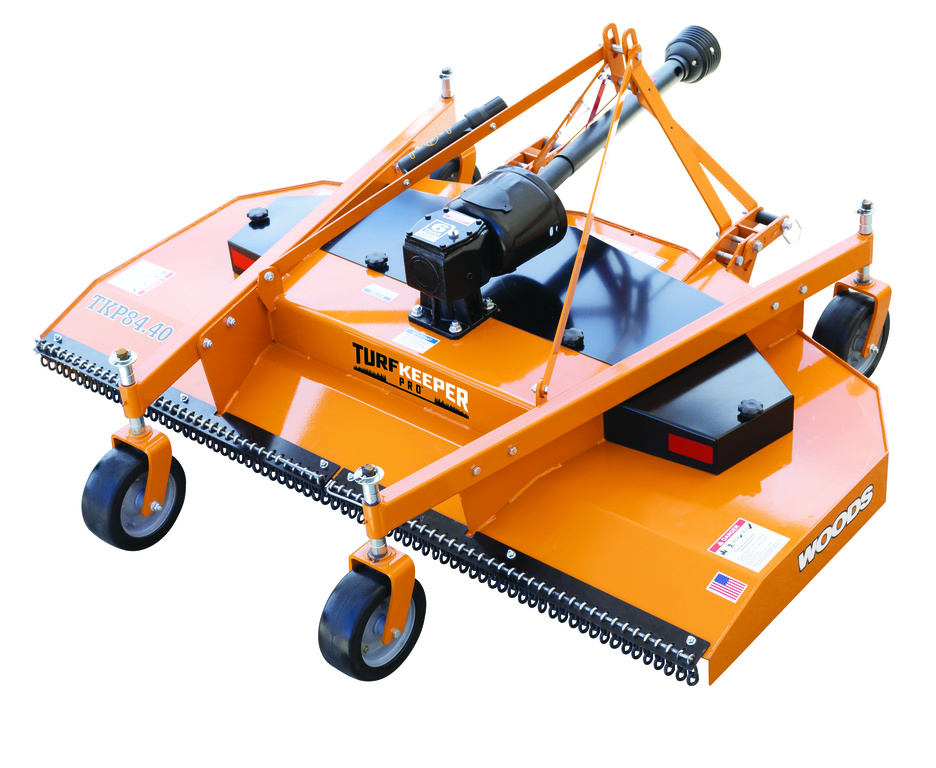

- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing. Product image shown with optional roller kit and chain shielding.
SKU:
TKP84.40
Categories: Finish Mowers, Rear-mount Mowers
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
Tractor Make | Tractor Model | Tractor Wheel Width |
---|---|---|
Tractor Make | Tractor Model | Tractor Wheel Width |
*CaseIH | CS 52 | 74.8 |
*CaseIH | D35 | 61.3 |
*CaseIH | D40 | 61.3 |
*CaseIH | DX31 | 54.3 |
*CaseIH | DX34 | 54.3 |
*CaseIH | DX35 | 66.6 |
*CaseIH | DX40 | 66.6 |
*CaseIH | Farmall 30C | 66.4 |
*CaseIH | Farmall 31 | 54.3 |
*CaseIH | Farmall 35 | 54.3 |
*CaseIH | Farmall 35C | 66.4 |
*CaseIH | Farmall 40 | 66.6 |
*CaseIH | Farmall 40C | 69.1 |
*John Deere | 2036R | 50.4 |
*John Deere | 2038R | 59.8 |
*John Deere | 3038E | 56.5 |
*John Deere | 3038R | 52.1 |
*John Deere | 3039R | 53.1 |
*John Deere | 3520 | 52.4 |
*John Deere | 4410 | 50 |
*John Deere | 4510 | 62 |
*John Deere | 5036C | 68.5 |
*John Deere | 5038D | 68.7 |
*John Deere | 5039C | 68.5 |
*John Deere | 5039D | 68.7 |
*John Deere | 5103E | 65 |
*Kubota | L3430 | 59.8 |
*Kubota | L3540 | 59.8 |
*Kubota | L3560 | 59.8 |
*Kubota | L3700SU | 51.4 |
*Kubota | L3800 | 55.1 |
*Kubota | L3830 | 66.5 |
*Kubota | L3901 | 55.1 |
*Kubota | L3940 | 66.5 |
*Kubota | M5660SU | 73.2 |
*Kubota | STV40 | 48 |
*Mahindra | 1533 | 63 |
*Mahindra | 1538 | 62 |
*Mahindra | 1635 | 63 |
*Mahindra | 1640 | 62 |
*Mahindra | 2538 | 59.8 |
*Mahindra | 2540 | 59.8 |
*Mahindra | 2555 | 71.1 |
*Mahindra | 2565 | 71.5 |
*Mahindra | 2615 | 59.4 |
*Mahindra | 2638 | 63.2 |
*Mahindra | 3325 | 69.4 |
*Mahindra | 3510 | 52 |
*Mahindra | 3525 | 69.4 |
*Mahindra | 3535 | 69.4 |
*Mahindra | 3540 | 75.4 |
*Mahindra | 3550 | 75.4 |
*Mahindra | 3616 | 62 |
*Mahindra | 4035 | 73.7 |
*Mahindra | 4540 | 82.6 |
*Mahindra | 4550 | 82.6 |
*Mahindra | 4565 | 78 |
*Mahindra | 475 | 67 |
*Mahindra | 5545 | 72.5 |
*Mahindra | 5555 | 79 |
*Mahindra | C35 | 58.1 |
*Massey Ferguson | 1440 | 60.2 |
*Massey Ferguson | 1532 | 58.1 |
*Massey Ferguson | 1540 | 62 |
*Massey Ferguson | 1735M | 64.2 |
*Massey Ferguson | 1736 | 64.2 |
*Massey Ferguson | 1739E | 52.4 |
*Massey Ferguson | 1740M | 64.2 |
*Massey Ferguson | 2605 | 66 |
*New Holland | Boomer 2035 | 62 |
*New Holland | Boomer 35 | 66.4 |
*New Holland | T1520 | 62 |
*New Holland | TC33DA | 54.3 |
*New Holland | TC34DA | 54.3 |
*New Holland | TC35 | 61.3 |
*New Holland | TC35A | 66.6 |
*New Holland | TC40 | 61.3 |
*New Holland | TC40A | 66.6 |
*New Holland | Workmaster 35 | 66.5 |
*New Holland | Workmaster 37 | 66.5 |
*New Holland | Workmaster 40 | 66.5 |
Ag Trac | AT3024 | 62 |
Ag Trac | AT3814 | 60 |
AGCO | ST28A | 49.6 |
AGCO | ST30 | 55.5 |
AGCO | ST32 | 51 |
AGCO | ST33A | 49.6 |
AGCO | ST34A | 62 |
AGCO | ST35 | 56.3 |
AGCO | ST40 | 60.2 |
AGCO | ST41A | 62 |
Belarus | 5530 | 66.75 |
Bobcat | CT225 | 55.9 |
Bobcat | CT230 | 55.9 |
Bobcat | CT235 | 55.4 |
Bobcat | CT335 | 62.6 |
Branson | 2800 | 44.3 |
Branson | 2810 | 59 |
Branson | 2910i | 59 |
Branson | 3110i | 55 |
Branson | 3510 | 58.3 |
Branson | 3510h | 55.2 |
Branson | 3510i | 55 |
Branson | 3520 | 60 |
Branson | 3820 | 61 |
Branson | 3820i | 56 |
Branson | 4020 | 60 |
Branson | 4720 | 61 |
Branson | F3550 | 60.6 |
Cabelas | LM35 | 62.25 |
Century | 2028 | 59 |
Century | 2535 | 59 |
Century | 3035 | 61 |
Century | C29 | 59 |
Century | C35 | 59 |
Century | C38 | 61 |
Challenger | MT265 | 60.6 |
Challenger | MT265B | 62.2 |
Challenger | MT275 | 60.6 |
Challenger | MT275B | 62.2 |
Challenger | MT285 | 60.6 |
Cub Cadet | 7260 | 51.8 |
Cub Cadet | 7264 | 48 |
Cub Cadet | 7265 | 51.8 |
Cub Cadet | 7300 | 54 |
Cub Cadet | 7304 | 48 |
Cub Cadet | 7305 | 54 |
Cub Cadet | 7360 | 58.3 |
Cub Cadet | 7530 | 53.5 |
Cub Cadet | 7532 | 54 |
Cub Cadet | 8354 | 57.1 |
Cub Cadet | Ex2900 | 59.1 |
Cub Cadet | Ex3200 | 59.1 |
Cub Cadet | Sx3100 | 51.6 |
Deutz-Fahr | Agrokid 210 | 49.3 |
Deutz-Fahr | Agrokid 30 | 41 |
Deutz-Fahr | Agrokid 35 | 48.8 |
Deutz-Fahr | Agrokid 40 | 48 |
Farm Pro | 2430 | 56.5 |
Farm Pro | 3010 | 56.7 |
Farm Pro | 4010 | 64 |
Farm Pro | 4020 | 68.9 |
Ford | 1920 | 58.5 |
Hurlimann | Prince 325 | 50.43 |
Hurlimann | Prince 35 | 48 |
Hurlimann | Prince 435 | 53.58 |
Iseki | AT260 | 54 |
Iseki | AT27 | 53.7 |
Iseki | AT280 | 54.3 |
Iseki | AT30 | 55.7 |
Iseki | AT310 | 55.7 |
Iseki | AT33 | 57.3 |
Iseki | AT340 | 55.7 |
Iseki | AT37 | 59.7 |
Iseki | AT370 | 60.4 |
Iseki | AT5330 | 57.3 |
Iseki | AT5390 | 57.3 |
Iseki | TA530 | 53.4 |
Iseki | TA537 | 60 |
Iseki | TF327 | 47.2 |
Iseki | TF330 | 55.6 |
Iseki | TG313 | 56.1 |
Iseki | TG333 | 57.5 |
Iseki | TG353 | 60 |
Iseki | TG373 | 60 |
Iseki | TG5330 | 58.3 |
Iseki | TG5390 | 59.1 |
Iseki | TG6370 | 60.8 |
Iseki | TG6400 | 60.8 |
Iseki | TH4290 | 49.6 |
Iseki | TH4330 | 49.6 |
Iseki | TK527 | 51.6 |
Iseki | TK532 | 53.4 |
Iseki | TM3265 | 43.7 |
KIOTI | CK35 | 54.6 |
KIOTI | CK3510 | 55.1 |
KIOTI | CK4010 | 55.1 |
KIOTI | DK35 | 57.1 |
KIOTI | DK35SE | 61.6 |
KIOTI | DK40 | 59.3 |
KIOTI | DK4510 | 62.8 |
KIOTI | DK5010 | 62.8 |
KIOTI | DK5510 | 62.8 |
KIOTI | DS3510 | 51.7 |
KIOTI | EX35 | 63.6 |
KIOTI | LK3504 | 52.9 |
KIOTI | NX4510 | 65.6 |
KIOTI | NX5010 | 65.6 |
KIOTI | NX5510 | 65.7 |
KIOTI | NX6010 | 65.7 |
KIOTI | RX6010 | 68.1 |
Lenar | FS274 | 55.1 |
Lenar | JL254 | 53 |
LS | J2030H | 44.9 |
LS | S3010 | 49.7 |
Mahindra Gujarat | 312 | 69.3 |
Mahindra Gujarat | 353 | 69.5 |
Mahindra Gujarat | 405 | 70.3 |
McCormick Intl | CT28 | 66.5 |
McCormick Intl | CT36 | 66.5 |
McCormick Intl | GX40 | 52 |
Minot | 25 | 57 |
Minot | 30 | 56.5 |
Minot | 30 II | 56.7 |
Mitsubishi | GA28 | 59.8 |
Mitsubishi | GA30 | 59.8 |
Mitsubishi | GA300 | 59.5 |
Mitsubishi | GA32 | 59.8 |
Mitsubishi | GA330 | 59.5 |
Mitsubishi | GA36 | 59.8 |
Mitsubishi | GA360 | 59.5 |
Mitsubishi | GAK32 | 65.4 |
Mitsubishi | GAK330 | 65.2 |
Mitsubishi | GAK36 | 65.4 |
Mitsubishi | GAK360 | 65.2 |
Mitsubishi | GX34 | 59.5 |
Mitsubishi | GX3600 | 55.5 |
Mitsubishi | GX37 | 59.5 |
Mitsubishi | GX371 | 59.5 |
Mitsubishi | GX40 | 61.2 |
Mitsubishi | GX401 | 61.2 |
Mitsubishi | MT25 | 54.3 |
Mitsubishi | MT260 | 52 |
Mitsubishi | MT2600 | 55.1 |
Mitsubishi | MT28 | 55.1 |
Mitsubishi | MT3000 | 54.3 |
Mitsubishi | MT301 | 54 |
Mitsubishi | MT338 | 57.9 |
Mitsubishi | MT3500 | 54.3 |
Mitsubishi | MT36 | 55.1 |
Mitsubishi | MT368 | 57.9 |
Mitsubishi | MT408 | 61.2 |
Montana | 2840 | 49.8 |
Montana | T2734 | 52.8 |
SAME | Solaris 25 | 44.13 |
SAME | Solaris 35 | 40.19 |
Shaktimaan | 30 | 66.5 |
Shaktimaan | 35 | 69.3 |
Shibaura | SE2540 | 59.3 |
Sonalika | DI 730 III | 67.7 |
Sonalika | DI 732 III | 67.7 |
Sonalika | DI 735 | 67.7 |
Sonalika | DI 740 | 67.7 |
TYM | T273 | 49 |
TYM | T280 | 50 |
TYM | T290 | 52 |
TYM | T293 | 56.3 |
TYM | T300 | 53.5 |
TYM | T330 | 52 |
TYM | T350 | 60 |
TYM | T353 | 53.5 |
Ursus | 2812 | 71.7 |
Wuzheng | WZ250 | 57.1 |
Wuzheng | WZ300 | 57.1 |
Wuzheng | WZ350 | 57.1 |
Wuzheng | WZ354 | 57.1 |
Wuzheng | WZ404 | 51.4 |
