| Tractor PTO HP |
40-80 |
|---|---|
| Hitch |
CAT 2, Drawbar |
| Hitch Adjustment |
Floating clevis, multi-position |
| Cutting Width (in) |
204 |
| Cutting Height (in) |
1.5 – 5.5 |
| Wing Deck Cut Width (in) |
72 |
| Center Deck Cut Width (in) |
72 |
| Deck Overlap (in) |
6 |
| Overall Width (in) |
205 |
| Transport Width (in) |
101 |
| Max. Overall Length |
182 |
| Transport Length (in) |
176 |
| Splitter Gearbox HP |
100 |
| Blade Tip Speed (fpm) |
18,100 |
| Drive Type |
Gearbox over v-belt |
| Input Driveline |
CAT 4 (const. vel.) |
| Wing Drivelines |
CAT 3 |
| Transport Tires (in) |
(2) 20.5 x 8-10 |
| Caster Wheel Bearings |
Tapered roller bearings |
| Caster Wheels (in) |
(10) 18 x 9.5-8 pneumatic |
| Wing Deck Lift Cylinders |
3 x 10 single-acting |
| Center Deck Lift Cylinders |
3 x 8 single-acting |
| Trailer Frame Construction |
4.0 x 4.0 x .25 square tube |
| Deck Thickness |
7 gauge |
| Blade Spindles |
(9) ductile iron |
| Blade Spindle Bearings |
Triple ball bearings |
| Blade Dimensions (in) |
(9) .25 x 2.5 x 25 |
| Transport Lock |
Automatic, manual release |
| Transport Tires |
Highway speed-rated |
| Cut Height Adjustment |
Spacer on caster |
| Caster Pivot Bushings |
Yes |
| Belt Construction |
HB-section, Aramid |
| Belt Adjustment |
Spring-loaded idler w/bearing pivot |
| Light Kit |
Standard |
| Chain Shielding |
Optional |
| Hydraulic Wing Unlock |
Optional |
| Gearbox Warranty |
10 year |
| Mower Warranty |
1 year |
| Spindle Warranty |
3 year |
| Woods C® |

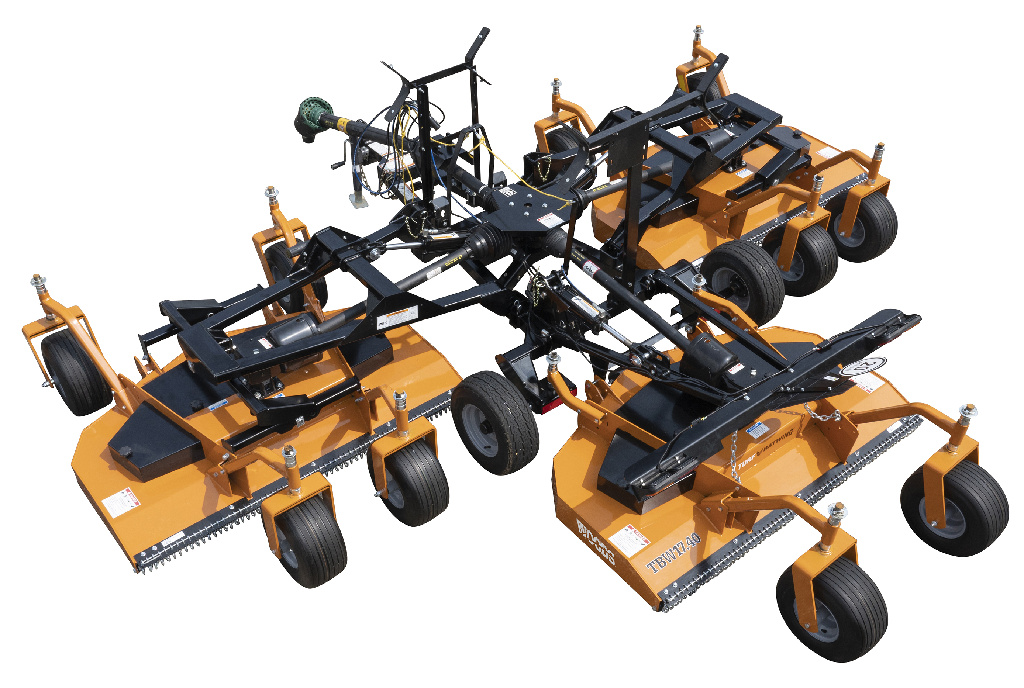

TBW17.40
- Unique baffling and blade design lifts grass more efficiently for a better cut
- Repositioned, extra-large caster wheels better handle rugged terrain
- Wider discharge area allows clippings to flow through effortlessly, without clogging
- Handles more horsepower than ever before to maintain superior cut quality at higher speeds
- No tools needed to access belt sheaves, belt and spring-loaded idler
- Includes the cutting technology from the #1 rated TurfKeeper Pro™, rated best in cut quality in independent testing.
- A 10-year gearbox warranty including labor and seals in addition to 3-year spindle protection under the Woods Cut Above™ Warranty program for confidence in your purchase decision.
