| Minimum Tractor PTO HP |
150 |
|---|---|
| Working Width (in) |
303 |
| Overall Width (in) |
310 |
| Cutting Height (in) |
2 to 14 |
| Approximate Weight (lbs) |
5,838 |
| Tractor PTO Speed (rpm) |
1,000 |
| Gearbox Rating (hp) |
300 *Gearbox horsepower ratings listed are based on field testing. |
| Gearbox Warranty |
5 years – limited |
| Optional Hitches |
2-point, 3-point (quick-hitch compatible) pull |
| Driveline 2 Point and 3 Point |
CAT 6 |
| Pull-type |
CAT 6 CV |
| Knife Types |
Double-edged L (6mm), double-edged HD-cotton Duraface® (8mm) L; cup or contour cup |
| Knife Retention |
Bolt-on (no D-rings) |
| Knife Pattern |
Spiral |
| Number of L Knives |
288 |
| Lift HP Required |
150 |
| Pull HP Required |
150 |
| Flail Tube Diameter (O.D.) (in) |
12.75 |
| Flail Tube Bearing Diameter (in) |
2.18 |
| Hood Type |
Smooth, trilateral shape |
| Hood/Deck Thickness (in) |
.18 (optional wearliner available) |
| End Plate Thickness (in) |
0.25 |
| Wheel Size (in) |
9.5L x 15 |
| Wheel Arm Types |
Rigid strut or caster |
| Optional Friction Clutch |
24,000 lbs inch rating |
| Automatic Clutch |
30,000 lbs inch rating (1.75-inch 20 PTO only) |

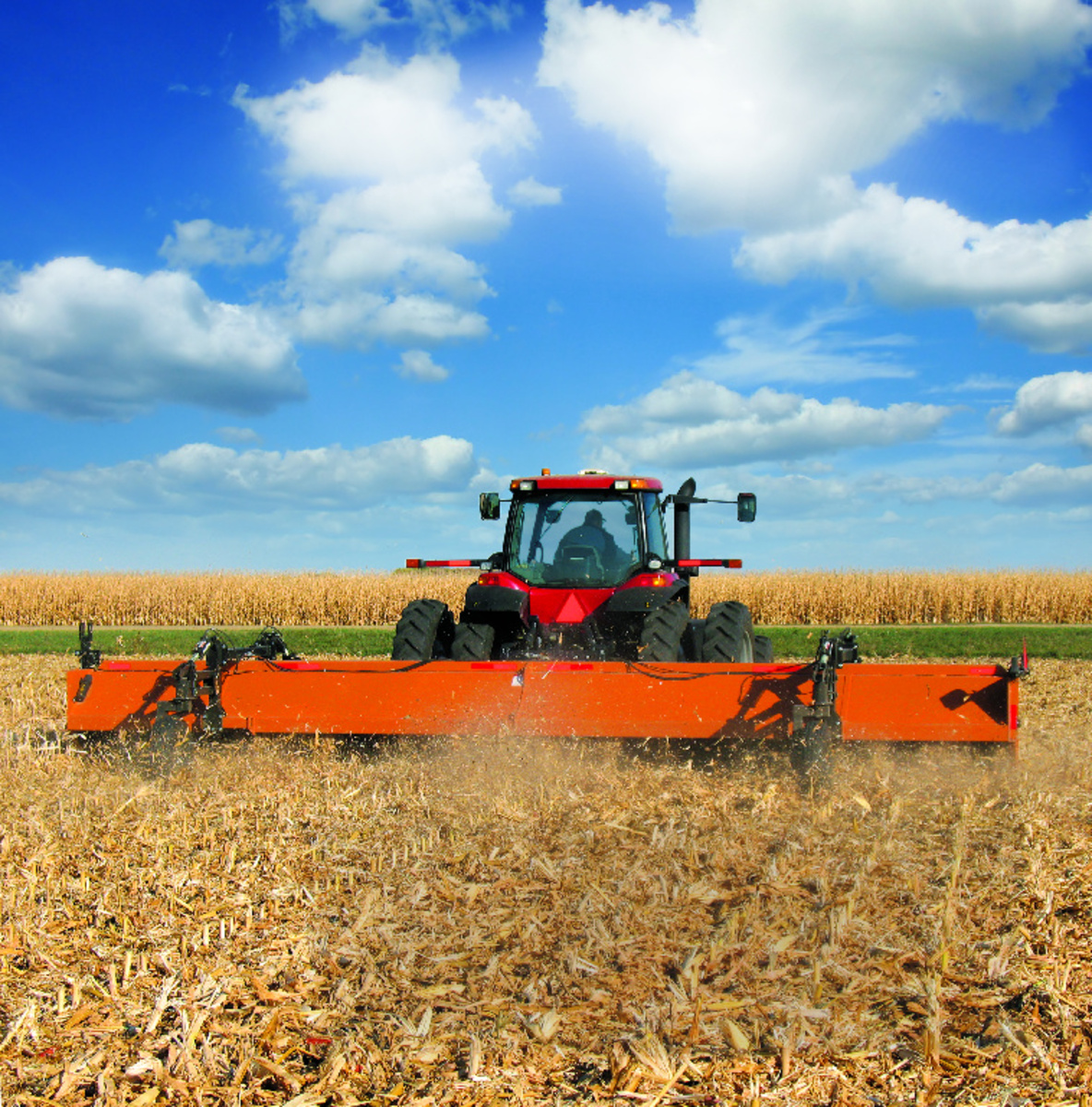

S25CD
- High capacity gearbox with large oil volume reduces heat buildup, extending bearing and gear life
- Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals
- 12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity, resulting in smoother operation
