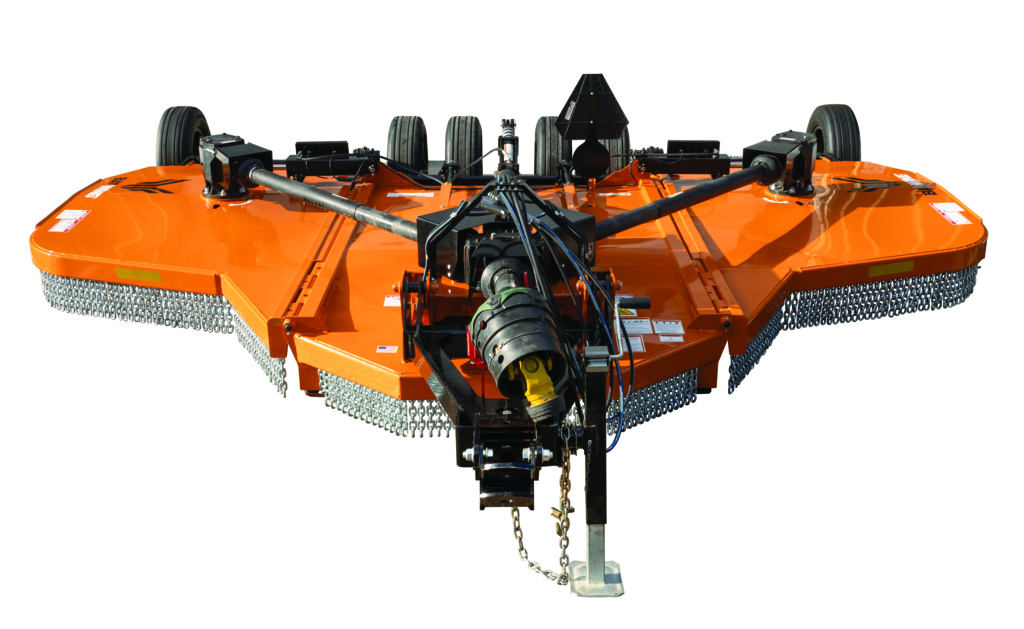

Batwing® Cutters
New
BW15.52
Professional
#1 In Cut Quality
Enabled by deep cutting decks, high-lift blades, and new features like Woods Exclusive Level Lock™ Technology that ensures a more level cut height across rugged terrain.
Read Cut Quality Study.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Easy Connection
The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Read More
Additional Features
- Woods® Level Lock™ Technology ensures a more level cut height across rugged terrain. (patent pending)
- Optional Cut Height Indicator allows the operator to mark a desired cut height prior to mowing and readjust from the cab as needed for a more even cut.
- The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
- Large Blade Access Window for easy blade maintenance from the top of the deck.
- Hose Holder holds hoses closer to the hydraulic remotes clear of the PTO shaft and tractor tires.
- Thumbscrew Dipstick quickly and easily check gearbox oil.
- PTO Lock Collar holds PTO collar back for easier tractor connection.
- Magnetic Driveline Shields lift to service gearbox.
- Aligned Grease Points easily find and service grease points.
Backed by a 10-year warranty including parts, labor, and seals.
Specifications
| Product Tier |
Professional |
|---|---|
| Tractor PTO HP |
45-200 |
| Tractor PTO (rpm) |
540 or 1,000 |
| Hitch Type |
Swivel clevis hitch |
| Adjustable Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
3 |
| Cutting Width (ft) |
15 |
| Cutting Area Shielding |
Single or Double Chain |
| Blade Tip Speed (fpm) |
15,526 (wing), 15,904 (center) at 540 rpm 15,708 (wing), 15,422 (center) at 1,000 rpm |
| Blade Size (in) |
.5 x 4 |
| Blade Overlap (in) |
6 |
| Weight/Tongue Weight (lbs) |
4,595/1,935 |
| Transport Width (in) |
96 |
| Hydraulics Wing Flex (degrees) |
90 up, 22 down |
| Side Skirt (in) |
.25 thick x 13 deep |
| Stump Jumper Type |
Oval |
| Deck Thickness (in) |
0.135 |
| Wheel Type |
21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft |
| Driveline Rating |
CAT 6 CV main, CAT 4 wing |
| Gearbox Rating (hp) |
210 splitter / 200 center and wing |
| Gearbox Warranty (yrs) |
10 |
| Output Shaft Size (in) |
2 dia |
| Options |
Double row chain shielding, Dual wheels, Towing Eye |
| Structure Warranty |
2 years |
Rick Canfield –
The BW15.72 has exceeded all of our expectations. This unit has great cut quality, is easy to maintain and cuts whatever we need it to with ease. The small enhancements such as the hose holder and PTO holder make hooking up the cutter much easier than previous models. We look forward to continuing to use this machine for many years to come.
