- Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
- PTO Lock Collar (Pull-Type Only) holds lock collar in a pulled-back position for easier tractor connection.
- Large Blade Access Window for quick and easy blade maintenance from the top of the deck.
- Smooth Sloped Deck easily sheds water and debris.
- CV Drive (Pull-Type Only) for less maintenance and smoother operation
Dual-Spindle Cutters

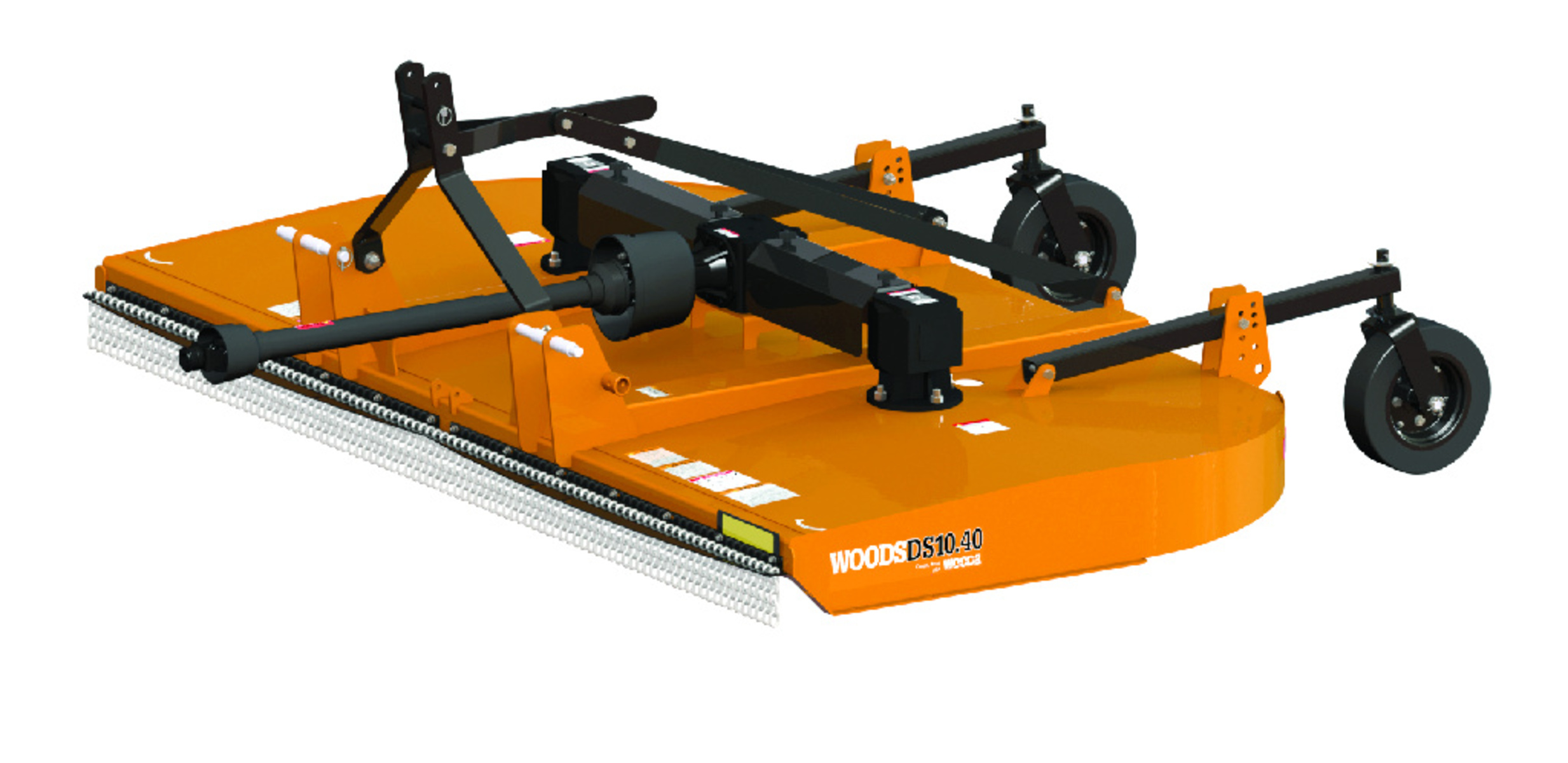

MDS10.40
Professional
Easy Connection
Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Read More
Additional Features
Backed by a 10-year warranty including parts, labor, and seals.
Some colors only available on select models.
Specifications
| Product Tier |
Professional |
|---|---|
| Tractor PTO (Minimum HP) |
60 |
| Tractor PTO Speed (rpm) |
540 |
| Hitch |
CAT 2 or CAT 3 / clevis |
| Hydraulic Variable Offset |
N/A |
| Cutting Width (in) |
120 |
| Cutting Capacity Diameter (in) |
2 |
| Adjustable Cutting Height (in) |
2 – 12 |
| Blade Tip Speed (fpm) |
16,700 |
| Blade Size (in) |
.5 x 4 |
| Deck Side Depth | Thickness (in) |
10 deep ,.135 thick |
| Weight (lbs) |
1,575 |
| Wheel Selection |
Laminated, severe-duty new ag; foam filled new ag, 15" rims |
| Gearbox Rating |
120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing. |
| Optional Dual-Wheels |
No |
| Driveline w/Slip Clutch |
CAT 5 |
| Overall Width/Length (in) |
124 x 106 |
| Quick-hitch Compatible |
Yes |
| Gearbox Warranty |
10 years |
| Structure Warranty |
2 years |
