| Tractor Engine HP |
15-35 |
|---|---|
| Tractor Hitch |
CAT 1 / limited CAT 1 |
| Working Width (in) |
48 |
| Drive Type |
Ground-driven spiked roller |
| Number of Seed Boxes Available |
1 or 2 |
| Seed Metering |
Fluted Seed Cup |
| Cool Season Seed Box Capacity (bushel) |
1 |
| Legume Seed Box |
Optional |
| Legume Seed Box Capacity (bushel) |
1 |
| Front Tool Choices |
6 – 16 in notched disc blades or spiked roller |
| Calibration Tray |
Standard |
| Crank Handle |
Standard |
| Spring-loaded Trailing Cultipacker |
Optional |
| Speed Ranges |
Turf seed range 0-700 lbs/acre (cool season); food plot range 0-30 lbs/acre (legume) |
| Options |
Fast/slow chain drive, Quick Hitch bushings, mud scrapers, seed stop plates, highway lights, tow kit |
| ASABE Quick Hitch Compatible |
Add hitch pin bushings to make CAT 1 quick-hitch compatible |
| Woods C® |

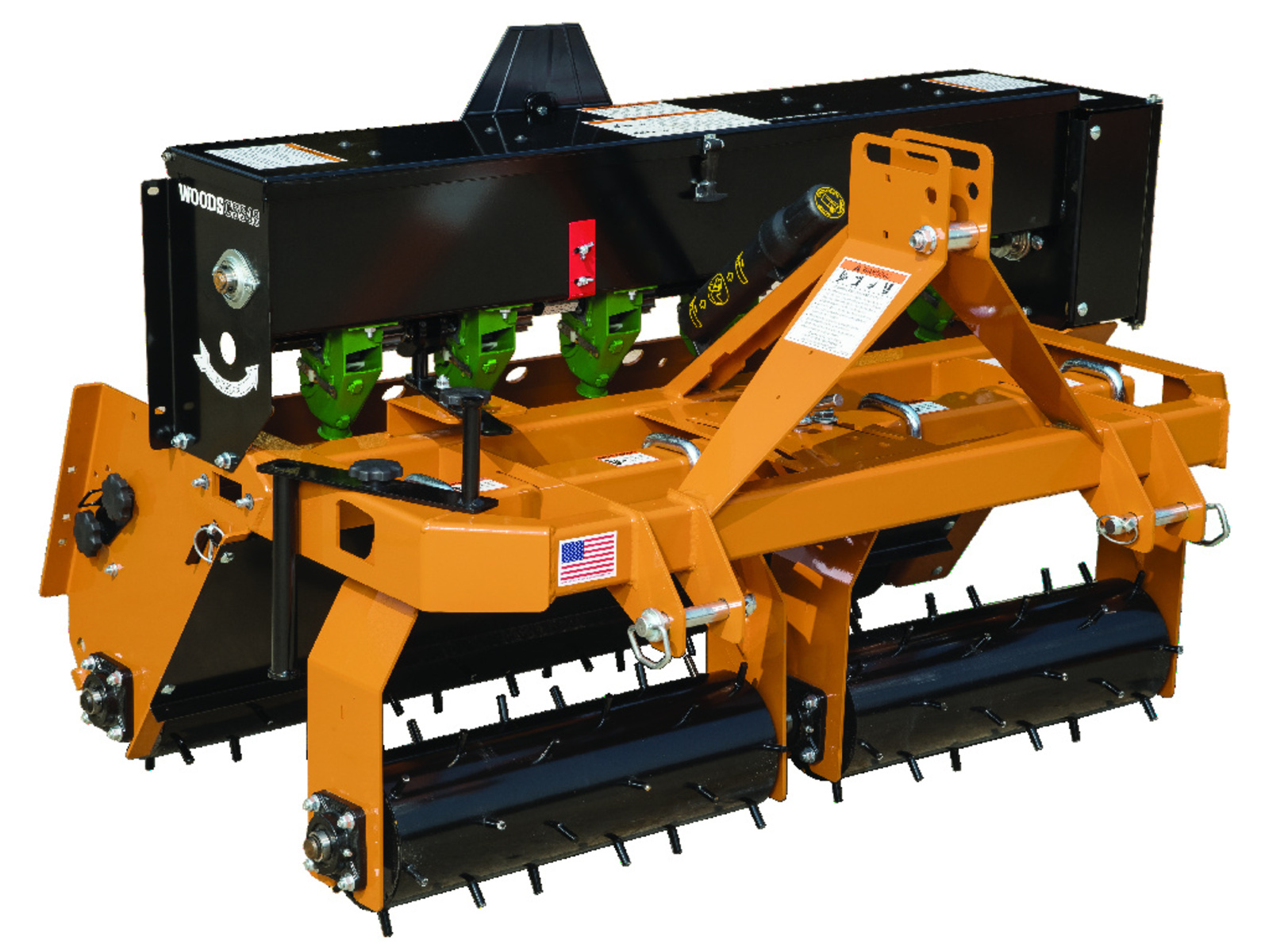

CSS48
- Productivity – Simultaneously plant two seed types at two different depths in one pass
- Precision Metering – Precisely measure out seeds, reducing waste, plus enjoy the durability of metal (not plastic) meters
- Versatility – Handle a wide range of seeds from Black-eyed Susan to corn. See our Planting Guide
- Maneuverability – Easily weave into narrow spaces and make tight turns to plant areas that may not be accessible with a larger tractor and planter
- Durability – Expect years of work from a rugged, Grade 80 steel body
- The calibration system includes seed charts, a calibration tray and crank for accurate seed rates
- A quick and easy disconnect – pull a pin and one or both seed boxes stop to make it a tilling tool for preparing the ground
Specifications
Downloads
TRACTOR COMPATIBILITY
This attachment fits the following tractors.
Please consult your local dealer for more information and assistance making the best choice for your situation.
| Tractor Make | Tractor Model | Tractor Wheel Width |
|---|---|---|
| Tractor Make | Tractor Model | Tractor Wheel Width |
| Ag Trac | AT2514 | 62.2 |
| AGCO | ST22A | 45.8 |
| AGCO | ST24A | 39.4 |
| AGCO | ST25 | 41 |
| Belarus | 5530 | 66.75 |
| Bobcat | CT120 | 46.5 |
| Bobcat | CT122 | 46.5 |
| Branson | 2100 | 44.3 |
| Branson | 2400 | 44.3 |
| Branson | 2800 | 44.3 |
| Cabelas | LM25 | 45.8 |
| Challenger | MT225 | 41 |
| Challenger | MT225B | 39.4 |
| Cub Cadet | 7000 | 46.3 |
| Cub Cadet | 7200 | 46.3 |
| Cub Cadet | 7205 | 46.3 |
| Cub Cadet | 7304 | 48 |
| Cub Cadet | Sc2400 | 44.5 |
| Deutz-Fahr | Agrokid 25 | 42.7 |
| Deutz-Fahr | Agrokid 30 | 41 |
| Farm Pro | 2010 | 48.6 |
| Farm Pro | 2420 | 56 |
| Farm Pro | 2425 | 56 |
| Farm Pro | 2510 | 50.8 |
| Iseki | TF15F | 40.9 |
| Iseki | TF17F | 42.9 |
| Iseki | TF19F | 42.9 |
| Iseki | TF21F | 45.3 |
| Iseki | TF23F | 45.3 |
| Iseki | TF26F | 45.3 |
| Iseki | TF321 | 44.3 |
| Iseki | TF327 | 47.2 |
| Iseki | TM223 | 47.8 |
| Iseki | TM3200 | 47.6 |
| Iseki | TM3215 | 43.7 |
| Iseki | TM3245 | 43.7 |
| Iseki | TM3265 | 43.7 |
| Iseki | TXG23 | 46.9 |
| John Deere | 1023E | 47.2 |
| John Deere | 1025R | 47.2 |
| John Deere | 1026R | 47.2 |
| John Deere | 2025R | 37 |
| John Deere | 2026R | 47.2 |
| John Deere | 2032R | 47.1 |
| John Deere | 2210 | 47.9 |
| John Deere | 2305 | 44.9 |
| John Deere | 2320 | 37.1 |
| John Deere | 2520 | 39.2 |
| John Deere | 2720 | 39.2 |
| John Deere | 4110 | 47 |
| John Deere | 4115 | 47 |
| KIOTI | CK20 | 44.1 |
| KIOTI | CK20S | 44.1 |
| KIOTI | CK2510 | 49.2 |
| KIOTI | CS2210 | 46.7 |
| KIOTI | CS2410 | 46.5 |
| KIOTI | CS2510 | 46.7 |
| KIOTI | CS2610 | 46.5 |
| KIOTI | LB1914 | 46.5 |
| Kubota | B2050 | 40.2 |
| Kubota | B2201 | 40.2 |
| Kubota | B2230 | 43.5 |
| Kubota | B2231 | 48.6 |
| Kubota | B2261 | 49.2 |
| Kubota | B2301 | 45.3 |
| Kubota | B2320 | 45.1 |
| Kubota | B2350 | 48.6 |
| Kubota | B2410 | 46.3 |
| Kubota | B2530 | 43.5 |
| Kubota | B2601 | 49 |
| Kubota | B2620 | 49 |
| Kubota | B2630 | 53.7 |
| Kubota | B2650 | 53.7 |
| Kubota | B2920 | 49 |
| Kubota | B7410 | 42.4 |
| Kubota | B7500 | 42.4 |
| Kubota | B7510 | 42.4 |
| Kubota | B7610 | 46.3 |
| Kubota | BX2200 | 45.1 |
| Kubota | BX2230 | 45.1 |
| Kubota | BX2350 | 44.5 |
| Kubota | BX2360 | 44.5 |
| Kubota | BX2370 | 44.5 |
| Kubota | BX2370-1 | 44.5 |
| Kubota | BX2380 | 45.1 |
| Kubota | BX2660 | 44.5 |
| Kubota | BX2670 | 44.5 |
| Kubota | BX2670-1 | 44.5 |
| Kubota | BX2680 | 45.1 |
| Kubota | L2501 | 55.1 |
| Kubota | STV32 | 48 |
| Kubota | STV36 | 48 |
| Kubota | STV40 | 48 |
| Kubota | STW34 | 46.7 |
| Kubota | STW40 | 46.7 |
| Lenar | FS180 | 45.5 |
| LS | J2020H | 44.9 |
| LS | J2030H | 44.9 |
| Mahindra | eMax 22 | 47.2 |
| Mahindra | eMax 25 | 47.2 |
| Massey Ferguson | 1423 | 41 |
| Massey Ferguson | 1523 | 42.3 |
| Massey Ferguson | 1726E | 52.4 |
| Massey Ferguson | GC1705 | 47.25 |
| Massey Ferguson | GC1715 | 47.25 |
| Massey Ferguson | GC2300 | 45.8 |
| Massey Ferguson | GC2400 | 46.9 |
| Massey Ferguson | GC2600 | 46.9 |
| McCormick Intl | G25 | 34.25 |
| McCormick Intl | G30R | 37.7 |
| Mitsubishi | MT1800 | 41.5 |
| Mitsubishi | MT200 | 46 |
| Mitsubishi | MT2000 | 46.3 |
| New Holland | Boomer 1020 | 46.4 |
| New Holland | Boomer 1025 | 46.4 |
| New Holland | Boomer 1030 | 52 |
| New Holland | Boomer 24 | 43.8 |
| New Holland | TC23DA | 44.7 |
| New Holland | TC26DA | 44.7 |
| New Holland | TZ25DA | 45.9 |
| New Holland | Workmaster 25S | 56.1 |
| SAME | Solaris 25 | 44.13 |
| SAME | Solaris 35 | 40.19 |
| Wuzheng | WZ200 | 46.1 |
| Yanmar | SA425 | 54.1 |
| Yanmar | SA425DHX | 54.1 |
