- Chain Drive Cover No tools required to access bearing, shear bolt, and to service the chain drive.
- Skid Shoe protects the frame and prevents wear. Replaceable and adjustable for height.
- Standard Mechanical or Operational Hydraulic Chute Adjustments adjust the position of the chute.
- Quick-Hitch Ready from the factory making for easier tractor hook up.
Snow Blowers

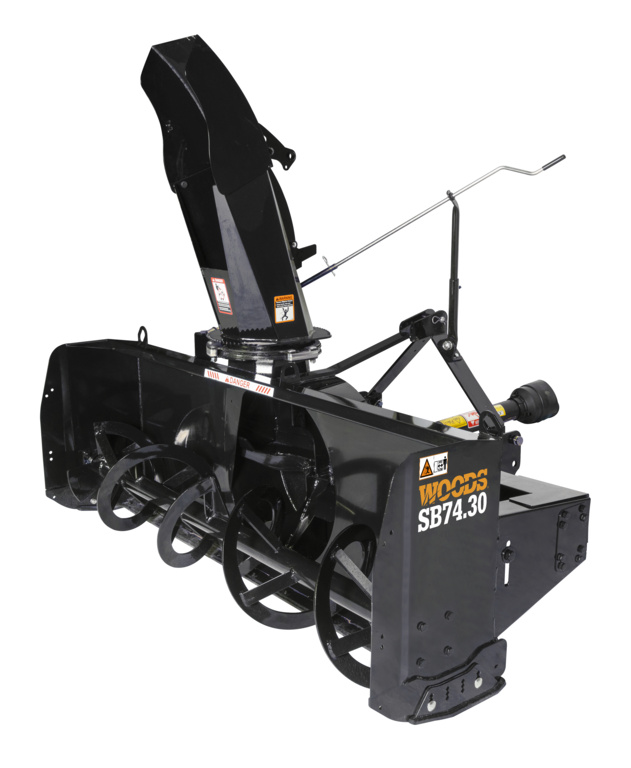

SB74.30
Standard
Less Vibration
Dynamically balanced auger and impeller for less vibration .
Impact Resistant
Heavy-duty reinforced housing withstands hard impacts .
Process Heavy Snow
Shear bolt protection on driveline for processing heavy snow.
Unmatched Gearbox PROTECTION
6-year warranty including parts, labor, and seals.
Read More
Additional Features
Backed by a 6-year warranty including parts, labor, and seals.
Specifications
| Product Tier |
Standard |
|---|---|
| PTO Power Requirements (HP) |
30-50 |
| Operating Weight; including chute & hydraulic deflector (lbs) |
640 |
| Working Width (in) |
74 |
| Working Height (in) |
27 1/2 |
| Overall Width (in) |
75 1/4 |
| Overall Length (in) |
45 1/2 |
| Impeller Diameter (in) |
24 |
| Impeller Width (in) |
9 |
| Impeller (rpm) |
540 |
| Main Auger Diameter (in) |
15 |
| Auger Driven System |
Chain No. 60 |
| Auger (rpm) |
200 |
| Chute Rotation |
Manual or Hydraulic |
| Replaceable and Reversible |
Yes |
| Cutting Edge Dimension (in) |
3/8 x 1 1/2 |
| Main Driving System |
Driveline Series 50 |
| Chain Idler |
Yes |
| Number of Auger Shear Bolt |
1 (on drive shaft) |
| Number of Impeller Shear Bolt |
1 (on driveline) |
| Type of Hitch |
3 pts., CAT 1 / CAT 2 |
| Parking Stand |
Standard |
| Gearbox Warranty |
6-years Includes Seals |
