Woods Equipment

Disc Harrows

Click to enlarge
HomeProductsTillageDisc Harrows DHM96

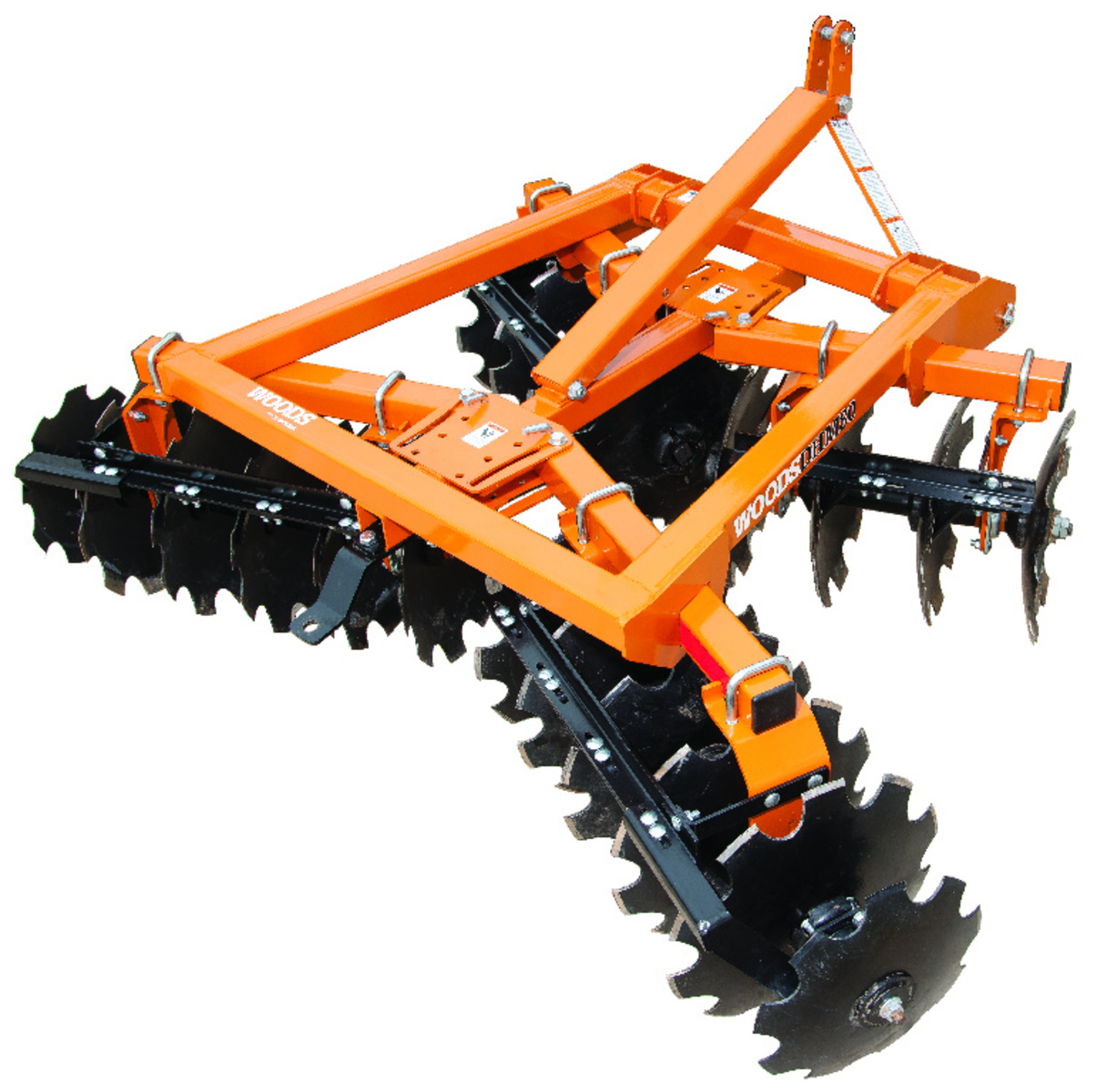

DHM96

  • Rugged, tapered frame and durable bearing hangers extend work life
  • Notched blades cut into the dirt; smooth blades leave a fine finish
  • Independent disc blade gangs adjust easily with one pin
  • Heavy down force makes each blade dig deeper, work harder in one pass
  • Quick-hitch compatible
  • Mud scrapers that prevent clogging, increase productivity
  • Furrow fillers to reduce end ridges
Add to Compare
Add to Quote
This product is already in quote request list.
View Quote Request
SKU: DHM96 Categories: Disc Harrows, Tillage
Share
Facebook Twitter Email linkedin
  • Specifications
  • Downloads
Specifications
Tractor Engine HP

55-85

Working Width (in)

96

Weight / Shipping Weight (lbs)

960

Tractor Hitch

CAT 1 and 2

Average Weight per Blade (lbs)

44

Disc Type

Notched; or combination smooth and notched

Disc Diameter (in)

20

Disc Quantity

22

Disc Spacing (in)

9 front, 7.5 rear

Frame Construction (in)

3 x 3 tube

Gang Axle Diameter (in)

1-1/8 square

Quick-hitch Compatible

Yes

Downloads

Product Brochure Manual
