- Engineered Quick-Hitch Ready for easy tractor connection. Bushings included.
- Robust Gear-Driven Side Drive provides years of reliable service and requires far less maintenance than chain-driven units.
- Tapered Tailgate removes furrow for a finished seedbed.
- Adjustable skid shoes to provide easy depth control.
- Parking stand included for easy connection.
Rotary Tillers
New

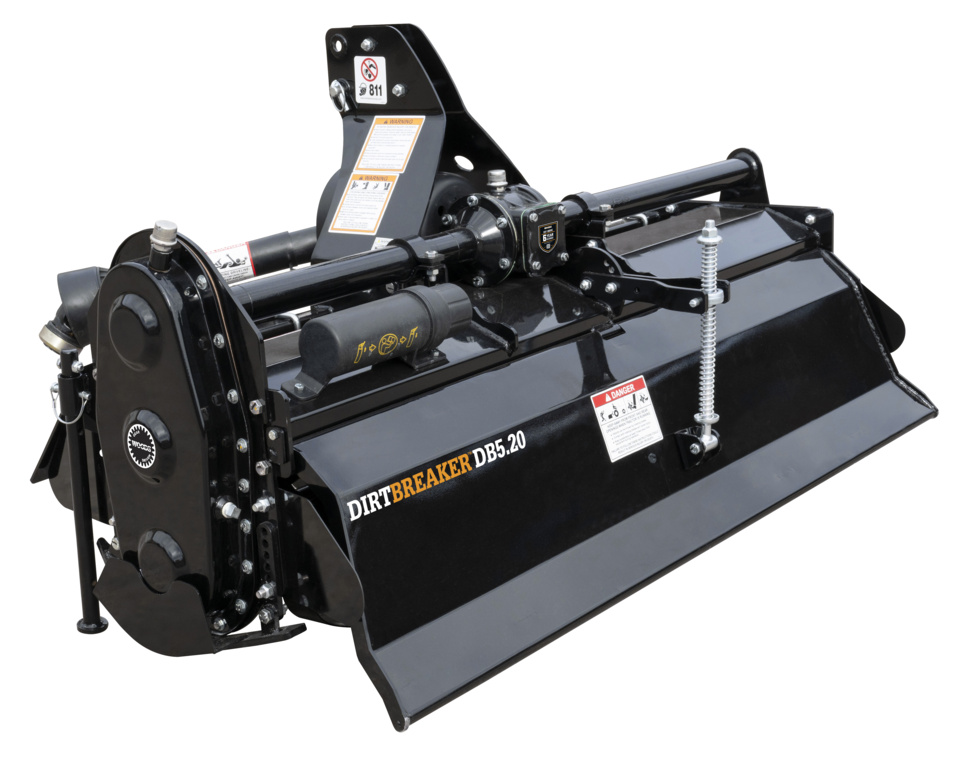

DB5.20
Standard
Tackle Tough Conditions
The gear-driven side drive is more durable and reliable than chain-driven tillers. Built for long-term durability and requires little maintenance.
Optimize Your Seed Bed
Delivers a finely tilled seedbed in just one pass.
Easy Connection
Engineered Quick-Hitch Ready for easy tractor connection.
Unmatched Gearbox PROTECTION
6-year warranty including parts, labor, and seals.
Read More
Additional Features
Backed by a 6-year warranty including parts, labor, and seals.
Specifications
| Product Tier |
Standard |
|---|---|
| Tractor PTO HP |
20-30 |
| Tractor PTO Speed (rpm) |
540 |
| Rotor Speed (rpm) |
244 |
| Tine Rotation Direction |
Forward |
| Maximum Tilling Depth (in) |
6.9 |
| Drive Type |
Gearbox |
| PTO Driveline Protection |
Slip clutch |
| Gearbox Housing |
Heavy-duty cast iron |
| Gearbox Warranty |
6 years |
| Working Width (in) |
62.1 |
| Overall Width (in) |
67.2 |
| Weight (lbs) |
640 |
| Type of Blades (shape) |
"C" |
| Number of Blade Flanges |
8 |
| Number of Tines |
48 |
| Number of Tines/Flange |
6 |
| Skid Shoe Depth Adjustments (in) |
(6) 0.4 – 2.2 |
| Tractor Hitch |
CAT 1 |
| Quick-Hitch Ready |
Yes |
| Parking Stand |
Standard |
| Woods C® |
