Home Products Tillage Rotary Tillers RTR60.40
Compact/Subcompact

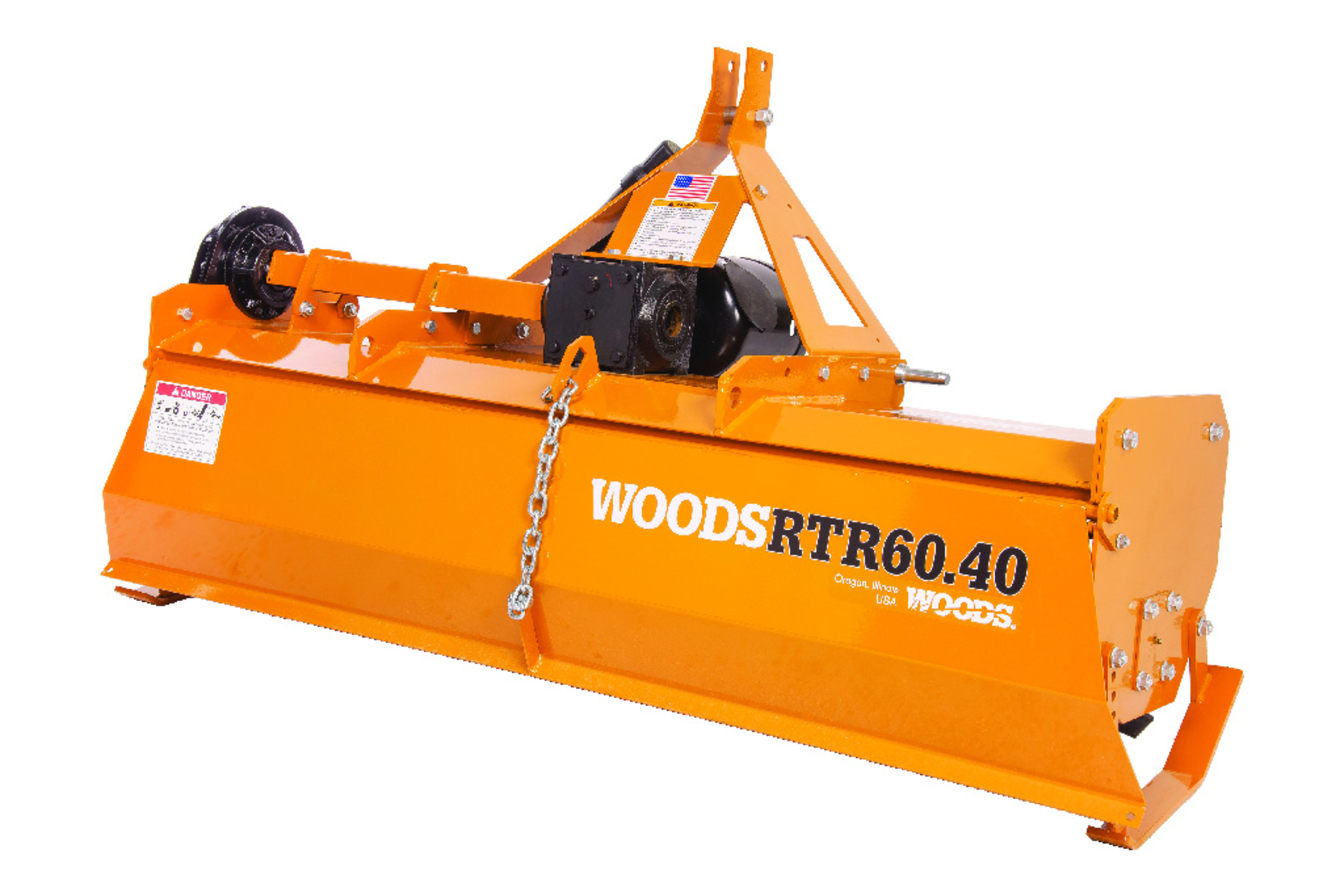

RTR60.40

  • Available in forward or reverse rotation
  • Tapered tailgate removes furrow for a finished seedbed
  • Adjustable skid shoes for easy depth control
  • Innovative double-flange blade support
  • Robust gear-driven side drive provides years of reliable service and requires far less maintenance than chain-driven units
  • Fixed offset tiller width covers tire tracks with each pass
  • 3-year warranty on input gearbox (includes seals)
Add to Compare
Add to Quote
This product is already in quote request list.
View Quote Request
SKU: RTR60.40 Categories: Rotary Tillers, Tillage
Share:
  • Specifications
  • Downloads
  • TRACTOR COMPATIBILITY
Specifications
Overall Width (in)

69

Working Width (in)

59

Weight / Shipping Weight (lbs)

570 / 578

Tractor Hitch

CAT 1

Quick-hitch Compatible

Yes

Drive Type

Gearbox

Gearbox Drain Plug

Yes

Gearbox Housing

Heavy-duty cast iron

Number of Tines per Flange

4 C-type

Number of Tines / Number of Flanges

28 / 7

PTO Driveline Protection

Slip clutch

Rotor Speed (rpm)

210

Tractor PTO HP

18-40

Tractor PTO Speed (rpm)

540

Woods C®

Compact/Subcompact

Downloads

Product Brochure Manual Dare to Compare

TRACTOR COMPATIBILITY

This attachment fits the following tractors.

Please consult your local dealer for more information and assistance making the best choice for your situation.

Tractor Make Tractor Model Tractor Wheel Width
Tractor Make Tractor Model Tractor Wheel Width
Ag Trac AT3814 60
AGCO ST22A 45.8
AGCO ST24A 39.4
AGCO ST25 41
AGCO ST28A 49.6
AGCO ST30 55.5
AGCO ST32 51
AGCO ST33A 49.6
AGCO ST34A 62
AGCO ST35 56.3
Bobcat CT120 46.5
Bobcat CT122 46.5
Bobcat CT225 55.9
Bobcat CT230 55.9
Bobcat CT235 55.4
Branson 2100 44.3
Branson 2400 44.3
Branson 2800 44.3
Branson 2810 59
Branson 2910i 59
Branson 3110i 55
Branson 3510 58.3
Branson 3510h 55.2
Branson 3510i 55
Branson 3820i 56
Cabelas LM25 45.8
Cabelas LM35 62.25
CaseIH D35 61.3
CaseIH D40 61.3
CaseIH DX31 54.3
CaseIH DX34 54.3
CaseIH Farmall 31 54.3
CaseIH Farmall 35 54.3
Century 2028 59
Century 2535 59
Century C29 59
Century C35 59
Century C38 61
Challenger MT225 41
Challenger MT255 51
Challenger MT255B 50.6
Challenger MT265 60.6
Cub Cadet 6284D 50
Cub Cadet 7000 46.3
Cub Cadet 7200 46.3
Cub Cadet 7205 46.3
Cub Cadet 7260 51.8
Cub Cadet 7264 48
Cub Cadet 7265 51.8
Cub Cadet 7304 48
Cub Cadet 7305 54
Cub Cadet 7360 58.3
Cub Cadet 7530 53.5
Cub Cadet 7532 54
Cub Cadet 8354 57.1
Cub Cadet Ex2900 59.1
Cub Cadet Ex3200 59.1
Cub Cadet Sc2400 44.5
Cub Cadet Sx3100 51.6
Deutz-Fahr Agrokid 210 49.3
Deutz-Fahr Agrokid 25 42.7
Deutz-Fahr Agrokid 30 41
Deutz-Fahr Agrokid 35 48.8
Deutz-Fahr Agrokid 40 48
Farm Pro 2010 48.6
Farm Pro 2420 56
Farm Pro 2425 56
Farm Pro 2430 56.5
Farm Pro 2510 50.8
Farm Pro 3010 56.7
Ford 1720 55.2
Ford 1920 58.5
Iseki AT23 49.8
Iseki AT240 50.4
Iseki AT25 52.8
Iseki AT260 54
Iseki AT27 53.7
Iseki AT280 54.3
Iseki AT30 55.7
Iseki AT310 55.7
Iseki AT33 57.3
Iseki AT340 55.7
Iseki AT37 59.7
Iseki AT370 60.4
Iseki AT5330 57.3
Iseki AT5390 57.3
Iseki TA530 53.4
Iseki TA537 60
Iseki TF21F 45.3
Iseki TF23F 45.3
John Deere 3005 54
John Deere 3025E 58
John Deere 3032E 56.5
John Deere 3033R 52.1
John Deere 3039R 53.1
John Deere 3203 53.1
John Deere 3320 52.4
John Deere 4210 53
John Deere 4310 50
KIOTI CK25 54.6
KIOTI CK2510 49.2
KIOTI CK2610 55.1
KIOTI CK27 54.6
KIOTI CK2810 49.2
KIOTI CK30 54.6
KIOTI CK35 54.6
KIOTI CK3510 55.1
KIOTI CK4010 55.1
KIOTI CS2210 46.7
KIOTI CS2410 46.5
KIOTI CS2510 46.7
KIOTI CS2610 46.5
KIOTI DK35 57.1
KIOTI DK40 59.3
KIOTI DS3510 51.7
KIOTI LB1914 46.5
KIOTI LK2554 50.9
KIOTI LK30 51.4
KIOTI LK3054 51.7
KIOTI LK3504 52.9
Kubota B2231 48.6
Kubota B2261 49.2
Kubota B2311 53.7
Kubota B2350 48.6
Kubota B2601 49
Kubota B2620 49
Kubota B2630 53.7
Kubota B2650 53.7
Kubota B2710 53.8
Kubota B2910 53.8
Kubota B2920 49
Kubota B3000 53.7
Kubota B3030 53.7
Kubota B3150 53.7
Kubota B3200 53.8
Kubota B3300SU 53.7
Kubota B3350 53.7
Kubota B7800 53.8
Kubota L2501 55.1
Kubota L2600 50.9
Kubota L2800 51.4
Kubota L3000 50.9
Kubota L3200 55.1
Kubota L3240 59.8
Kubota L3301 55.1
Kubota L3400 51.4
Kubota STV36 48
Kubota STW40 46.7
LS J2020H 44.9
LS J2030H 44.9
LS S3010 49.7
Mahindra 2015 53.5
Mahindra 2216 53.5
Mahindra 2310 52
Mahindra 2415 54.3
Mahindra 2516 54.3
Mahindra 2525 57.5
Mahindra 2538 59.8
Mahindra 2810 52
Mahindra 2815 59.8
Mahindra 2816 59.4
Mahindra 3015 53.7
Mahindra 3016 59.8
Mahindra 3215 59.8
Mahindra 3316 59.8
Mahindra 3510 52
Mahindra 4010 59.8
Mahindra C27 53.8
Mahindra C35 58.1
Mahindra eMax 22 47.2
Mahindra eMax 25 47.2
Mahindra eMax 25S 50.8
Mahindra Max 22 50.7
Mahindra Max 24 50.7
Mahindra Max 25 50.7
Mahindra Max 26XL 54.3
Mahindra Max 28 XL 54.3
Massey Ferguson 1428 55
Massey Ferguson 1429 54.9
Massey Ferguson 1431 51
Massey Ferguson 1433 55.5
Massey Ferguson 1526 49.2
Massey Ferguson 1528 53.5
Massey Ferguson 1529 58.1
Massey Ferguson 1531 53.5
Massey Ferguson 1532 58.1
Massey Ferguson 1726E 52.4
Massey Ferguson 1734E 52.4
New Holland Boomer 1030 52
New Holland TC29DA 54.3
New Holland TC31DA 54.3
New Holland TC33DA 54.3
TYM T233 49
TYM T273 49
TYM T280 50
TYM T290 52
TYM T293 56.3
TYM T300 53.5
TYM T330 52
TYM T353 53.5
Yanmar SA425 54.1
Yanmar SA425DHX 54.1
