Batwing® Cutters

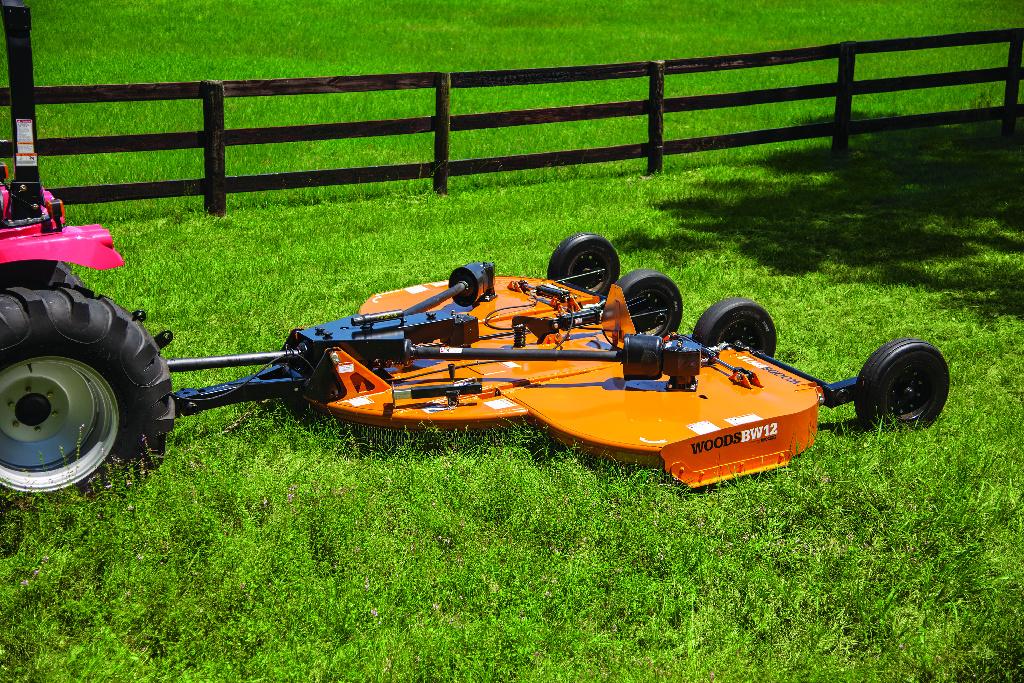

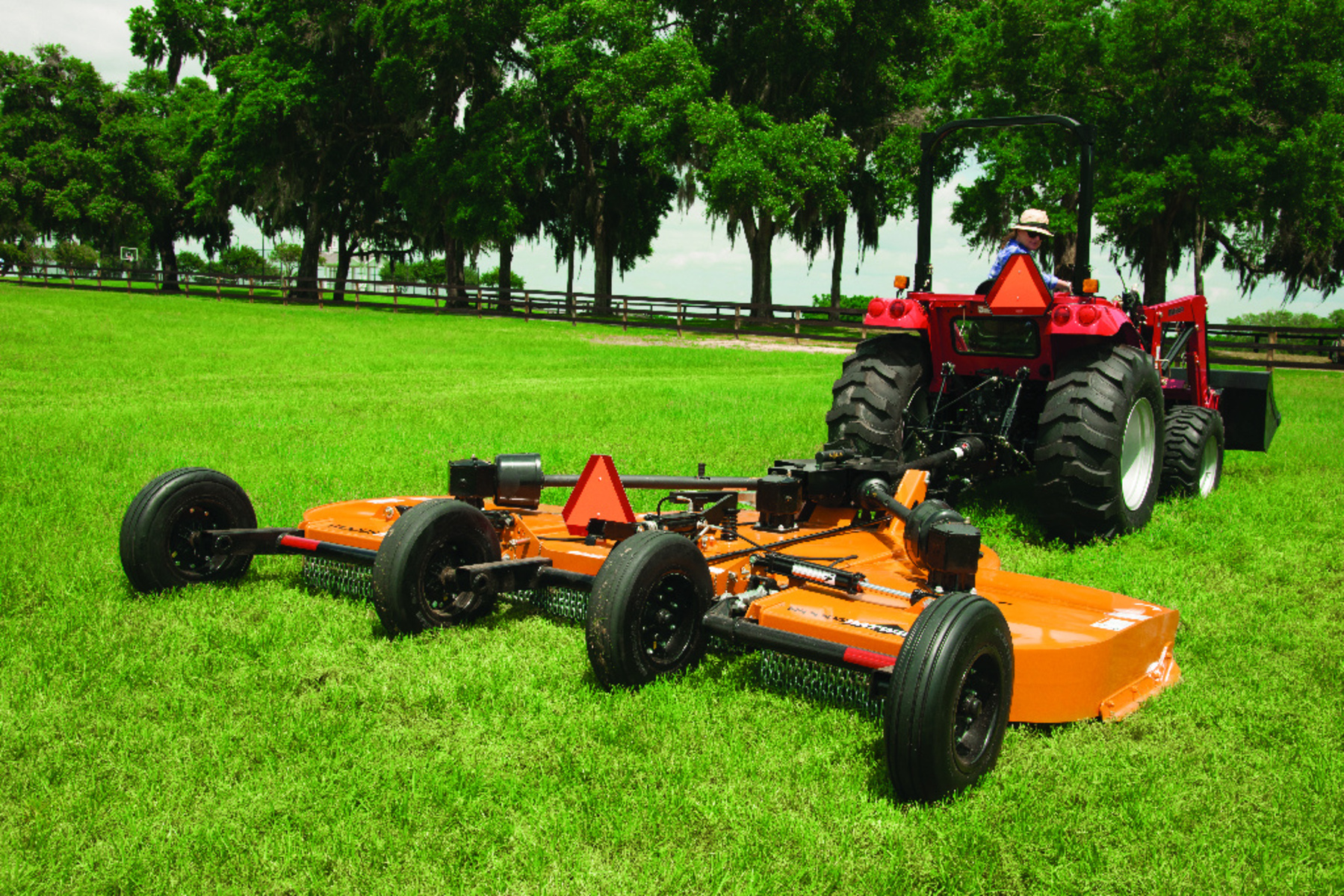

BW12
- Ideal for use on lower horsepower compact and utility tractors
- Twelve gauge, high-strength steel and smooth, sloped deck provide durability for long life
- Easy hook-up reduces preparation time and frustration
- Fully baffled deck, ensures better distribution of cut material, and the performance you expect
- A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
- Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
- Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Specifications
| Tractor PTO HP |
35 minimum |
|---|---|
| Hitch Type |
Swivel clevis |
| Cutting Height (in) |
2 to 12 |
| Cutting Capacity Diameter (in) |
1.5 |
| Cutting Width (in) |
144 |
| Blade Tip Speed (fpm) |
14,300 center; 14,900 wing |
| Weight (lbs) |
2,450 |
| Deck Thickness (in) |
.105 (12 ga) |
| Side Skirt Thickness (in) |
.179 (7 ga) |
| Side Skirt Depth (in) |
11 |
| Transport Width (in) |
96 |
| Wing Flex Up/Down (degrees) |
90 up, 22 down |
| Driveline Rating |
CAT 4 CV main, CAT 3 wing |
| Splitter/Wing Gearbox Rating (hp) |
160 / 75 *Gearbox horsepower ratings listed are based on field testing. |
| Output Shaft Diameter (in) |
1.57 |
| Tongue Weight (lbs) |
750 |
| Wheel Options |
21 inch laminated; 24 inch severe-duty Ag |
| Gearbox Warranty (yrs) |
10 |
| Options |
Available in Woods Orange, Green, Orange, Blue |
| Suspension |
Spring on center section |
| Blade Overlap (in) |
6 |
| Blade Dimensions (in) |
.5 x 4 |
| Cutting Area Shielding |
Standard chain shielding |
| Structure Warranty |
2 years |
