| Tractor PTO HP |
40-120 |
|---|---|
| Tractor Hitch |
Pivoting clevis |
| Cutting Height Range (in) |
2 to 12 |
| Cutting Capacity Diameter (in) |
2 |
| Cutting Width (in) |
120 |
| Blade Tip Speed (fpm) |
16,700 |
| Weight (lbs) |
1,847 |
| Deck Thickness (in) |
.135 (10 ga) |
| Side Frame Depth (in) |
10 |
| Gearbox Warranty |
10 years |
| Overall Width /Length (in) |
124 x 155 (25 in tires) |
| Gearbox HP |
120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing. |
| Blade Dimensions (in) |
.5 x 4 |
| Quick-hitch Compatible |
Yes |
| Wheel Selection |
Laminated, severe duty new ag, foam filled new ag, 15 in rims |
| Optional Dual Wheels – Pull-type |
No |
DS10.40
- Smooth, sloped-top deck sheds water and debris to prevent rust and corrosion
- Cuts light brush up to 2 inches in diameter
- A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
- Variable wheel spacing

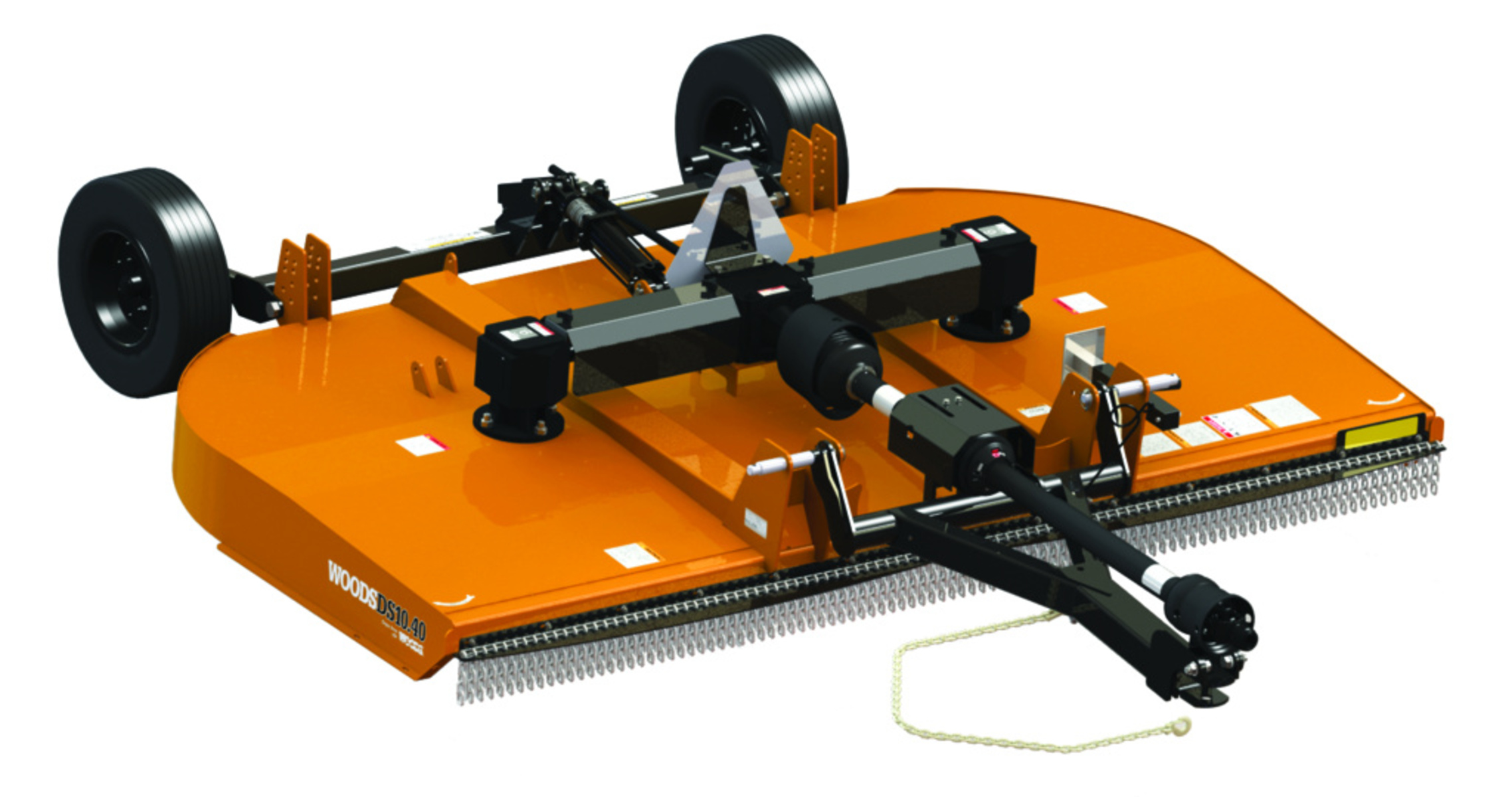

- 120-inch pull-type dual-spindle rotary cutter
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
