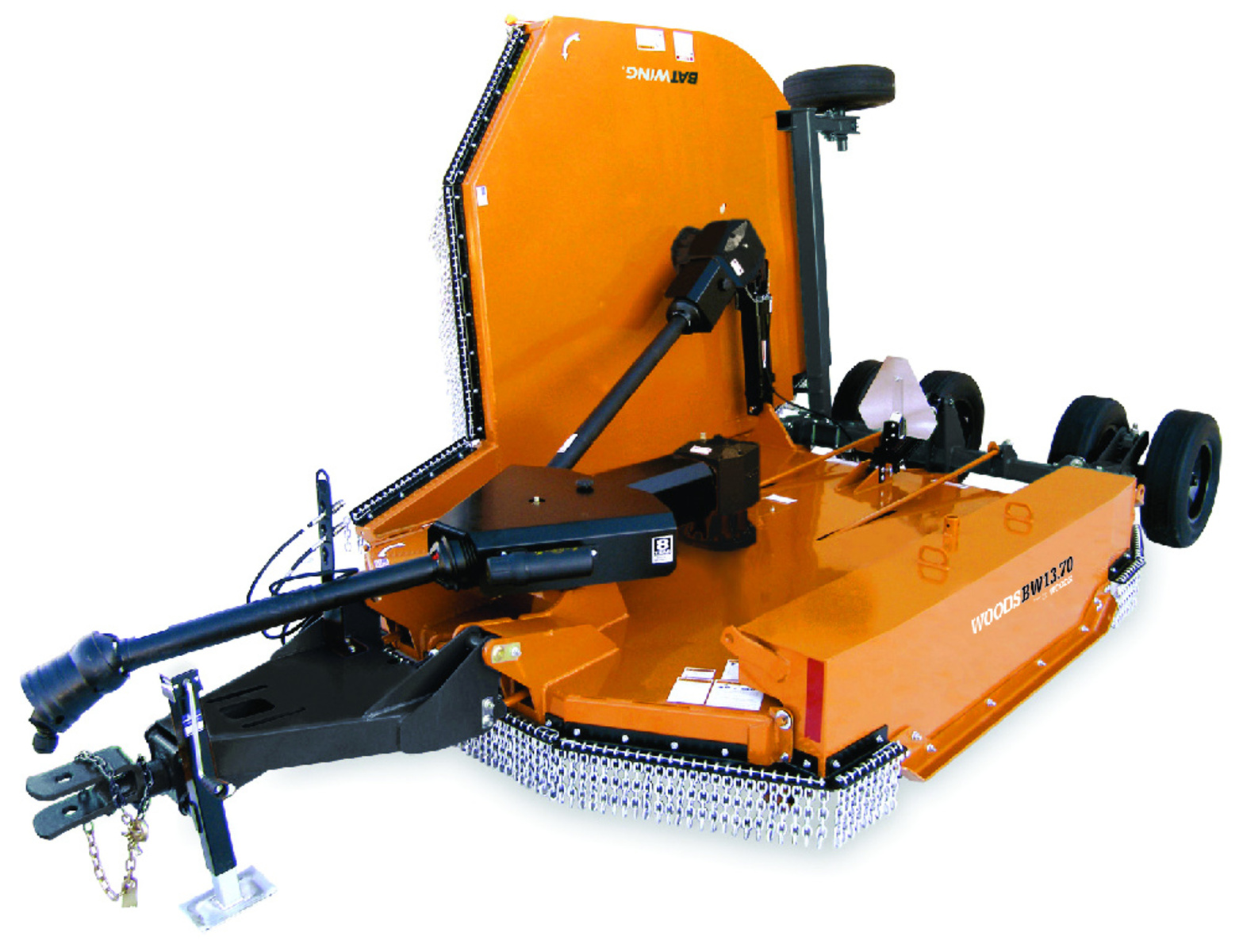

Batwing® Cutters
BW13.71
- Ideal for professional and contract cutting of heavy brush and trees up to 4 inches in diameter
- Hinged metal gearbox shields open easily for maintenance
- A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
- Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
- Heavy-duty skid shoes prevent gouging and protect the deck
- Strategically placed, welded baffles cut and distribute debris evenly
- Features a double deck, built extra heavy to handle a host of rugged applications
- Limited configuration available in reverse rotation
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Specifications
| Tractor PTO HP |
70-300 |
|---|---|
| Hitch Type |
Swivel clevis |
| Cutting Height (in) |
2 to 15 |
| Cutting Capacity Diameter (in) |
4 |
| Cutting Width (in) |
162 |
| Blade Tip Speed (fpm) |
15,450 at 540 rpm; 16,300 at 1,000 rpm |
| Weight (lbs) |
7,860 |
| Deck Thickness (in) |
.135 in upper and lower |
| Side Skirt Thickness (in) |
0.25 |
| Side Skirt Depth (in) |
12.5 |
| Transport Width (in) |
99 |
| Wing Flex Up/Down (degrees) |
90 up, 22 down |
| Driveline Rating |
CAT 6 CV main, CAT 5 wing |
| Splitter/Wing Gearbox Rating (hp) |
275 / 225 *Gearbox horsepower ratings listed are based on Woods’ field testing |
| Output Shaft Diameter (in) |
2.38 |
| Tongue Weight (lbs) |
2,700 |
| Wheel Options |
21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft |
| Gearbox Warranty (yrs) |
10 |
| Options |
Double row chain shielding; tandem spring arm suspension; pintel ring hitch; deck rings; LED lights |
| Suspension |
Spring-loaded axles |
| Blade Overlap (in) |
6 |
| Blade Dimensions (in) |
.5 x 4 |
| Cutting Area Shielding |
Standard chain shielding |
| Structure Warranty |
2 years |
