Tractor PTO HP |
70-300 |
---|---|
Hitch Type |
Swivel clevis |
Cutting Height (in) |
2 to 15 |
Cutting Capacity Diameter (in) |
4 |
Cutting Width (in) |
240 |
Blade Tip Speed (fpm) |
15,450 at 540 rpm; 16,300 at 1,000 rpm |
Weight (lbs) |
7,740 |
Deck Thickness (in) |
.135 in upper and lower |
Side Skirt Thickness (in) |
0.25 |
Side Skirt Depth (in) |
12.5 |
Transport Width (in) |
99 |
Wing Flex Up/Down (degrees) |
90 up, 22 down |
Driveline Rating |
CAT 6 CV main, CAT 5 wing |
Splitter/Wing Gearbox Rating (hp) |
275 / 225 *Gearbox horsepower ratings listed are based on Woods’ field testing |
Output Shaft Diameter (in) |
3 |
Tongue Weight (lbs) |
2,700 |
Wheel Options |
15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; 25 and 27 in. severe-duty Ag foam-filled, and 29 in. used aircraft |
Gearbox Warranty (yrs) |
10 |
Options |
Double row chain shielding; tandem spring arm suspension; pintel ring hitch; shredding kit; deck rings; spring-loaded wing lock-ups for narrow (118 Inches) transport width; LED lights |
Suspension |
Spring-loaded axles |
Blade Overlap (in) |
6 |
Blade Dimensions (in) |
.5 x 4 |
Cutting Area Shielding |
Standard chain shielding |
Structure Warranty |
2 years |

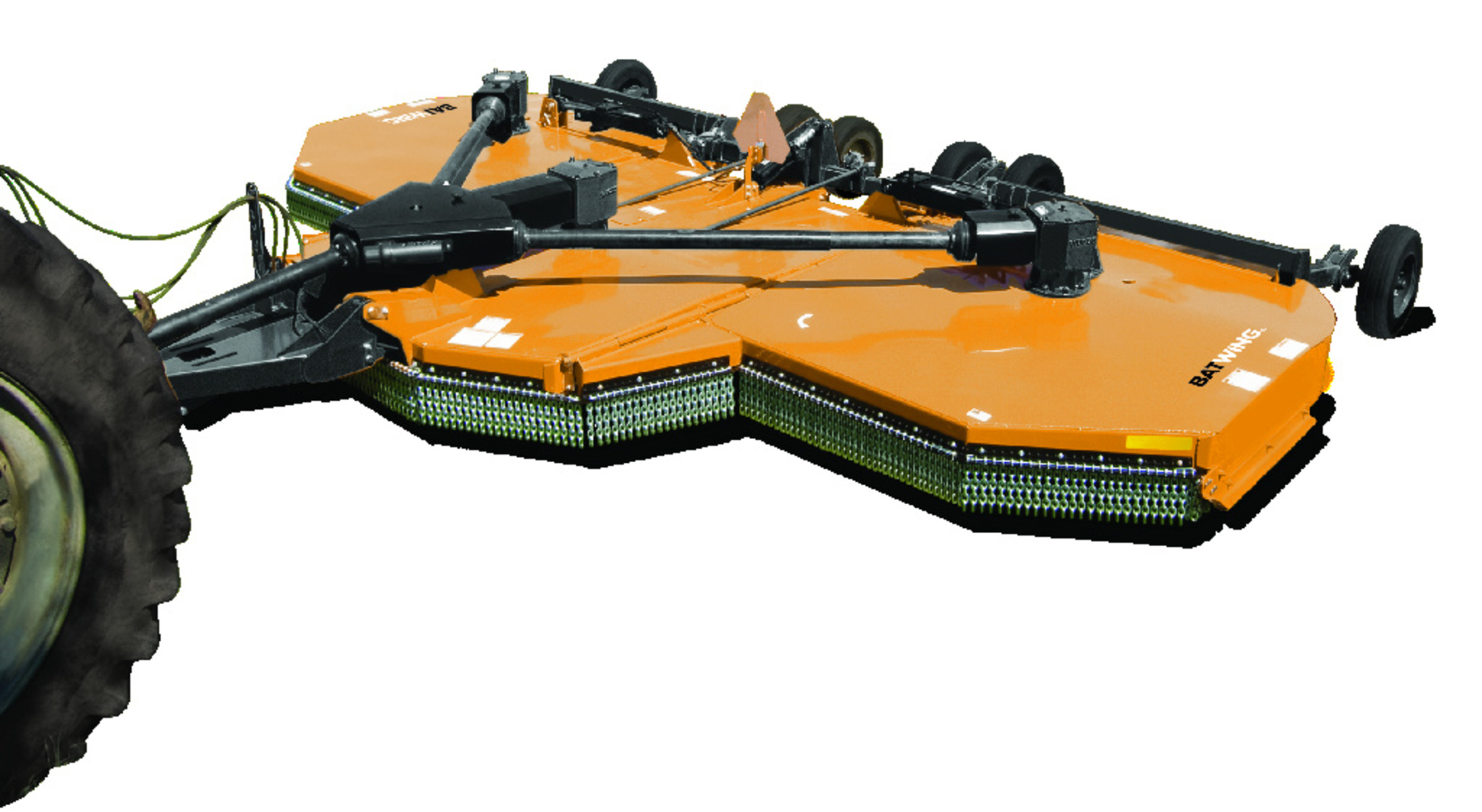

BW20.71
- Ideal for professional and contract cutting of heavy brush and trees up to 4 inches in diameter
- Hinged metal gearbox shields open easily for maintenance
- A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
- Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
- Heavy-duty skid shoes prevent gouging and protect the deck
- Strategically placed, welded baffles cut and distribute debris evenly
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Specifications
