Tractor Engine (HP) |
14-25 |
---|---|
Tractor Hitch |
Limited CAT 1 and CAT 1 |
Parking Stand |
Standard |
Tractor PTO Speed (rpm) |
540 |
Auger (diameter x length) (in) |
6, 9, 12 x 36 |
Auger Extension (in) |
Optional (12) |
Positioning Handle |
Standard |
Gearbox Warranty |
6 year limited |

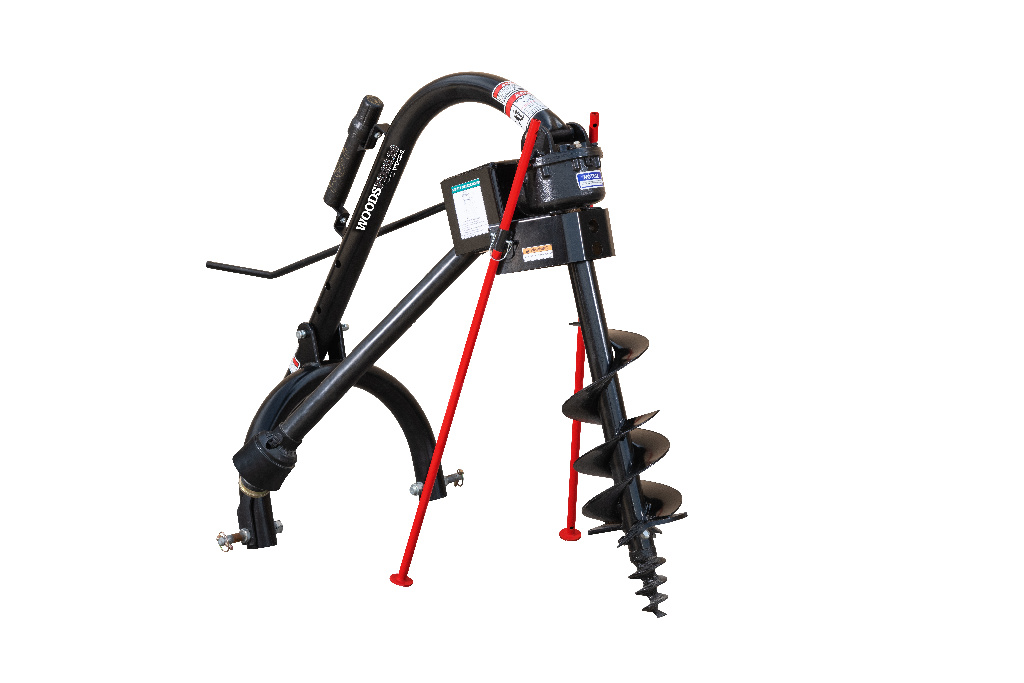

PD25.20
- Choose from 6, 9 and 12-inch diameter augers, length is 36 inches
- Tractor HP range: 14-25 hp
- Three-point hitch: CAT 1 and Limited CAT 1
- Four boom positions to fit a greater range of tractors
- Parking stands for storage and stability during hook-up; standard on all models
- Positioning handle to easily guide auger into place; standard on all models
- Shear bolt protected PTO (540 rpm) helps prevent damage to drive components
Specifications
Downloads
Tractor Compatibility
Tractor Make | Tractor Model |
---|---|
Tractor Make | Tractor Model |
Loading... |
WARNING! Some images may show safety shields removed to provide a better view. Equipment should never be operated with any safety shield removed. Some machines may be shown with optional equipment. Always operate machines in accordance with supplied operator’s manuals. ©2024 Woods Equipment Company. All rights reserved. WOODS and Woods logo are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company are the property of their respective companies or mark holders. Specifications subject to change without notice.
