| Tractor PTO HP |
50-200 |
|---|---|
| Tractor Hitch |
CAT 2 and 3 / clevis |
| Cutting Height Range (in) |
2 to 12 |
| Cutting Capacity Diameter (in) |
3 |
| Cutting Width (in) |
96 |
| Blade Tip Speed (fpm) |
540 rpm: 14,886 |
| Weight (lbs) |
2,335 |
| Deck Thickness (in) |
.135 (10 ga) |
| Side Frame Depth (in) |
13 |
| Gearbox Warranty |
6 years |
| Overall Width /Length (in) |
103 x 122 |
| Gearbox HP |
205 center, 160 spindle *Gearbox horsepower ratings listed are based on field testing. |
| Blade Dimensions (in) |
.5 x 4 |
| Quick-hitch Compatible |
No |
| Wheel Selection |
21 in laminated |
| Optional Dual Wheels – Pull-type |
No |

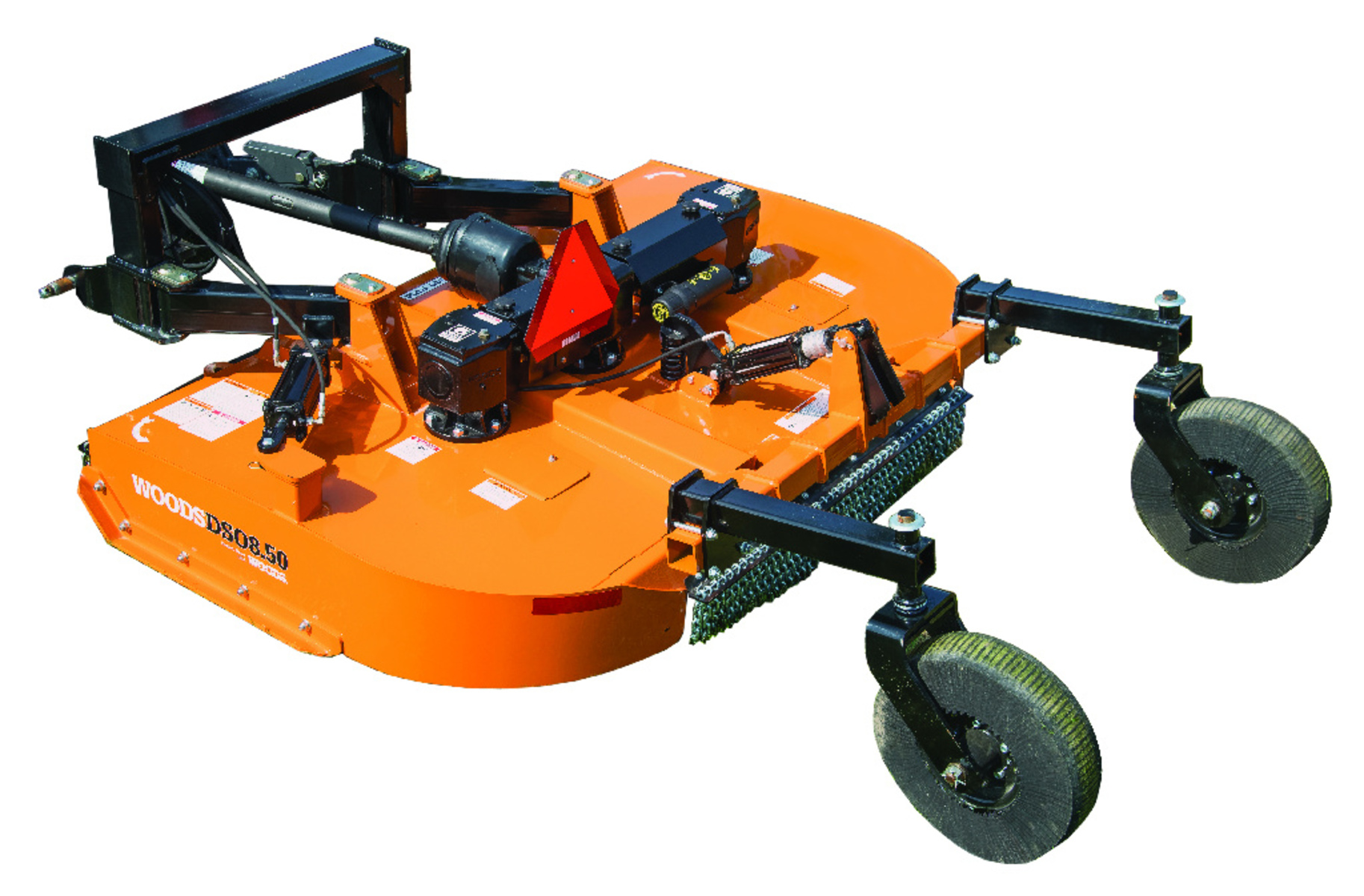

DSO8.50
- Cuts brush up to 3 inches in diameter
- Variable wheel spacing
- Hydraulic variable offset 21 inches to the right or 5 inches left
- Ideal for orchards, tree-lined fields and any setting with overhangs
- 96-inch semi-mounted dual-spindle rotary cutter
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
