Rotary Tillers

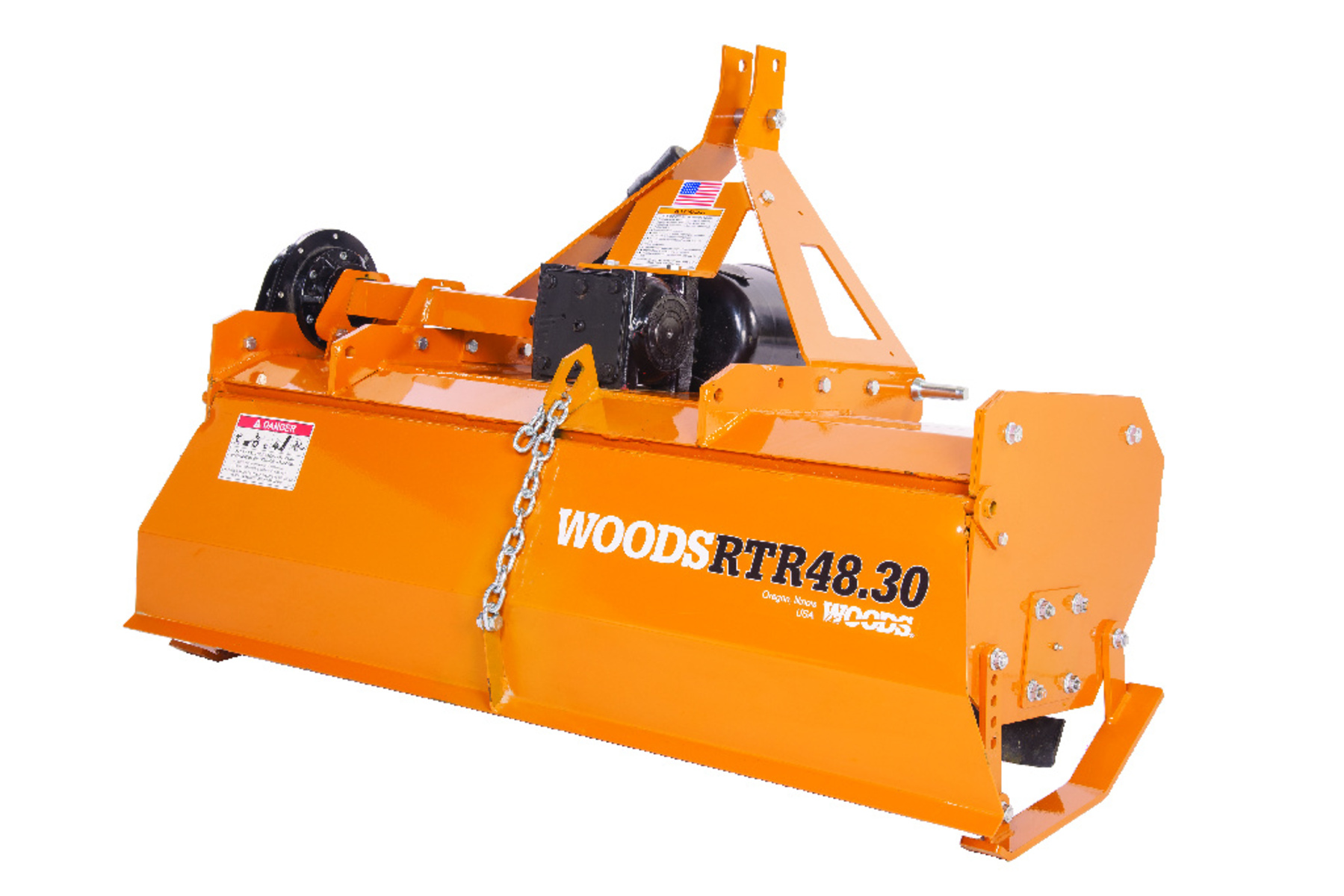

RT48.30
Standard Plus
Tackle Tough Conditions
Woods Exclusive tiller blade mounting feature keeps blades from coming loose in the field. Heat-treated, C-shaped tines penetrate deep, even in thick residue and loose, compacted or rocky soil.
Optimize Your Seed Bed
Every Woods tiller can be factory configured
to forward or reverse rotation to best match your planting application, save time, and optimize your seedbed.
Unmatched Gearbox PROTECTION
6-year warranty including parts, labor, and seals.
Read More
Additional Features
- Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
- Robust Gear-Driven Side Drive provides years of reliable service and requires far less maintenance than chain-driven units.
- Tapered Tailgate removes furrow for a finished seedbed.
- Fixed Offset Tiller Width covers tire tracks with each pass.
- Adjustable Skid Shoes provide easy depth control.
Backed by a 6-year warranty including parts, labor, and seals.
Specifications
| Product Tier |
Standard Plus |
|---|---|
| Tractor PTO HP |
15-35 |
| Tractor Hitch |
Limited CAT 1 / CAT 1 |
| Working Width (in) |
47 |
| Overall Width (in) |
57 |
| Weight (lbs) |
502 |
| Maximum Tilling Depth (in) |
7 |
| Drive Type |
Gearbox |
| Number of Tines / Number of Flanges |
24 / 6 |
| Number of Tines per Flange |
4 C-type |
| Rotor Speed (rpm) |
210 |
| Tractor PTO Speed (rpm) |
540 |
| PTO Driveline Protection |
Slip clutch |
| Gearbox Housing |
Heavy-duty cast iron |
| Gearbox Drain Plug |
Yes |
| Quick-hitch Compatible |
Yes |
| Parking Stand |
Standard |
| Woods C® | |
| Gearbox Warranty |
6 years |
