Backhoes

Watch video
Click to enlarge
Home Products Groundbreaker® Backhoes BH100

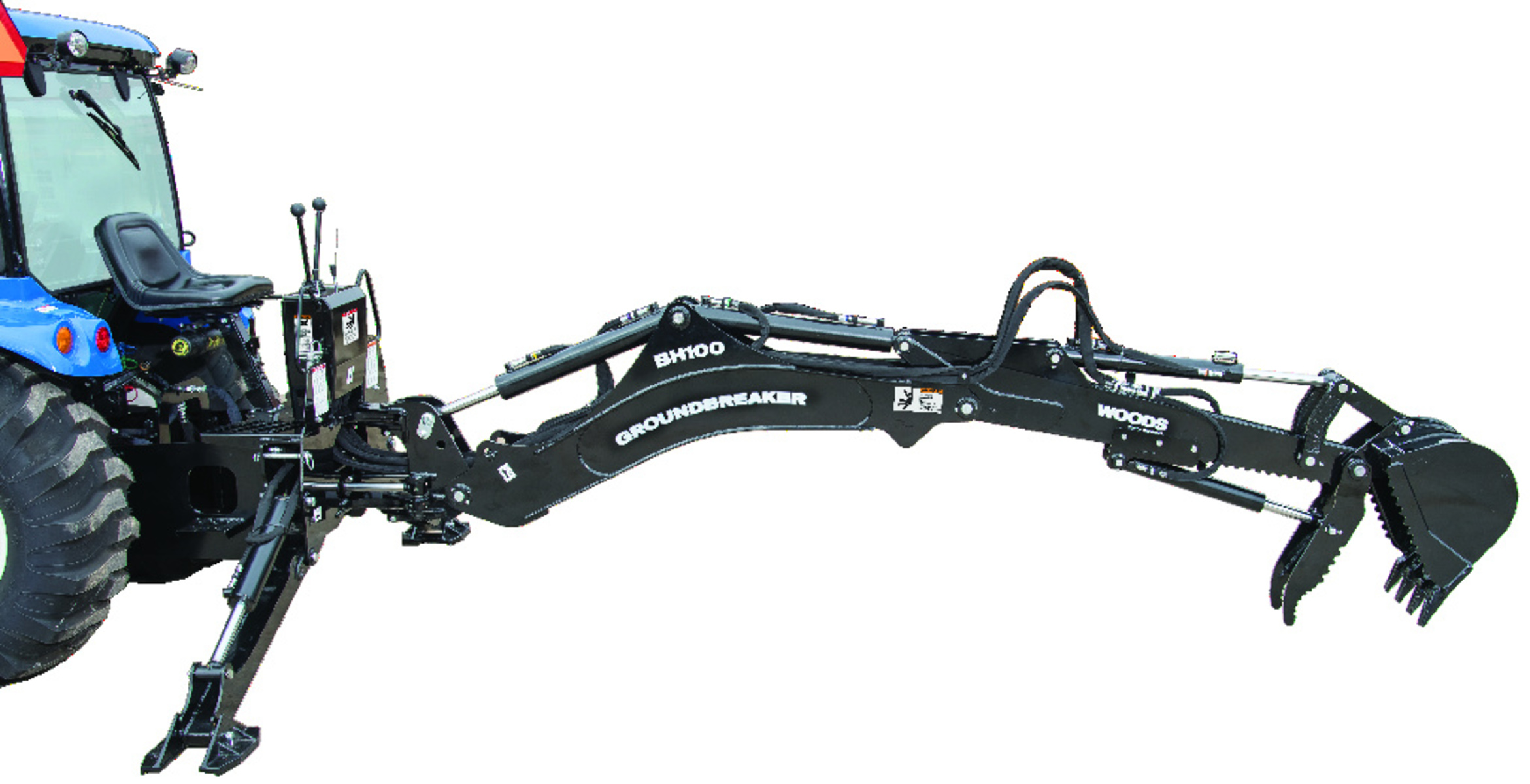

BH100

  • Curved boom offers better visibility and reaches over obstacles with little repositioning
  • Extra-long reach and digging depths saves time repositioning
  • High digging forces powers through hard, rocky, root-fill ground
  • Saw-tooth edges on thumb, dipper and bucket can grip and rip
  • Optional mechanical or hydraulic thumb add versatility
  • Sub-frame or 3-point hitch mounts are compatible with most loaders and undermount mowers
  • Two-year limited warranty covers your tractor
Add to Compare
Add to Quote
This product is already in quote request list.
View Quote Request
SKU: BH100 Category: Groundbreaker® Backhoes
Share:
  • Specifications
  • Downloads
Specifications
Tractor PTO HP

40-100

Maximum Digging Depth

120 (10 ft)

Thumb

Optional mechanical or hydraulic

Digging Depth - 8 ft Flat Bottom (in)

102

Reach from Swing Pivot (in)

161

Loading Height (in)

100

Loading Reach (in)

70

Transport Height

104

Transport Length (in)

55

Approx. Weight - Frame Only (lbs)

1,320

Swing Arc (degrees)

180

Bucket Rotation (degrees)

180

Stabilizer Spread - Up (transporting) (in)

71

Stabilizer Spread - Down (operating) (in)

102

Relief Pressure (psi)

2,465

Bucket Digging Force (lbs)

4,600

Dipperstick Digging Force (lbs)

2,720

Trenching Bucket Widths (in)

12, 15, 18, 24

Flip-Over Stabilizer Pads

Standard

Stabilizer Street Pads

Optional

PTO Pump Kit

Optional

Cemetery / Bellhole Bucket

36

Ditching Bucket

36

2-Cylinder Swing

Yes

Warranty

2 year limited, including the tractor

Downloads

Product Brochure Manual

Related products

BH65

BH75
