| Tractor PTO HP |
40-200 |
|---|---|
| Tractor Hitch |
Pivoting clevis |
| Cutting Height Range (in) |
2 to 12 |
| Cutting Capacity Diameter (in) |
3 |
| Cutting Width (in) |
96 |
| Blade Tip Speed (fpm) |
540 rpm: 14,886 |
| Weight (lbs) |
2,238 |
| Deck Thickness (in) |
.135 (10 ga) |
| Side Frame Depth (in) |
13 |
| Gearbox Warranty |
6 years |
| Overall Width /Length (in) |
103 x 150 (25 in tires) |
| Gearbox HP |
205 center, 160 spindle *Gearbox horsepower ratings listed are based on field testing. |
| Blade Dimensions (in) |
.5 x 4 |
| Quick-hitch Compatible |
Yes |
| Wheel Selection |
Laminated, severe duty new ag, foam filled new ag, 15 in rims, used aircraft |
| Optional Dual Wheels – Pull-type |
Yes |

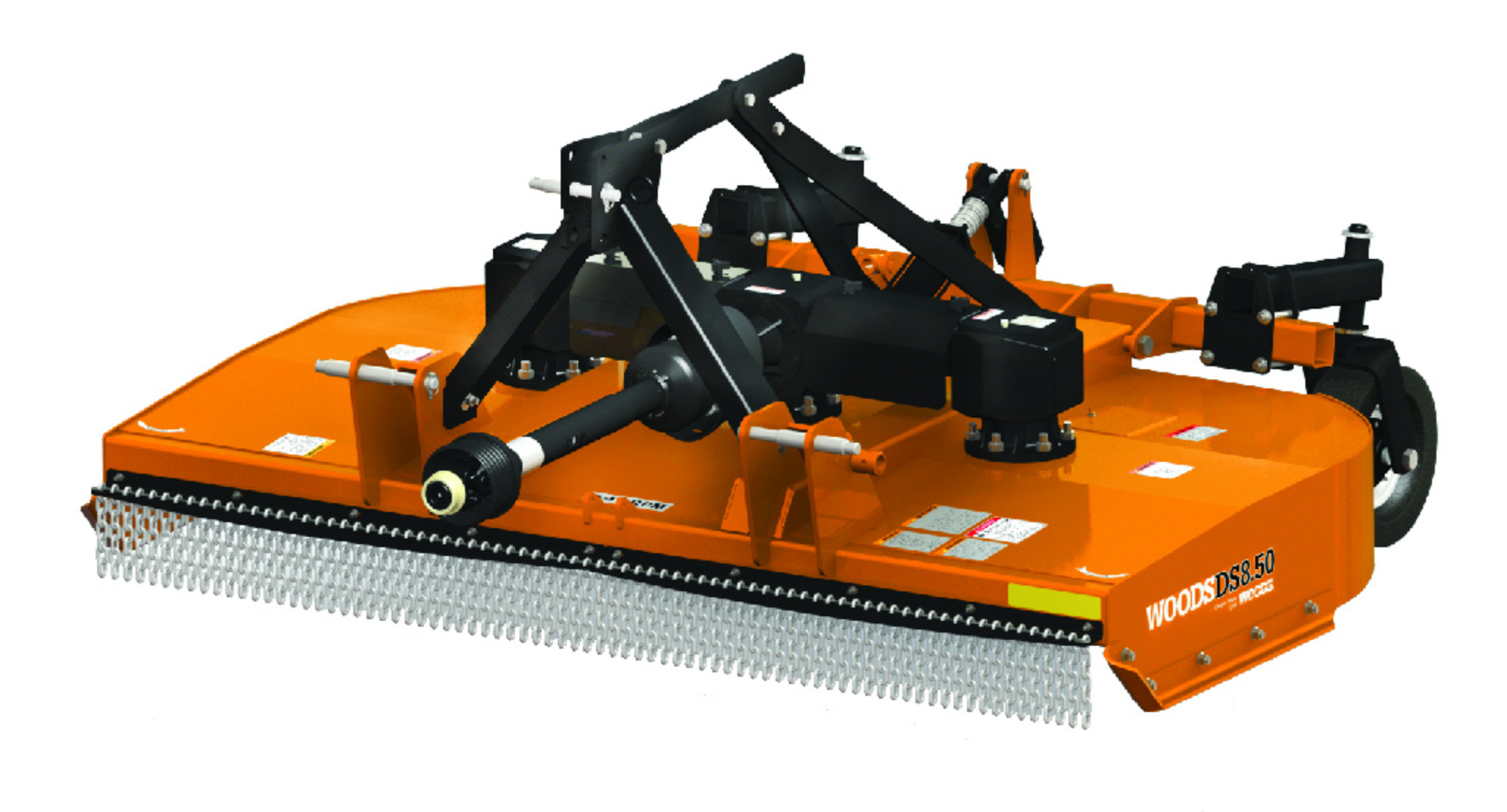

DS8.50
- Tubular front frame – Greater strength and rigidity for towing
- Easy to replace Quick-change blade pins under the deck reduce down time
- Hydraulic tail wheel offers a variable cutting range
- Cuts brush up to 3 inches in diameter
- Variable wheel spacing
- New, advanced gearbox seal technology, designed for harsh conditions and reduces leaks and downtime
- 96-inch pull-type dual-spindle rotary cutter
- NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
